HEADLIGHT(S)

VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA

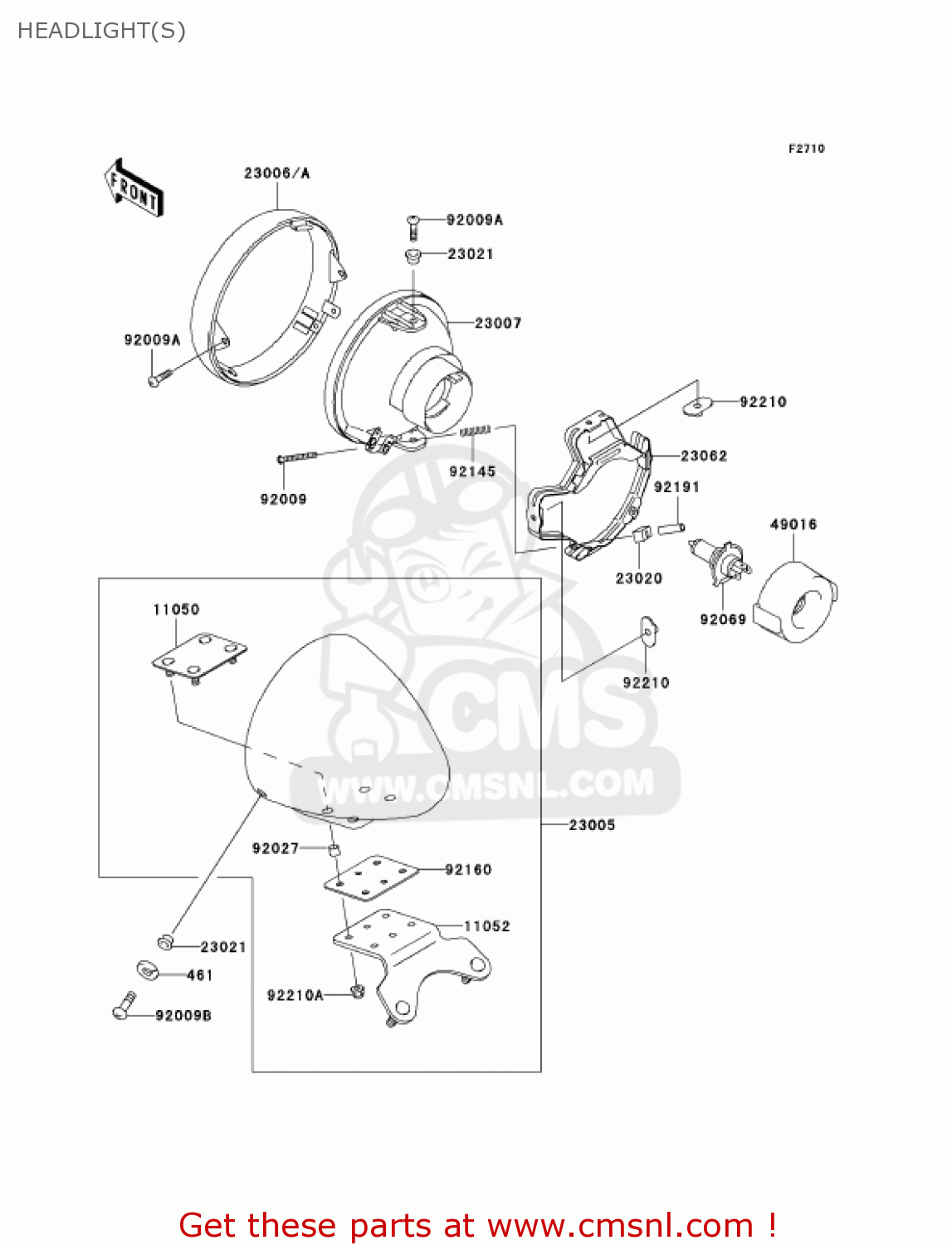

Headlight(s) diagram VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA

HEADLIGHT(S) VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
HEADLIGHT(S) VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
HEADLIGHT(S) VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
461
461S0500
ref: 461
WASHER-SPRING,5MM
461S0500
€ 0.50
11050
110501978
ref: 11050
BRACKET,HEAD LAMP BOD
€ 44.00
11052
110521057
ref: 11052
BRACKET,HEAD LAMP BOD
€ 45.50
23005
230051186
ref: 23005
BODY-COMP-HEAD LAMP
230051186
€ 213.50
23006
230060001
ref: 23006
RIM-LAMP
230060001
€ 75.50
23007
230071359
ref: 23007
LENS-COMP,HEAD LAMP
230071359
€ 148.00
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
23021
23021010
ref: 23021
WASHER
23021010
€ 2.50
23062
230621131
ref: 23062
BRACKET-COMP,HEAD LAM
€ 40.00
49016
490161203
ref: 49016
COVER-SEAL,SOCKET
490161203
€ 12.00
92009
920091816
ref: 92009
SCREW
920091816
€ 3.50
92009A
920091879
ref: 92009A
SCREW,5X16
920091879
€ 1.00
92009B
920091947
ref: 92009B
SCREW,5MM
920091947
€ 2.00
92027
92027103
ref: 92027
COLLAR
92027103
€ 2.50
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92145
921451268
ref: 92145
SPRING,HEAD LAMP LENS
921451268
€ 3.00
92160
921601960
ref: 92160
DAMPER
€ 6.00
92191
921911217
ref: 92191
TUBE
921911217
€ 1.50
92210
922101060
ref: 92210
NUT
922101060
€ 1.50
92210A
922101252
ref: 92210A
NUT,CAP,6MM
922101252
€ 1.00
