Genuine VN Kawasaki Parts delivered quickly!


REAR BRAKE (R4/R5)

VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA

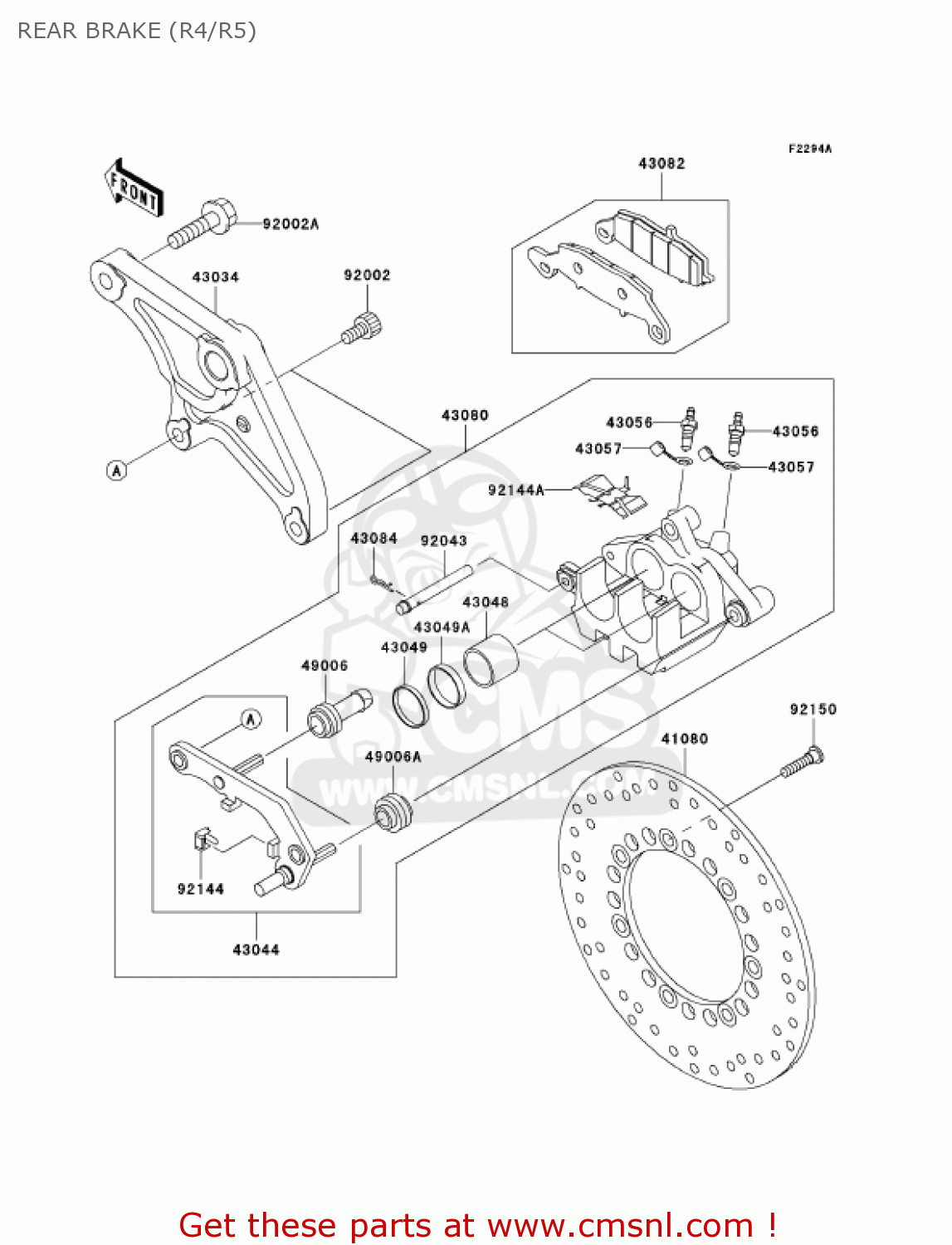

Rear brake (r4/r5) diagram VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA

REAR BRAKE (R4/R5) VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
REAR BRAKE (R4/R5) VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
REAR BRAKE (R4/R5) VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
41080
410800061CM
ref: 41080
DISC,SILVER
€ 170.50
43034
430341154
ref: 43034
HOLDER-BRAKE,REAR CAL
€ 100.50
43044
430441125
ref: 43044
HOLDER-COMP-CALIPER,R
€ 149.00
43048
430481073
ref: 43048
PISTON-CALIPER
430481073
€ 47.50
43049
430491068
ref: 43049
PACKING (NAS)
430491068
€ 6.50
43049A
430491092
ref: 43049A
PACKING (NAS)
430491092
€ 7.50
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43080
430805016GN
ref: 43080
CALIPER-SUB-ASSY,RR,S
€ 334.00
43082
430821265
ref: 43082
PAD-ASSY-BRAKE (NAS)
€ 57.00
43084
43084003
ref: 43084
CLIP, PAD
43084003
€ 2.50
49006
490061054
ref: 49006
BOOT,CALIPER
490061054
€ 8.00
49006A
490061095
ref: 49006A
BOOT,CALIPER
490061095
€ 4.50
92002
920021713
ref: 92002
BOLT,SOCKET,10X17
920021713
€ 4.50
92002A
920021969
ref: 92002A
BOLT,FLANGED,12X40
920021969
€ 6.00
92043
920431489
ref: 92043
PIN,PAD
920431489
€ 4.50
92144
921441831
ref: 92144
SPRING,STOPPER
921441831
€ 3.50
92144A
921441844
ref: 92144A
SPRING,PAD,RH
921441844
€ 7.00
92150
921501771
ref: 92150
BOLT
921501771
€ 3.00
