FRONT WHEEL

VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA

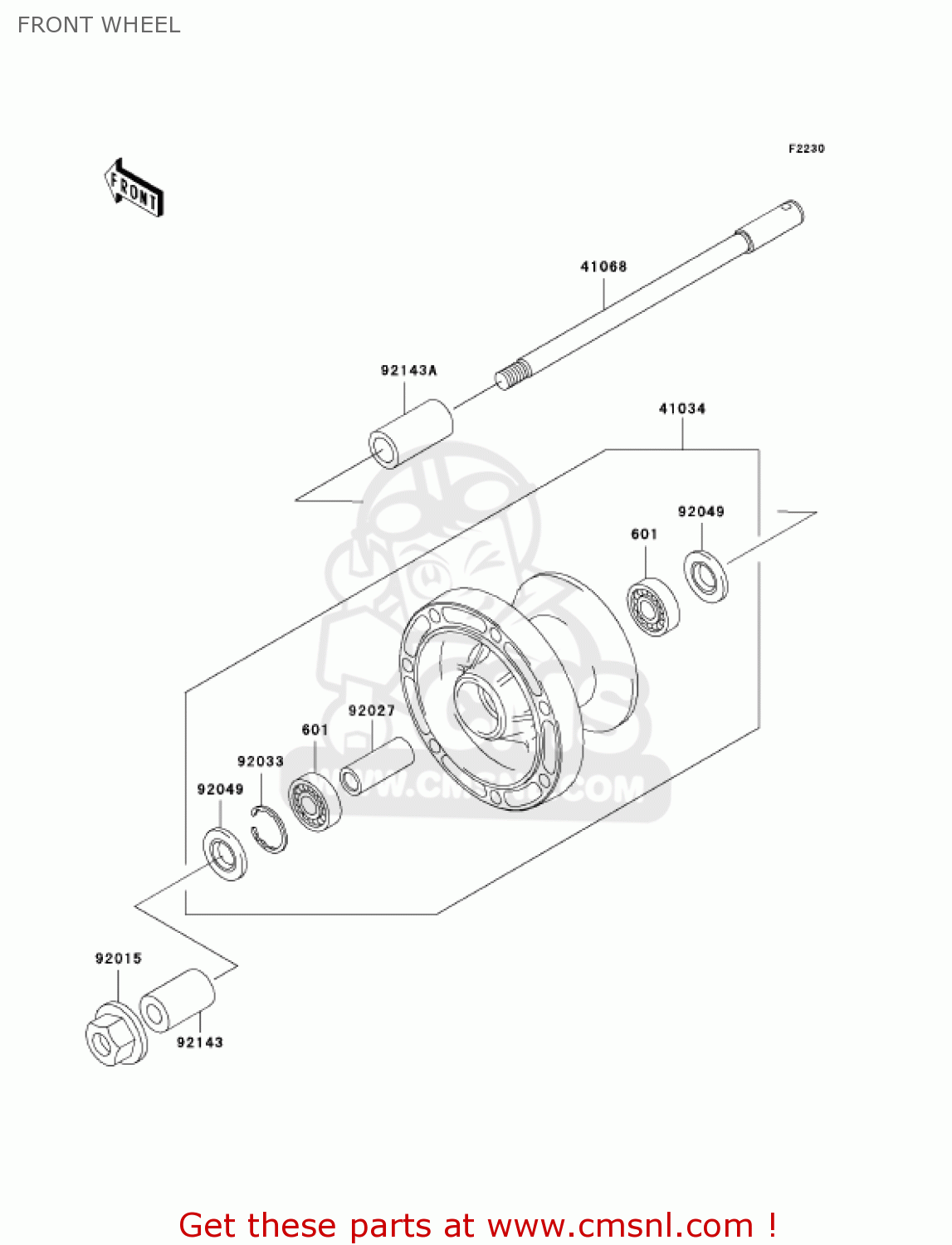

Front wheel diagram VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

601

601B6004UU
ref: 601

BEARING-BALL,#6004UUC

€ 27.00

41034

410341266
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 462.00

41068

410681378
ref: 41068

AXLE,FR

€ 61.50

92015

920151993
ref: 92015

NUT,FLANGED,18MM

€ 6.50

92027

920271752
ref: 92027

COLLAR,20.2X28X70

€ 13.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92143

921431837
ref: 92143

COLLAR,FR AXLE,LH,L=4

€ 21.50

92143A

921431854
ref: 92143A

COLLAR,FR AXLE,RH,L=5

€ 23.00
