CRANKSHAFT

VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA

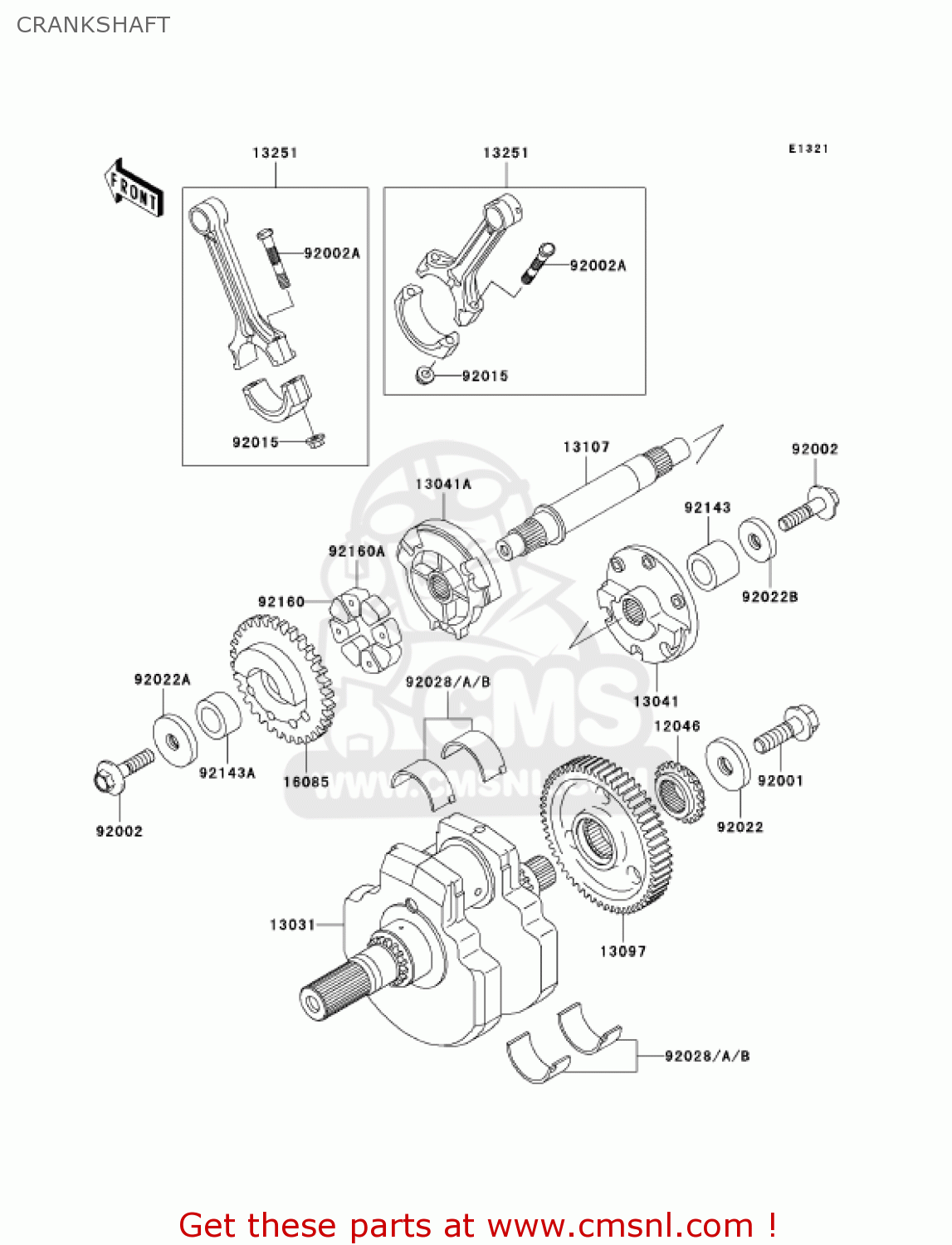

Crankshaft diagram VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA

CRANKSHAFT VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
CRANKSHAFT VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
CRANKSHAFT VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
12046
120461103
ref: 12046
SPROCKET,WATER PUMP
120461103
€ 72.50
13031
130311457
ref: 13031
CRANKSHAFT-COMP
€ 1,722.00
13041
130411089
ref: 13041
BALANCER,RH
130411089
€ 116.00
13041A
130411093
ref: 13041A
BALANCER,LH
130411093
€ 146.00
13097
130971369
ref: 13097
GEAR-PRIMARY SPUR,56T
€ 110.50
13107
131071524
ref: 13107
SHAFT,BALANCER
€ 220.50
13251
132511080EE
ref: 13251
ROD-ASSY-CONNECTING,E
€ 239.00
16085
160851286
ref: 16085
GEAR,BALANCER
€ 282.50
92001
920011146
ref: 92001
BOLT,12X40
920011146
€ 6.50
92002
920021296
ref: 92002
BOLT,10X40
920021296
€ 7.00
92002A
920021896
ref: 92002A
BOLT,CONNECTING ROD
920021896
€ 7.50
92015
920151643
ref: 92015
NUT,CONNECTING ROD
920151643
€ 6.00
92022
920221904
ref: 92022
WASHER,GENERATOR
920221904
€ 9.50
92022A
920221905
ref: 92022A
WASHER
€ 9.50
92022B
920221906
ref: 92022B
WASHER
920221906
€ 9.50
92028
920281474
ref: 92028
BUSHING,CONNECTING RO
920281474
€ 14.50
92028A
920281475
ref: 92028A
BUSHING,CONNECTING RO
920281475
€ 14.50
92028B
920281476
ref: 92028B
BUSHING,CONNECTING RO
920281476
€ 14.50
92143
921431093
ref: 92143
COLLAR,20X30X24
€ 23.50
92143A
921431821
ref: 92143A
COLLAR,20X31X16
€ 26.00
92160
921601725
ref: 92160
DAMPER
921601725
€ 5.50
92160A
921601726
ref: 92160A
DAMPER
921601726
€ 5.50
