THROTTLE
VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR

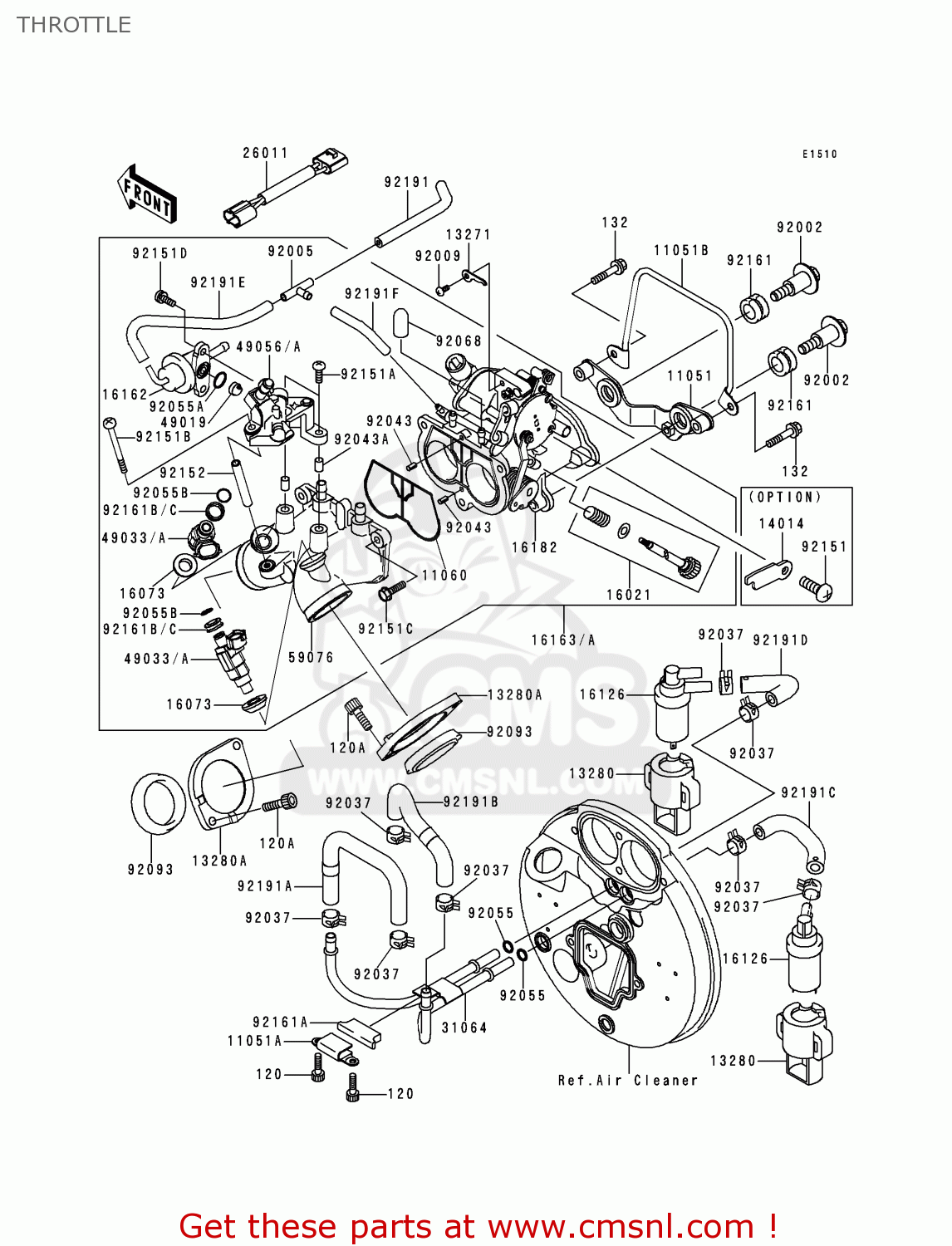

Throttle diagram VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR
THROTTLE VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
11051
110511333
ref: 11051
BRACKET
€ 27.50
11051A
110511345
ref: 11051A
BRACKET
€ 4.00
11051B
110511471
ref: 11051B
BRACKET,HIGH TENSHION
€ 39.00
11060
110601928
ref: 11060
GASKET,THROTTLE BODY (NAS)
€ 32.00
13271
132711314
ref: 13271
PLATE,STARTER CABLE
€ 1.50
13280
132801139
ref: 13280
HOLDER
€ 18.50
13280A
132801154
ref: 13280A
HOLDER
€ 20.00
14014
140141142
ref: 14014
PLATE-POSITION,25KW
€ 9.00
16021
160211227
ref: 16021
SCREW-THROTTLE STOP
€ 70.50
16073
160731119
ref: 16073
INSULATOR
€ 15.00
16126
161261372
ref: 16126
VALVE
€ 53.50
16162
161621052
ref: 16162
REGULATOR-FUEL
€ 164.00
16163A
161631101
ref: 16163A
THROTTLE-ASSY
€ 2,234.00
16182
161821002
ref: 16182
BODY-THROTTLE
€ 836.50
26011
260111707
ref: 26011
WIRE-LEAD
€ 23.50
31064
310641227
ref: 31064
PIPE-COMP
€ 37.50
49019
490193707
ref: 49019
FILTER-FUEL,STRAINER
€ 7.00
49033A
490331057
ref: 49033A
NOZZLE-INJECTION
€ 131.00
49056A
490561055
ref: 49056A
PIPE-INJECTION
€ 125.50
59076
590761110
ref: 59076
MANIFOLD-INTAKE
€ 358.00
92002
920021595
ref: 92002
BOLT,HEAD COVER
€ 8.50
92005
920051366
ref: 92005
FITTING
€ 22.50
92009
920091903
ref: 92009
SCREW
€ 1.50
92037
920371181
ref: 92037
CLAMP
€ 1.00
92043
920431600
ref: 92043
PIN,THROTTLE BODY
€ 2.00
92043A
920431601
ref: 92043A
PIN,DELIVERY PIPE
€ 2.00
92055
92055029
ref: 92055
RING-O,7.8X3.5
€ 2.50
92055A
920551620
ref: 92055A
RING-O,FUEL REGULATOR
€ 2.50
92055B
920551622
ref: 92055B
RING-O,INJECTION NOZZ
€ 1.50
92068
92068006
ref: 92068
RUBBER PLUG
€ 2.50
92093
920931484
ref: 92093
SEAL
€ 15.00
92151
921511528
ref: 92151
BOLT
€ 3.00
92151A
921511585
ref: 92151A
BOLT,5X20
€ 1.50
92151B
921511586
ref: 92151B
BOLT,5X75
€ 2.00
92151C
921511587
ref: 92151C
BOLT,THROTTLE BODY
€ 2.50
120
120S0510
ref: 120
BOLT-SOCKET
€ 0.50
120A
120Z0620
ref: 120A
BOLT-SOCKET,6X20
€ 3.00
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
92151D
921511588
ref: 92151D
BOLT,6X12
€ 1.50
92152
921521206
ref: 92152
COLLAR,DELIVERY PIPE
€ 7.00
92161
921611058
ref: 92161
DAMPER
€ 3.00
92161A
921611062
ref: 92161A
DAMPER
€ 4.50
92161B
921611083
ref: 92161B
DAMPER,INJECTION NOZZ
€ 5.50
92191
921911298
ref: 92191
TUBE,THROTTLE-BOOST
€ 4.00
92191A
921911365
ref: 92191A
TUBE,REAR PORT,BLUE
€ 7.50
92191B
921911366
ref: 92191B
TUBE,FRONT PORT,RED
€ 8.00
92191C
921911367
ref: 92191C
TUBE,REAR VALVE,RED
€ 4.50
92191D
921911368
ref: 92191D
TUBE,FRONT VALVE,BLUE
€ 4.50
92191E
921911402
ref: 92191E
TUBE,L=130
€ 3.50
92191F
921911403
ref: 92191F
TUBE,L=55
€ 2.50
