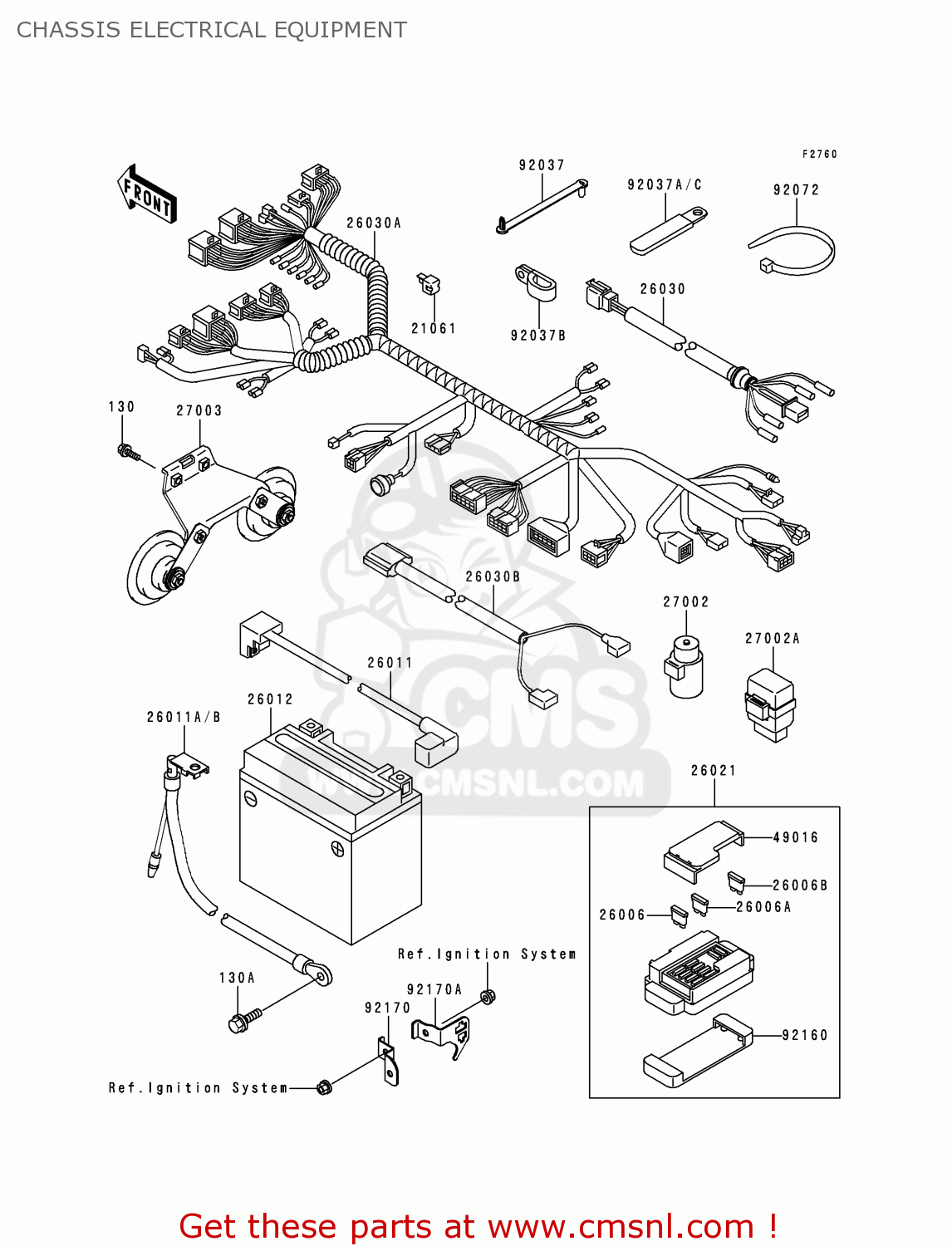

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130J0630
ref: 130

BOLT FLANGED,6X30,BLC

€ 2.50

130A

130V0610
ref: 130A

BOLT-FLANGED,6X10

€ 0.50

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26006B

260061069
ref: 26006B

FUSE

€ 3.50

26011

260111703
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 22.00

26011B

260111761
ref: 26011B

WIRE-LEAD,BATTERY(-)

€ 22.00

26012

260121371
ref: 26012

BATTERY,MF,FTZ16-BS,1

€ 165.50

26021

260211095
ref: 26021

JUNCTION BOX

€ 135.50

26030

260301633
ref: 26030

HARNESS,TAIL

€ 88.00

26030A

260301634
ref: 26030A

HARNESS,MAIN

€ 539.00

26030B

260301636
ref: 26030B

HARNESS,OIL PRESSURE&

€ 20.00

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27002A

270021111
ref: 27002A

RELAY-ASSY,SIGNAL LAM

€ 95.50

27003

270031406
ref: 27003

HORN

€ 106.50

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371290
ref: 92037

CLAMP,CARBURETOR

€ 4.50

92037A

920371539
ref: 92037A

CLAMP,L=45

€ 3.00

92037B

920371608
ref: 92037B

CLAMP

€ 5.50

92037C

920371993
ref: 92037C

CLAMP

€ 3.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92160

921601650
ref: 92160

DAMPER,JUNCTION BOX

€ 9.50

92170

921701699
ref: 92170

CLAMP,IGNITION SWITCH

€ 4.50

92170A

921701700
ref: 92170A

CLAMP,RR BRAKE SWITCH

€ 4.00
