BATTERY CASE

VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR

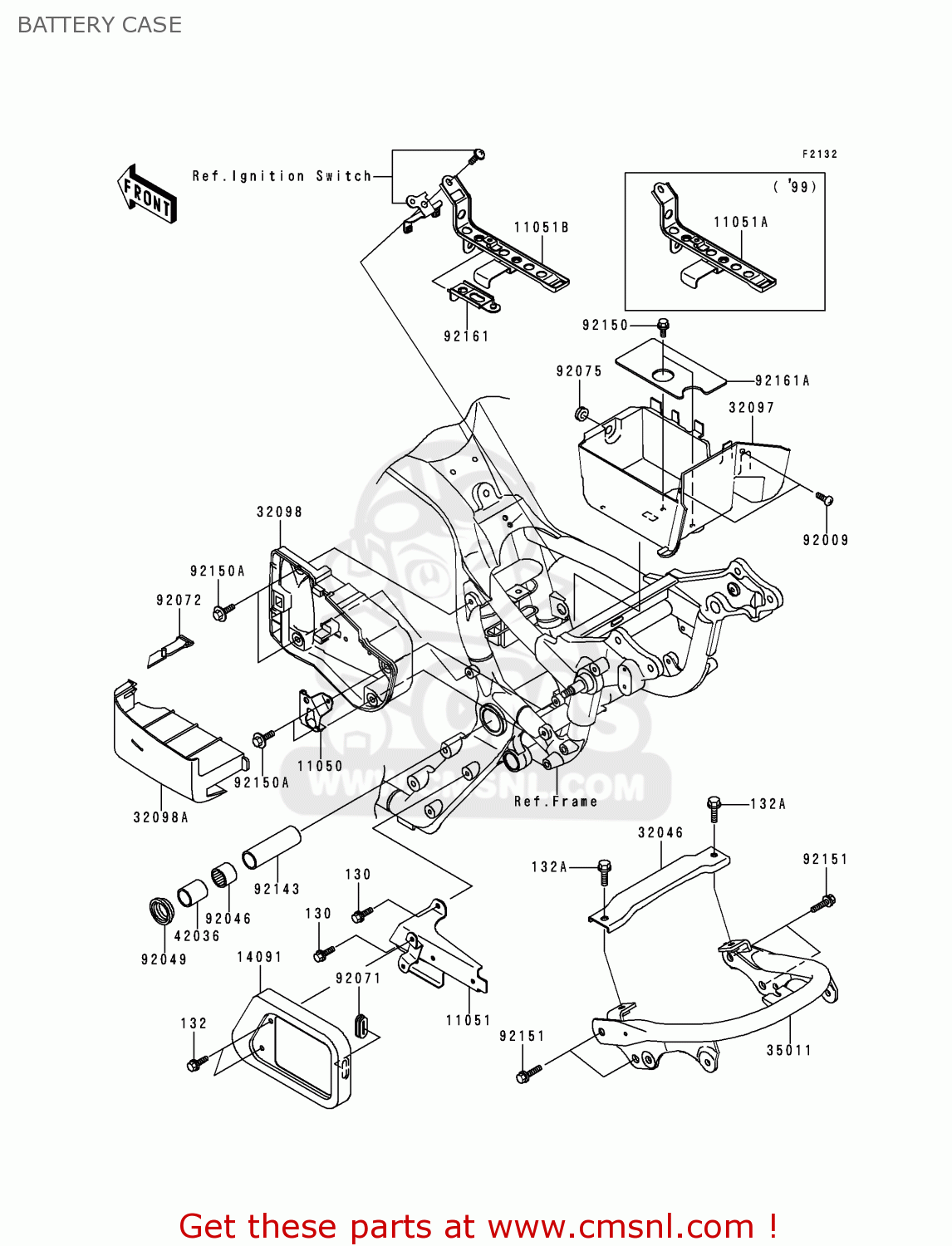

Battery case diagram VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR

BATTERY CASE VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR
BATTERY CASE VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR
BATTERY CASE VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
132A
132J0816
ref: 132A
BOLT-FLANGED-SMALL,8X
132J0816
€ 2.00
11050
110501958
ref: 11050
BRACKET,SIDE COVER LO
€ 15.00
11051
110511163
ref: 11051
BRACKET,REGULATOR
€ 45.50
11051B
110511798
ref: 11051B
BRACKET,BATTERY BAND
110511798
€ 20.50
14091
140911079
ref: 14091
COVER,REGULATOR
€ 34.00
32046
320461478
ref: 32046
BRACKET-SEAT
€ 14.50
32097
320971175
ref: 32097
CASE-BATTERY
€ 27.00
32098
320981125
ref: 32098
CASE-TOOL
€ 112.00
32098A
320981126
ref: 32098A
CASE-TOOL,COVER
€ 97.50
35011
350111968
ref: 35011
STAY,SEAT
€ 184.50
42036
420361330
ref: 42036
SLEEVE,L=45
420361330
€ 19.50
92009
920091402
ref: 92009
SCREW,6X10
920091402
€ 1.50
92046
920461202
ref: 92046
BEARING-NEEDLE,BM2824
920461202
€ 25.00
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92071
920711187
ref: 92071
GROMMET
920711187
€ 3.00
92072
920721331
ref: 92072
BAND,L=470
920721331
€ 16.50
92075
920751067
ref: 92075
DAMPER,SIDE COVER
920751067
€ 3.00
92143
921431878
ref: 92143
COLLAR,20.2X27X90
921431878
€ 22.50
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
92150A
921501198
ref: 92150A
BOLT
921501198
€ 2.50
92151
921511440
ref: 92151
BOLT,FLANGED,10X18
921511440
€ 2.50
92161
921611096
ref: 92161
DAMPER,BATTERY BAND
€ 7.00
92161A
921611097
ref: 92161A
DAMPER,BATTERY
921611097
€ 3.50
