RADIATOR
VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR

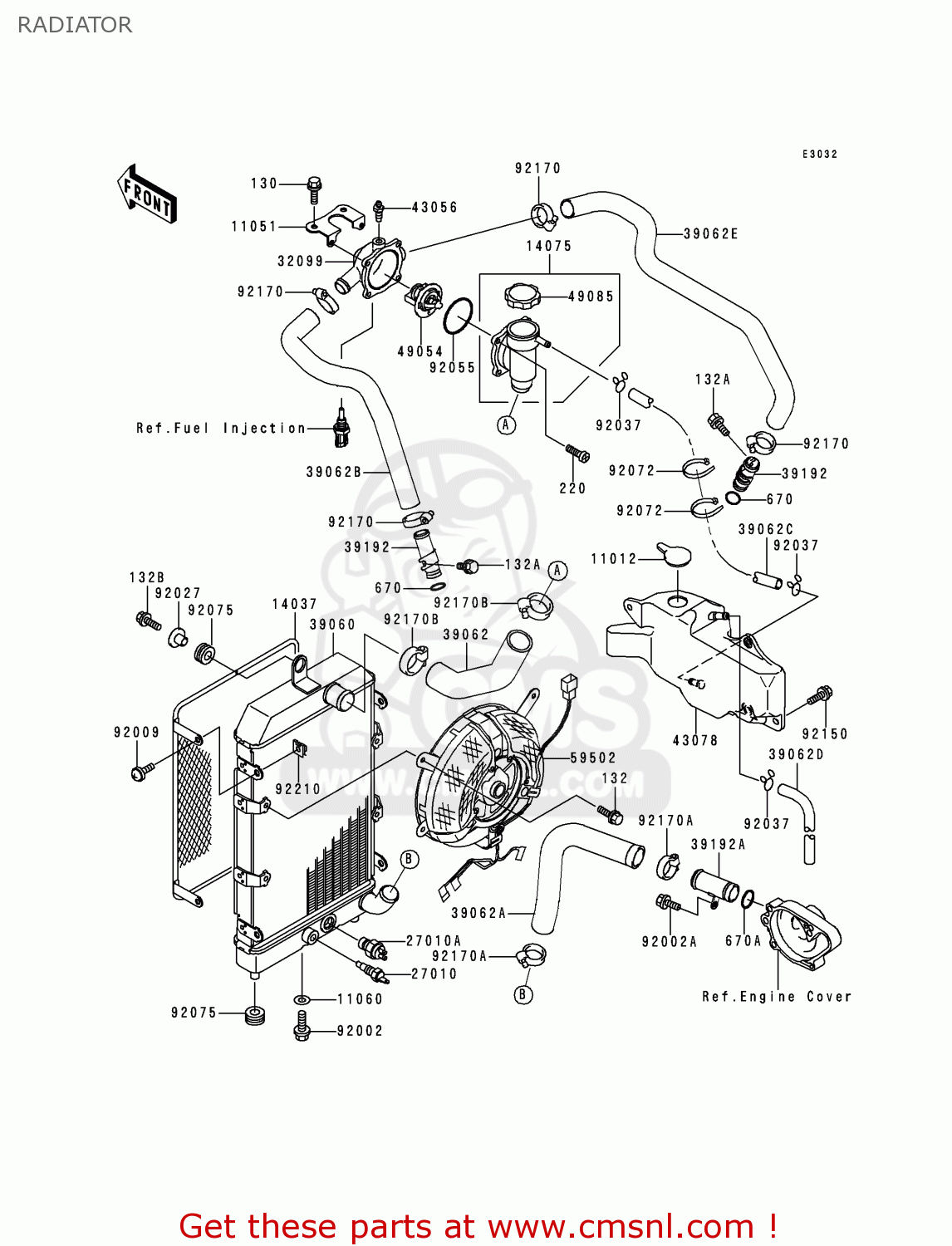

Radiator diagram VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR
RADIATOR VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
€ 1.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0625
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
11012
110121585
ref: 11012
CAP
€ 4.50
11051
110511535
ref: 11051
BRACKET,THERMOSTAT CA
€ 6.00
11060
110601767
ref: 11060
GASKET,DRAIN PLUG (NAS)
€ 2.00
14037
140371251
ref: 14037
SCREEN
€ 52.00
14075
140751068
ref: 14075
CAP-ASSY
€ 134.00
27010
270101305
ref: 27010
SWITCH
€ 60.00
27010A
270101364
ref: 27010A
SWITCH,FAN
€ 117.00
32099
320991201
ref: 32099
CASE,THERMOSTAT
€ 36.50
39060
390601165
ref: 39060
RADIATOR
€ 607.50
39062
390621696
ref: 39062
HOSE-COOLING,THERMO-R
€ 22.00
39062A
390621697
ref: 39062A
HOSE-COOLING,RADIATOR
€ 22.00
39062B
390621785
ref: 39062B
HOSE-COOLING,FR HEAD-
€ 20.00
39062C
390621796
ref: 39062C
HOSE-COOLING,THERMO-R
€ 13.50
39062D
390621814
ref: 39062D
HOSE-COOLING,OVERFLOW
€ 16.00
39062E
390621845
ref: 39062E
HOSE-COOLING,HEAD,RR-
€ 26.50
39192
391921094
ref: 39192
PIPE-WATER
€ 15.50
39192A
391921096
ref: 39192A
PIPE-WATER
€ 18.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43078
430781164
ref: 43078
RESERVOIR
€ 26.00
49054
490541067
ref: 49054
THERMOSTAT
€ 46.00
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
59502
595021127
ref: 59502
FAN-ASSY
€ 596.00
92002
920021311
ref: 92002
BOLT,FLANGED,10X10
€ 3.50
92002A
920021569
ref: 92002A
BOLT,6X12
€ 2.50
92009
920091402
ref: 92009
SCREW,6X10
€ 1.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92072
920721237
ref: 92072
BAND,L=250
€ 2.00
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
92150
921501392
ref: 92150
BOLT
€ 3.00
92170
921701032
ref: 92170
CLAMP,COOLING HOSE
€ 16.50
92170A
921701034
ref: 92170A
CLAMP,COOLING HOSE
€ 14.00
92170B
921701284
ref: 92170B
CLAMP,CABLE
€ 7.50
92210
922101125
ref: 92210
NUT
€ 3.00
670
670B2014
ref: 670
O RING,14MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
