METER(S)
VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR

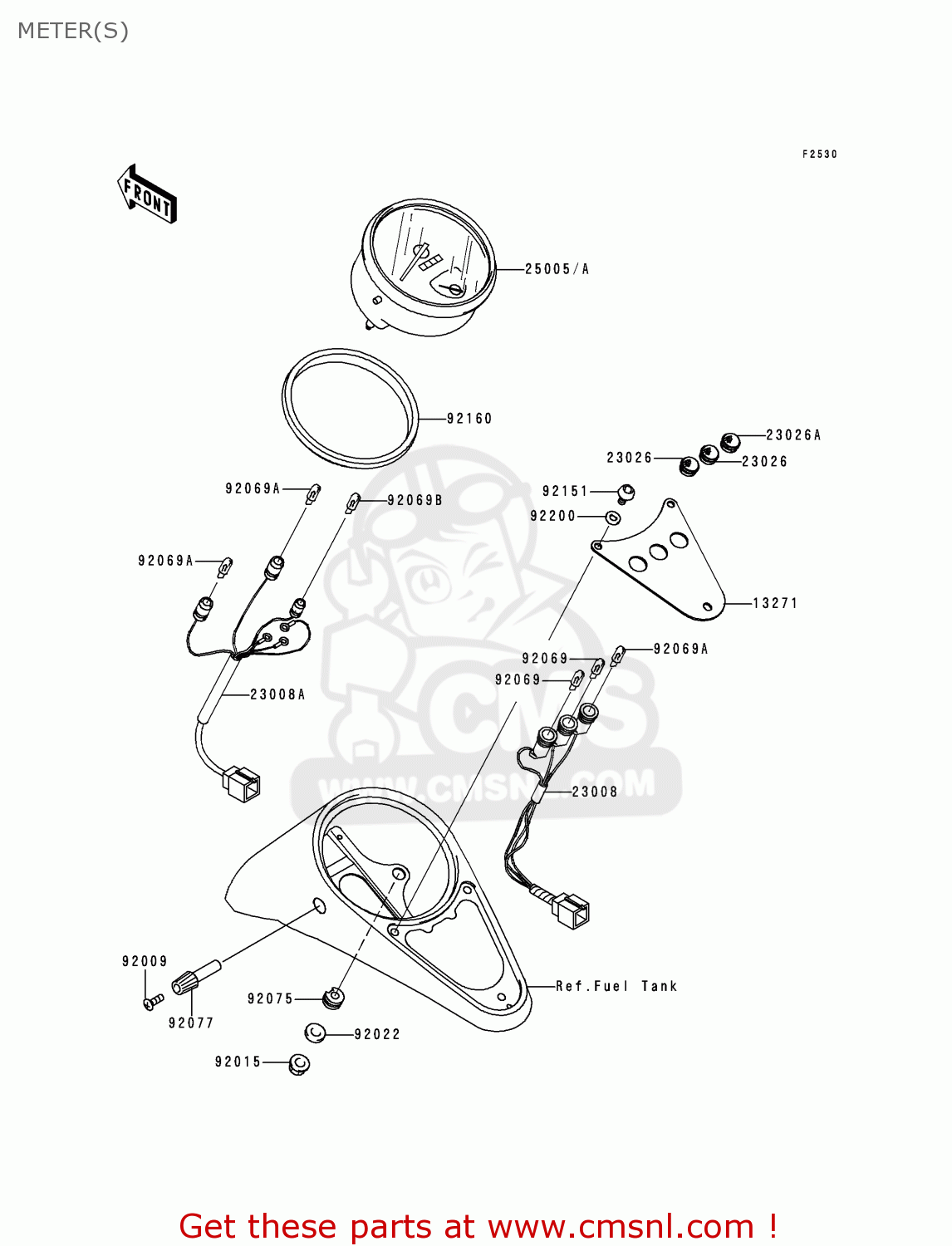

Meter(s) diagram VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR
METER(S) VN1500J2 VN1500 DRIFTER 2000 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
13271
132711142
ref: 13271
PLATE,PILOT LAMP
€ 38.00
23008
230081605
ref: 23008
SOCKET-ASSY,PILOT LAM
€ 24.00
23008A
230081613
ref: 23008A
SOCKET-ASSY,SPEEDOMET
€ 74.50
23026
230261171
ref: 23026
LENS,GREEN
€ 5.00
23026A
230261172
ref: 23026A
LENS,BLUE
€ 5.00
25005
250051654
ref: 25005
UK
SPEEDOMETER,MPH
€ 347.50
25005A
250051657
ref: 25005A
EUNR
SPEEDOMETER,KPH
€ 393.50
92009
920091799
ref: 92009
SCREW,3X8
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691059
ref: 92069A
BULB,12V 1.7W
€ 2.50
92069B
920691068
ref: 92069B
BULB,14V 3W
€ 2.50
92075
920751209
ref: 92075
DAMPER,METER
€ 3.50
92077
920771117
ref: 92077
KNOB,TRIP
€ 22.00
92151
921511449
ref: 92151
BOLT,SOCKET,6X10
€ 1.50
92160
921601713
ref: 92160
DAMPER,METER
€ 23.50
92200
922001465
ref: 92200
WASHER,6.2X10X1
€ 1.00
