STARTER MOTOR

VN1500G2A 2000 USA CALIFORNIA CANADA

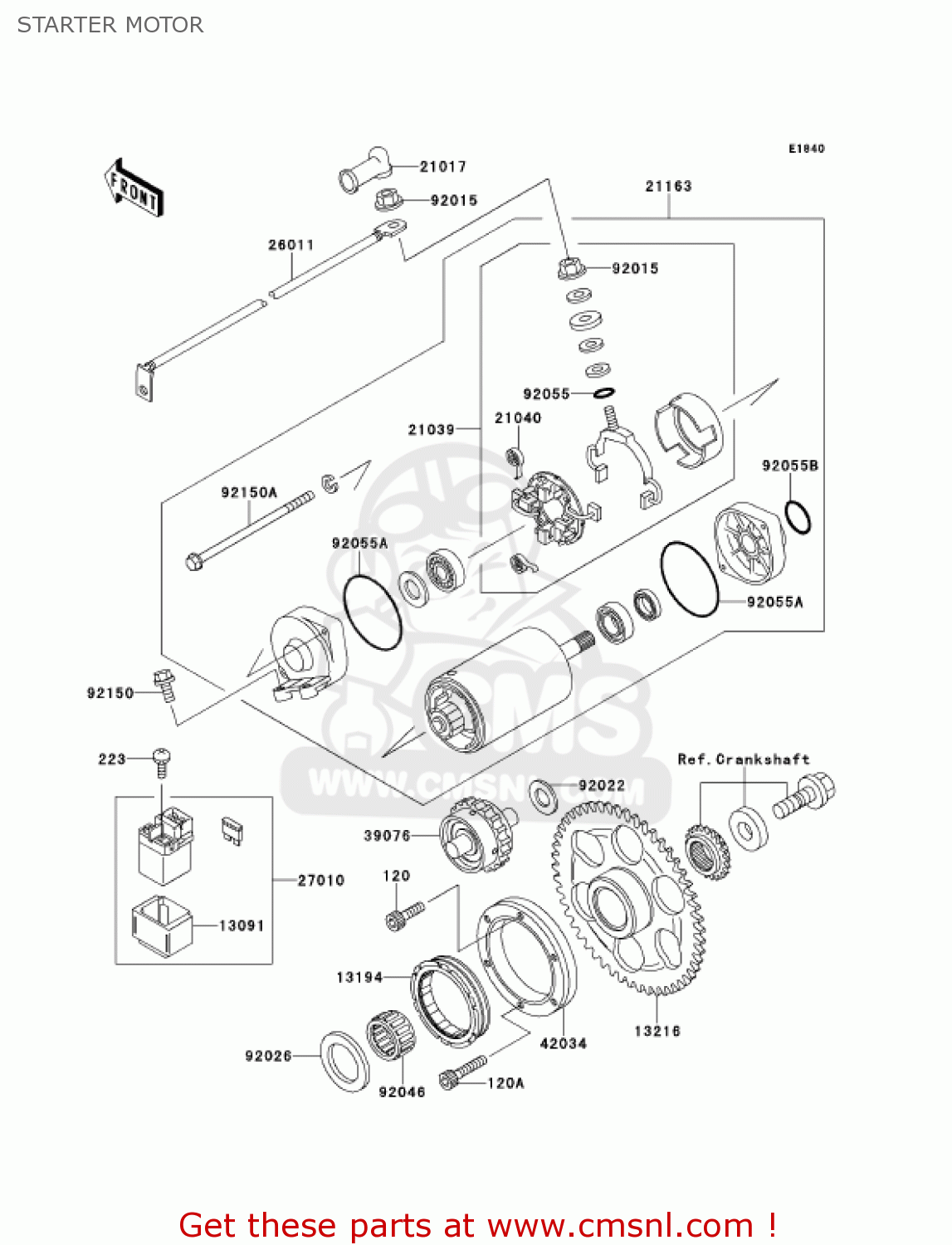

Starter motor diagram VN1500G2A 2000 USA CALIFORNIA CANADA

STARTER MOTOR VN1500G2A 2000 USA CALIFORNIA CANADA
STARTER MOTOR VN1500G2A 2000 USA CALIFORNIA CANADA
STARTER MOTOR VN1500G2A 2000 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120S0620
ref: 120
BOLT-SOCKET,6X20
120S0620
€ 1.00
120A
120S0630
ref: 120A
BOLT-SOCKET,6X30,BLAC
120S0630
€ 1.00
223
223D0510
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
13091
130911883
ref: 13091
HOLDER,SWITCH
€ 5.50
13194
131941088
ref: 13194
CLUTCH-ONEWAY
131941088
€ 131.50
13216
132161115
ref: 13216
GEAR-COMP,FREE WHEEL
132161115
€ 151.00
21017
21017017
ref: 21017
GROMMET-CORD
21017017
€ 6.50
21039
210391060
ref: 21039
BRUSH,CARBON
210391060
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
210401055
€ 5.50
21163
211631271
ref: 21163
STARTER-ELECTRIC
€ 862.50
26011
260111639
ref: 26011
WIRE-LEAD,STARTER
€ 76.50
27010
270101347
ref: 27010
SWITCH,MAGNETIC
270101347
€ 105.50
39076
390761057
ref: 39076
LIMITER,STARTER IDLE
€ 234.00
42034
420341093
ref: 42034
COUPLING
420341093
€ 69.50
92015
920151476
ref: 92015
NUT,6MM
920151476
€ 2.50
92022
920221852
ref: 92022
WASHER,12X27.5X1.0
920221852
€ 3.00
92026
920261490
ref: 92026
SPACER
€ 7.00
92046
920461171
ref: 92046
BEARING-NEEDLE,K30X35
920461171
€ 23.50
92055
920551370
ref: 92055
RING-O,4.5X2.0
920551370
€ 3.00
92055A
920551381
ref: 92055A
RING-O,STARTER MOTOR
920551381
€ 6.50
92055B
920551393
ref: 92055B
RING-O,37MM
920551393
€ 8.00
92150
921501779
ref: 92150
BOLT,6X25
921501779
€ 2.50
92150A
921501913
ref: 92150A
BOLT,STARTER MOTOR
921501913
€ 6.50
