MUFFLER(S)
VN1500G2A 2000 USA CALIFORNIA CANADA

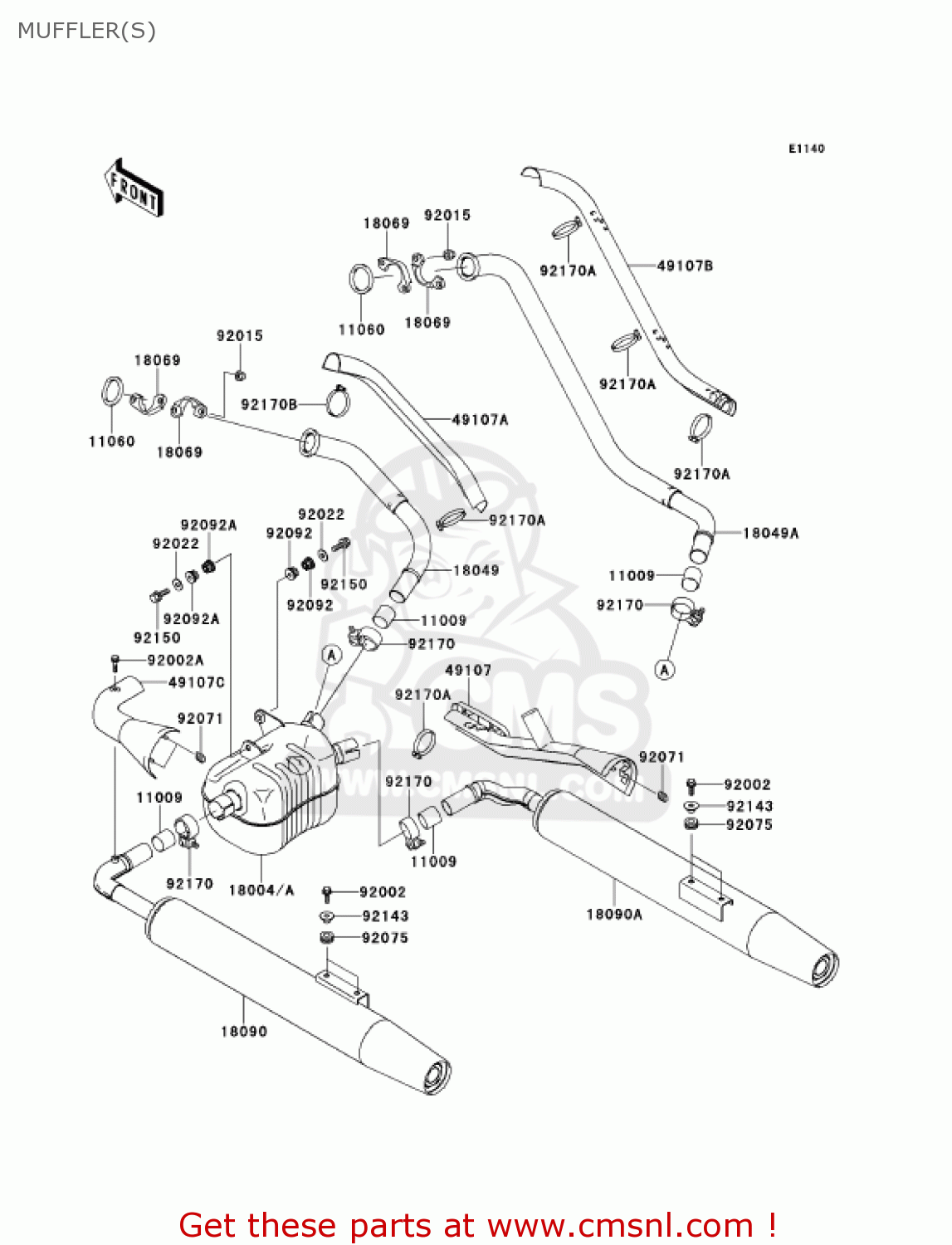

Muffler(s) diagram VN1500G2A 2000 USA CALIFORNIA CANADA
MUFFLER(S) VN1500G2A 2000 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091865
ref: 11009
GASKET,MUFFLER CONNEC (NAS)
€ 19.50
11060
110601119
ref: 11060
GASKET,EXHAUST PIPE (NAS)
€ 9.00
18004
180041092
ref: 18004
[US]
CHAMBER-PREMUFFLER
€ 709.00
18004A
180041093
ref: 18004A
[CA]
CHAMBER-PREMUFFLER
€ 974.00
18049
180491868
ref: 18049
PIPE-EXHAUST,RR
€ 219.00
18049A
180491882
ref: 18049A
PIPE-EXHAUST,FR
€ 380.00
18069
180691161
ref: 18069
HOLDER-EXHAUST PIPE
€ 27.00
18090
180901754
ref: 18090
BODY-COMP-MUFFLER,LH
€ 579.50
18090A
180901755
ref: 18090A
BODY-COMP-MUFFLER,RH
€ 544.00
49107
491071139
ref: 49107
COVER-EXHAUST PIPE,FR
€ 228.00
49107A
491071141
ref: 49107A
COVER-EXHAUST PIPE,RR
€ 161.50
49107B
491071148
ref: 49107B
COVER-EXHAUST PIPE,FR
€ 148.50
49107C
491071158
ref: 49107C
COVER-EXHAUST PIPE,LH
€ 125.00
92002
920021591
ref: 92002
BOLT,FLANGED,8X25
€ 2.00
92002A
920021604
ref: 92002A
BOLT
€ 3.00
92015
920151371
ref: 92015
NUT,CAP,8MM
€ 3.00
92022
920221302
ref: 92022
WASHER,10.5X30X2.3,BL
€ 4.50
92071
920711226
ref: 92071
GROMMET
€ 4.00
92075
920751898
ref: 92075
DAMPER
€ 3.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
92092A
920921081
ref: 92092A
BUSHING-RUBBER
€ 17.50
92143
921431753
ref: 92143
COLLAR
€ 6.00
92150
921501749
ref: 92150
BOLT,10X55
€ 4.50
92170
921701928
ref: 92170
CLAMP
€ 16.50
92170A
921701934
ref: 92170A
CLAMP
€ 5.50
92170B
921701964
ref: 92170B
CLAMP
€ 7.00
