CLUTCH
VN1500G2A 2000 USA CALIFORNIA CANADA

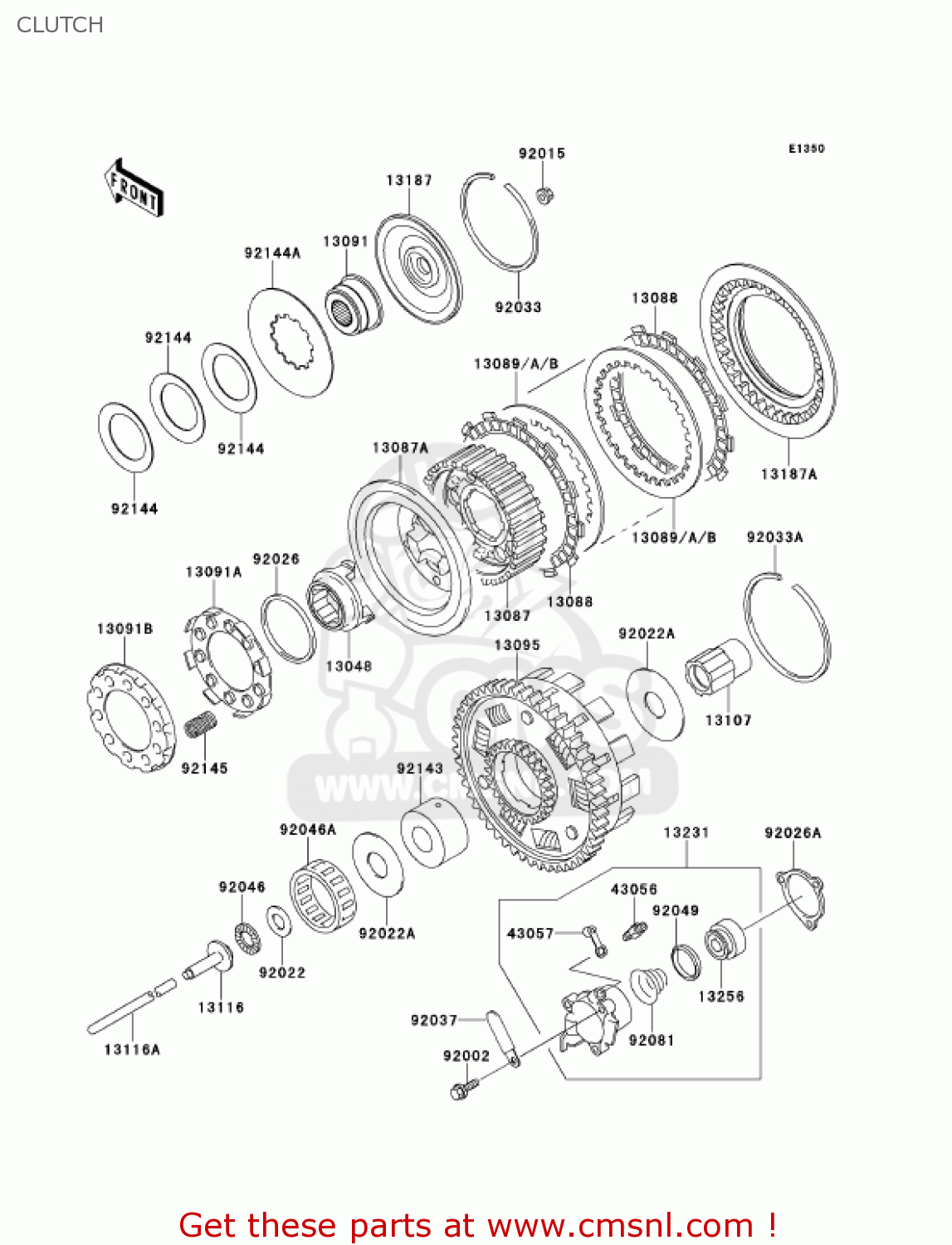

Clutch diagram VN1500G2A 2000 USA CALIFORNIA CANADA
CLUTCH VN1500G2A 2000 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
13048
130481087
ref: 13048
CAM-DAMPER
€ 79.00
13087
130871103
ref: 13087
HUB-CLUTCH,OUTER
€ 162.50
13087A
130871110
ref: 13087A
HUB-CLUTCH,INNER
€ 237.00
13088
130881018
ref: 13088
PLATE-FRICTION (NAS)
€ 15.00
13089
130891075
ref: 13089
PLATE-CLUTCH (NAS)
€ 7.50
13089A
130891080
ref: 13089A
PLATE-CLUTCH,T=1.6 (NAS)
€ 8.00
13089B
130891081
ref: 13089B
PLATE-CLUTCH,T=2.3 (NAS)
€ 8.00
13091
130911494
ref: 13091
HOLDER,CLUTCH SPRING
€ 47.00
13091A
130911495
ref: 13091A
HOLDER,DAMPER SPRING
€ 73.00
13091B
130911496
ref: 13091B
HOLDER,DAMPER SPRING
€ 62.50
13095
130951342
ref: 13095
HOUSING-COMP-CLUTCH
€ 839.50
13107
131071237
ref: 13107
SHAFT,CLUTCH CAM DAMP
€ 71.50
13116
131161102
ref: 13116
ROD-PUSH,CLUTCH
€ 26.50
13116A
131161132
ref: 13116A
ROD-PUSH
€ 19.50
13187
131871063
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 21.50
13187A
131871066
ref: 13187A
PLATE-CLUTCH OPERATIN (NAS)
€ 66.00
13231
132311071
ref: 13231
RELEASE-ASSY-CLUTCH
€ 137.50
13256
132561052
ref: 13256
PISTON
€ 43.50
43056
430561055
ref: 43056
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
€ 3.00
92002
920021612
ref: 92002
BOLT
€ 3.00
92015
920151461
ref: 92015
NUT,20MM
€ 17.50
92022
920221463
ref: 92022
WASHER,15.1X29X1.0
€ 3.00
92022A
920221857
ref: 92022A
WASHER,25.3X56X2.0
€ 9.50
92026
920261043
ref: 92026
SPACER,3.5X59X70
€ 19.00
92026A
920261263
ref: 92026A
SPACER,CLUTCH RELEASE
€ 11.50
92033
920331238
ref: 92033
RING-SNAP
€ 10.50
92033A
920331239
ref: 92033A
RING-SNAP
€ 6.50
92037
920371539
ref: 92037
CLAMP,L=45
€ 3.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
€ 14.00
92046A
920461175
ref: 92046A
BEARING-NEEDLE,RS40/2
€ 35.50
92049
920491165
ref: 92049
SEAL-OIL,PISTON
€ 13.00
92081
920811644
ref: 92081
SPRING,CLUTCH RELEASE
€ 5.50
92143
921431076
ref: 92143
COLLAR,INPUT SHAFT
€ 29.50
92144
921441188
ref: 92144
SPRING,LIMITER
€ 8.50
92144A
921441934
ref: 92144A
SPRING,CLUTCH
€ 25.00
92145
921451243
ref: 92145
SPRING
€ 5.50
