FRONT FORK
VN1500G2A 2000 USA CALIFORNIA CANADA

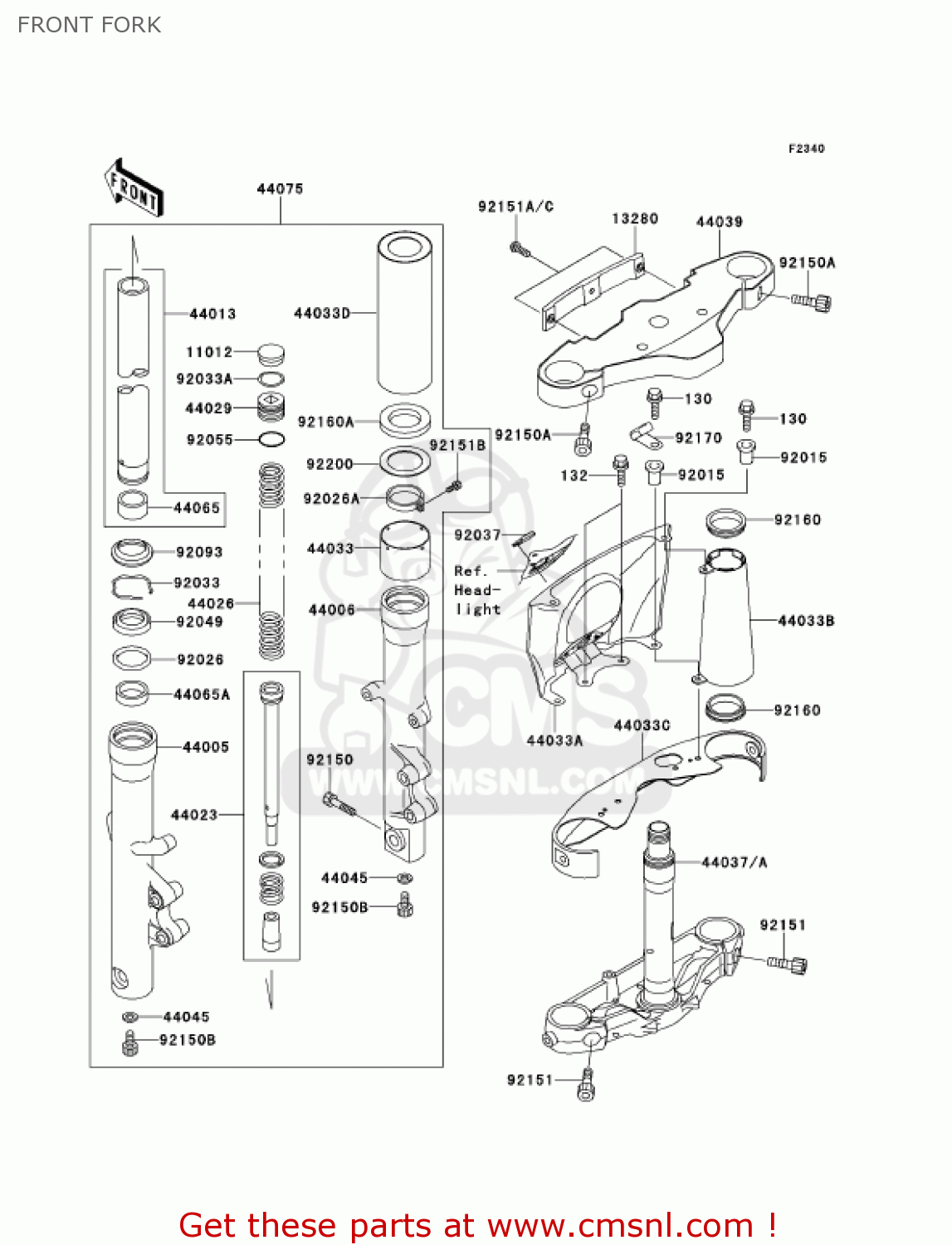

Front fork diagram VN1500G2A 2000 USA CALIFORNIA CANADA
FRONT FORK VN1500G2A 2000 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121618
ref: 11012
CAP,FORK TOP
€ 10.00
13280
132801070
ref: 13280
HOLDER
€ 44.00
44005
440051384
ref: 44005
PIPE-LEFT FORK OUTER
€ 338.50
44006
440061384
ref: 44006
PIPE-RIGHT FORK OUTER
€ 396.00
44013
440131450
ref: 44013
PIPE-FORK INNER
€ 263.50
44023
440231129
ref: 44023
CYLINDER-SET-FORK
€ 106.50
44026
440261676
ref: 44026
SPRING-FRONT FORK
€ 67.00
44029
440291125
ref: 44029
SEAT-FORK SPRING
€ 29.50
44033
440331223
ref: 44033
COVER-FORK
€ 12.00
44033A
440331228
ref: 44033A
COVER-FORK,CNT
€ 85.50
44033B
440331229
ref: 44033B
COVER-FORK,UPP
€ 71.00
44033C
440331230
ref: 44033C
COVER-FORK,LWR
€ 132.00
44033D
440331236
ref: 44033D
COVER-FORK
€ 62.50
44037
440371368
ref: 44037
HOLDER-FORK UNDER
€ 358.00
44039
440391279
ref: 44039
HOLDER-FORK UPPER
€ 276.00
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44065
440651126
ref: 44065
BUSHING-FRONT FORK,IN
€ 14.00
44065A
440651127
ref: 44065A
BUSHING-FRONT FORK
€ 16.00
44075
440751073
ref: 44075
DAMPER-SET-FORK
€ 1,693.00
92015
920151757A
ref: 92015
NUT,5MM
€ 5.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
€ 6.50
92026A
920261515
ref: 92026A
SPACER
€ 13.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
€ 4.00
92037
920371539
ref: 92037
CLAMP,L=45
€ 3.00
92049
920491363
ref: 92049
SEAL-OIL,FORK
€ 17.50
92055
920551363
ref: 92055
RING-O,SPRING SEAT
€ 4.50
92093
920931268
ref: 92093
SEAL,FORK
€ 16.50
92150
921501029
ref: 92150
BOLT,SOCKET,10X40
€ 7.00
92150A
921501031
ref: 92150A
BOLT,SOCKET,8MM
€ 6.00
92150B
921501432
ref: 92150B
BOLT
€ 6.50
92151
921511083
ref: 92151
BOLT
€ 6.00
92151A
921511324
ref: 92151A
BOLT,SOCKET,6X20
€ 1.50
92151B
921511356
ref: 92151B
BOLT
€ 1.50
92160
921601892
ref: 92160
DAMPER
€ 2.50
92160A
921601927
ref: 92160A
DAMPER
€ 6.00
92170
921701900
ref: 92170
CLAMP
€ 4.00
92200
922001417
ref: 92200
WASHER
€ 4.50
130
130J0516
ref: 130
BOLT-FLANGED
€ 1.50
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
