SADDLEBAGS
VN1500G2A 2000 USA CALIFORNIA CANADA

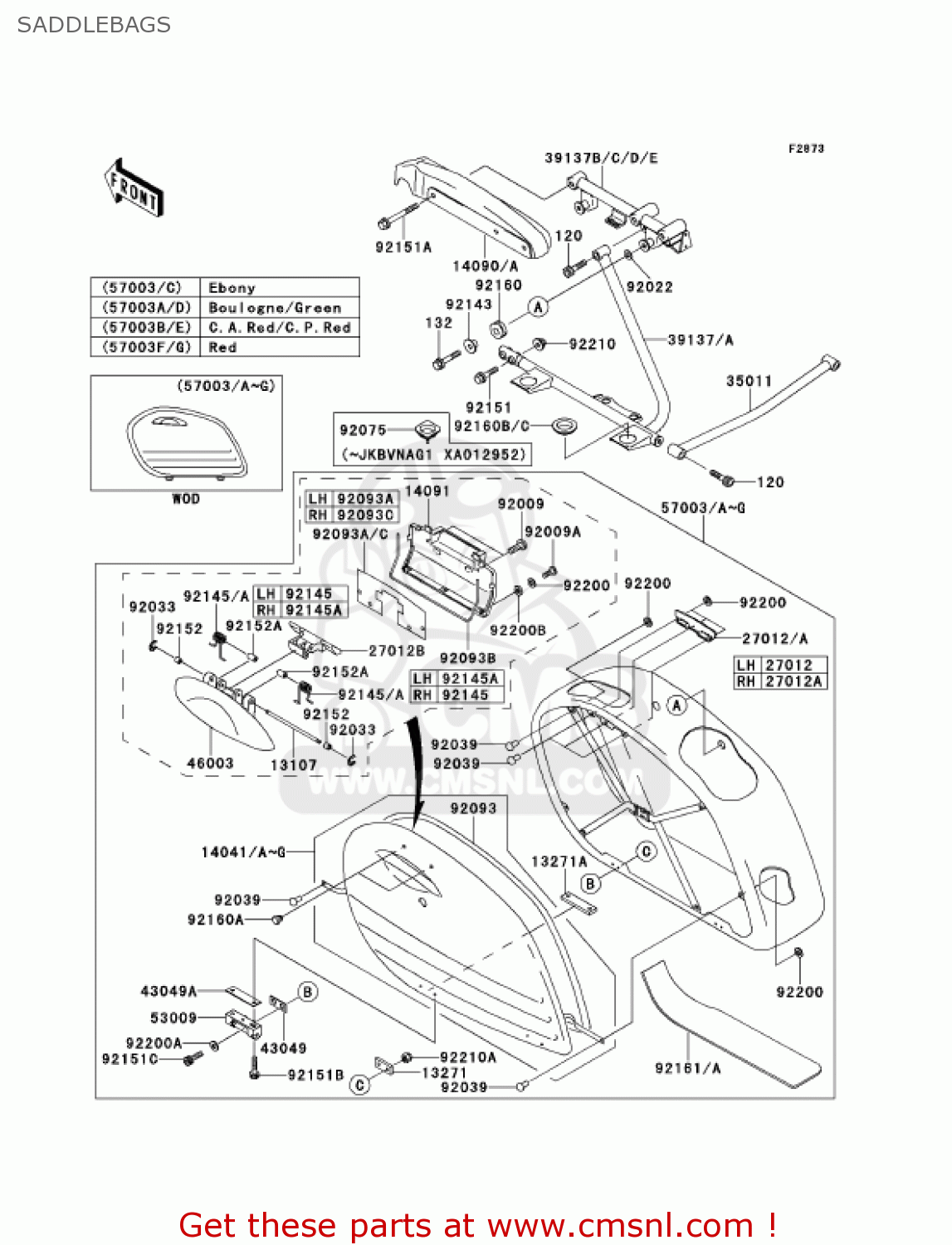

Saddlebags diagram VN1500G2A 2000 USA CALIFORNIA CANADA
SADDLEBAGS VN1500G2A 2000 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
13107
131071403
ref: 13107
SHAFT
€ 2.50
13271
132711146
ref: 13271
PLATE
€ 2.50
13271A
132711147
ref: 13271A
PLATE
€ 5.50
14041A
140411130H8
ref: 14041A
COVER-COMP,SIDE BAG,L
€ 471.50
14041E
140411131H8
ref: 14041E
COVER-COMP,SIDE BAG,R
€ 431.50
14090
140901894
ref: 14090
COVER,RR FENDER,LH
€ 56.50
14090A
140901895
ref: 14090A
COVER,RR FENDER,RH
€ 68.00
14091
140911069
ref: 14091
COVER
€ 14.00
27012
270121571
ref: 27012
HOOK,LOCK PLATE,LH
€ 10.50
27012A
270121572
ref: 27012A
HOOK,LOCK PLATE,RH
€ 10.50
27012B
270121575
ref: 27012B
HOOK,HANDLE
€ 13.50
35011
350111896
ref: 35011
STAY,SIDE BAG
€ 44.50
39137
391371067
ref: 39137
STAY-COMP,SIDE BAG,LH
€ 120.50
39137A
391371068
ref: 39137A
STAY-COMP,SIDE BAG,RH
€ 123.00
39137D
391371075
ref: 39137D
STAY-COMP,SIDE BAG,LH
€ 127.00
39137E
391371076
ref: 39137E
STAY-COMP,SIDE BAG,RH
€ 148.50
43049
430491084
ref: 43049
PACKING (NAS)
€ 1.50
43049A
430491086
ref: 43049A
PACKING (NAS)
€ 1.50
46003
460031505
ref: 46003
HANDLE,SIDE BAG
€ 137.50
53009
530091104
ref: 53009
HINGE
€ 17.50
57003
570031082H8
ref: 57003
BAG-ASSY,LH,EBONY
€ 1,633.00
57003C
570031083H8
ref: 57003C
BAG-ASSY,RH,EBONY
€ 1,796.00
92009
920091870
ref: 92009
SCREW
€ 1.00
92009A
920091871
ref: 92009A
SCREW
€ 1.00
92022
920221317
ref: 92022
WASHER,8.5X20X1.6,BLA
€ 2.00
92033
920331300
ref: 92033
RING-SNAP
€ 1.00
120
120S0835
ref: 120
BOLT-SOCKET,8X35,BLAC
€ 3.00
132
132J0845
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
92039
920391236
ref: 92039
RIVET
€ 1.50
92093
920931486
ref: 92093
SEAL
€ 8.50
92093A
920931487
ref: 92093A
SEAL
€ 3.50
92093B
920931488
ref: 92093B
SEAL
€ 2.00
92093C
920931489
ref: 92093C
SEAL
€ 3.50
92143
921431450
ref: 92143
COLLAR
€ 6.50
92145
921451175
ref: 92145
SPRING
€ 4.50
92145A
921451200
ref: 92145A
SPRING
€ 4.50
92151
921511402
ref: 92151
BOLT,FLANGED,8X35
€ 1.50
92151A
921511403
ref: 92151A
BOLT,FLANGED,8X75
€ 3.00
92151B
921511436
ref: 92151B
BOLT
€ 1.50
92151C
921511437
ref: 92151C
BOLT
€ 1.50
92152
921521121
ref: 92152
COLLAR
€ 2.50
92152A
921521122
ref: 92152A
COLLAR
€ 2.00
92160
921601012
ref: 92160
DAMPER
€ 3.50
92160A
921601976
ref: 92160A
DAMPER
€ 1.50
92160B
921601981
ref: 92160B
DAMPER
€ 7.00
92200
922001442
ref: 92200
WASHER
€ 1.00
92200A
922001443
ref: 92200A
WASHER
€ 1.00
92200B
922001444
ref: 92200B
WASHER,3MM
€ 1.00
92210
922101161
ref: 92210
NUT,CAP,8MM
€ 1.50
92210A
922101168
ref: 92210A
NUT
€ 1.50
