WATER PUMP

VN1500A5 VULCAN 88 1991 USA CALIFORNIA

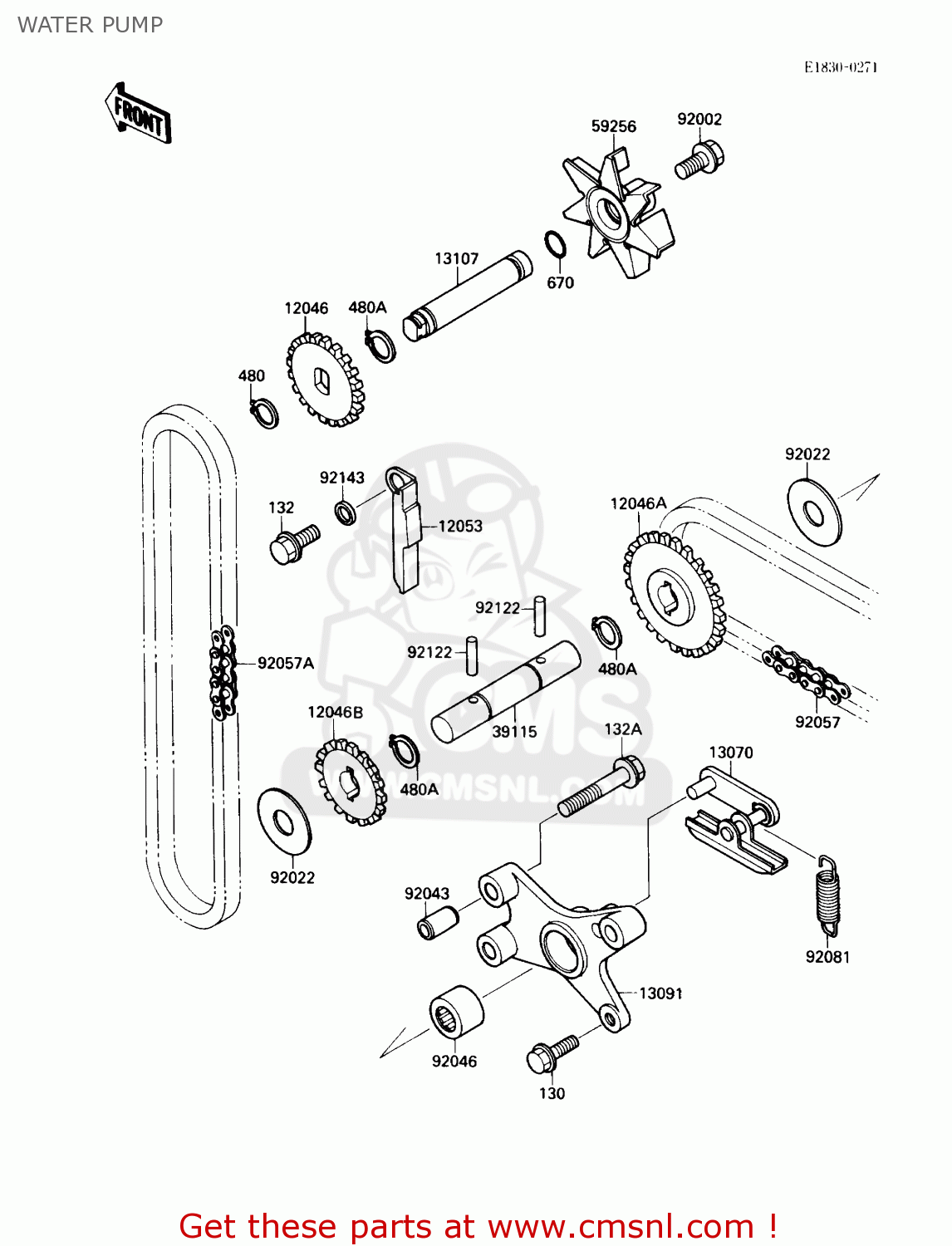

Water pump diagram VN1500A5 VULCAN 88 1991 USA CALIFORNIA

WATER PUMP VN1500A5 VULCAN 88 1991 USA CALIFORNIA
WATER PUMP VN1500A5 VULCAN 88 1991 USA CALIFORNIA
WATER PUMP VN1500A5 VULCAN 88 1991 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130D0514
ref: 130
BOLT-FLANGED
130D0514
€ 2.00
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
132A
132E0635
ref: 132A
BOLT-FLANGED-SMALL
132E0635
€ 3.00
480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
480J1100
€ 0.50
480A
480J1200
ref: 480A
CIRCLIP-TYPE-C,12MM
480J1200
€ 0.50
670
670D1509
ref: 670
O RING,9MM
670D1509
€ 3.00
12046
120461079
ref: 12046
SPROCKET,OIL PUMP,19T
120461079
€ 16.00
12046A
120461096
ref: 12046A
SPROCKET,CRANK IDLER,
120461096
€ 33.00
12046B
120461097
ref: 12046B
SPROCKET,IDLER,17T
120461097
€ 21.00
12053
120531227
ref: 12053
GUIDE-CHAIN
120531227
€ 11.50
13070
130701178
ref: 13070
GUIDE
130701178
€ 34.50
13091
130911471
ref: 13091
HOLDER
130911471
€ 26.00
13107
131071196
ref: 13107
SHAFT,IMPELLER
131071196
€ 19.00
39115
391151058
ref: 39115
SHAFT-IDLER
391151058
€ 17.00
59256
592561066
ref: 59256
IMPELLER
592561066
€ 29.50
92002
920021902
ref: 92002
BOLT,6X12
920021902
€ 1.50
92022
920221852
ref: 92022
WASHER,12X27.5X1.0
920221852
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92046
920461163
ref: 92046
BEARING-NEEDLE,HK1212
920461163
€ 13.50
92057
920571230
ref: 92057
CHAIN,BS25HX46L
920571230
€ 4.00
92057A
920571231
ref: 92057A
CHAIN,BS25HX44L
920571231
€ 4.00
92081
920811791
ref: 92081
SPRING,IDLER SHAFT
920811791
€ 3.00
92122
921221126
ref: 92122
ROLLER,3X15.8
921221126
€ 2.50
92143
921431123
ref: 92143
COLLAR
921431123
€ 3.00
