BATTERY CASE
VN1500A5 VULCAN 88 1991 USA CALIFORNIA

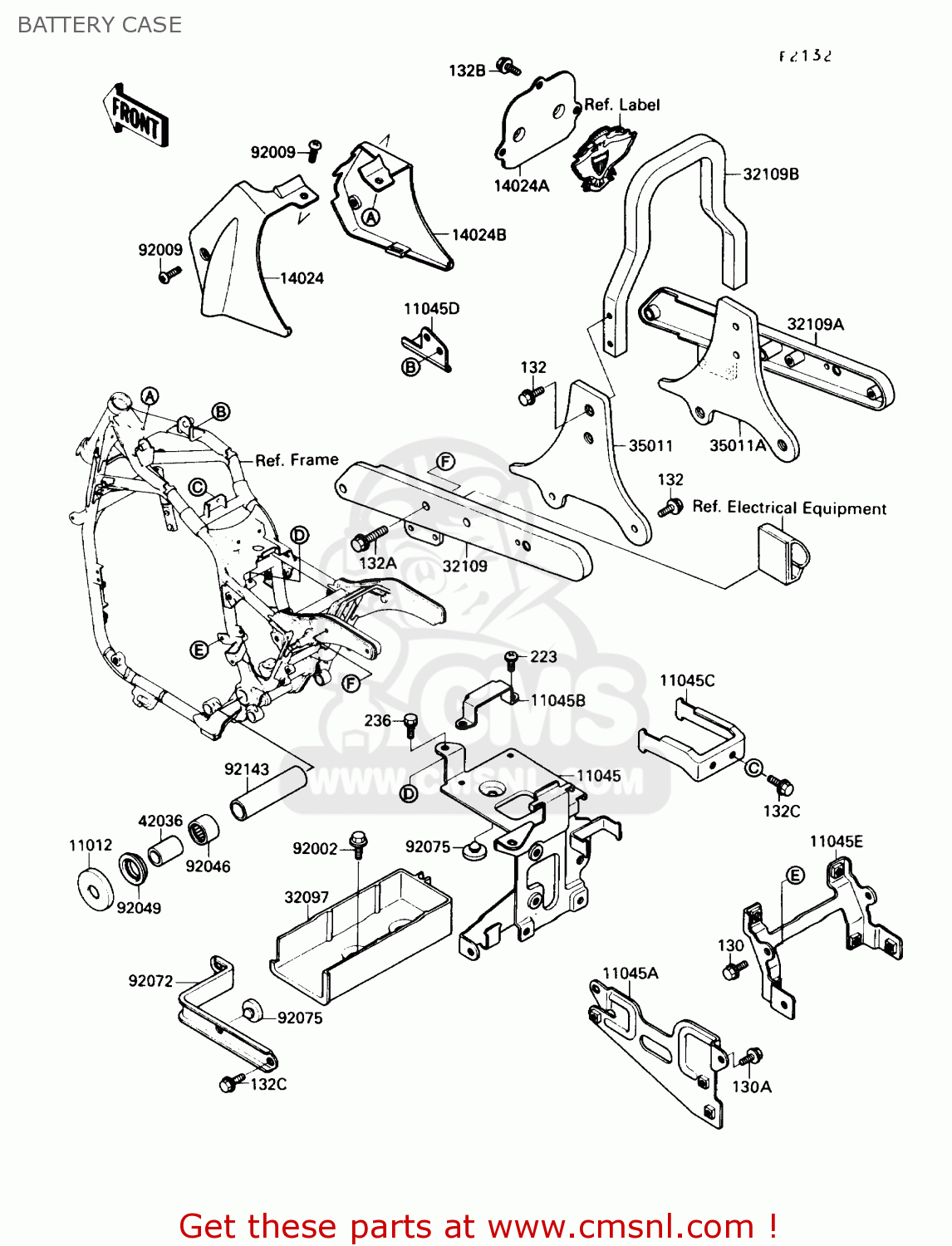

Battery case diagram VN1500A5 VULCAN 88 1991 USA CALIFORNIA
BATTERY CASE VN1500A5 VULCAN 88 1991 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
130
130C0614
ref: 130
BOLT-FLANGED,6X14
€ 1.50
130A
130D0610
ref: 130A
BOLT-FLANGED
€ 0.50
132
132E0614
ref: 132
BOLT-FLANGED-SMALL,6X
€ 2.50
132A
132E0820
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132G0612
ref: 132B
BOLT-FLANGED-SMALL
€ 1.50
132C
132H0610
ref: 132C
BOLT-FLANGED-SMALL,6X
€ 1.00
223
223B0510
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
236
236D0612
ref: 236
SCREW-PAN-WSP-CROS
€ 2.50
11012
110121575
ref: 11012
CAP,SWING ARM
€ 5.00
11045
110451451
ref: 11045
BRACKET,ELECTRIC BASE
€ 30.50
11045A
110451452
ref: 11045A
BRACKET,IGNITER
€ 15.50
11045B
110451453
ref: 11045B
BRACKET,JUNCTION BOX
€ 4.00
11045C
110451454
ref: 11045C
BRACKET,FUEL PUMP
€ 11.50
11045D
110451455
ref: 11045D
BRACKET,FUEL FILTER
€ 4.50
11045E
110451622
ref: 11045E
BRACKET,IGNITION COIL
€ 16.50
14024
140241457
ref: 14024
COVER,HEAD GUSSET,LH
€ 58.00
14024A
140241459
ref: 14024A
COVER,SEAT
€ 10.00
14024B
140241682
ref: 14024B
COVER,HEAD GUSSET,RH
€ 77.50
32097
320971130
ref: 32097
CASE-BATTERY
€ 13.00
32109
321091157
ref: 32109
GRIP-FRAME,LWR,LH
€ 97.00
32109A
321091158
ref: 32109A
GRIP-FRAME,LWR,RH
€ 38.00
32109B
321091159
ref: 32109B
GRIP-FRAME,UPP
€ 227.00
35011
350111336
ref: 35011
STAY,FRAME GRIP,LH
€ 151.50
35011A
350111337
ref: 35011A
STAY,FRAME GRIP,RH
€ 151.50
42036
420361213
ref: 42036
SLEEVE,17.1X25X40
€ 13.50
92002
920021721
ref: 92002
BOLT,6X12
€ 2.00
92009
920091335
ref: 92009
SCREW,5X10
€ 2.50
92046
920461035
ref: 92046
920461035
92049
920491166
ref: 92049
SEAL-OIL
€ 7.50
92072
920721218
ref: 92072
BAND,BATTERY
€ 8.00
92075
92075078
ref: 92075
DAMPER,RUBBER
€ 2.50
92143
921431083
ref: 92143
COLLAR,17.6X22.2X96.5
€ 6.50
