ENGINE COVER
VN1500A5 VULCAN 88 1991 USA CALIFORNIA

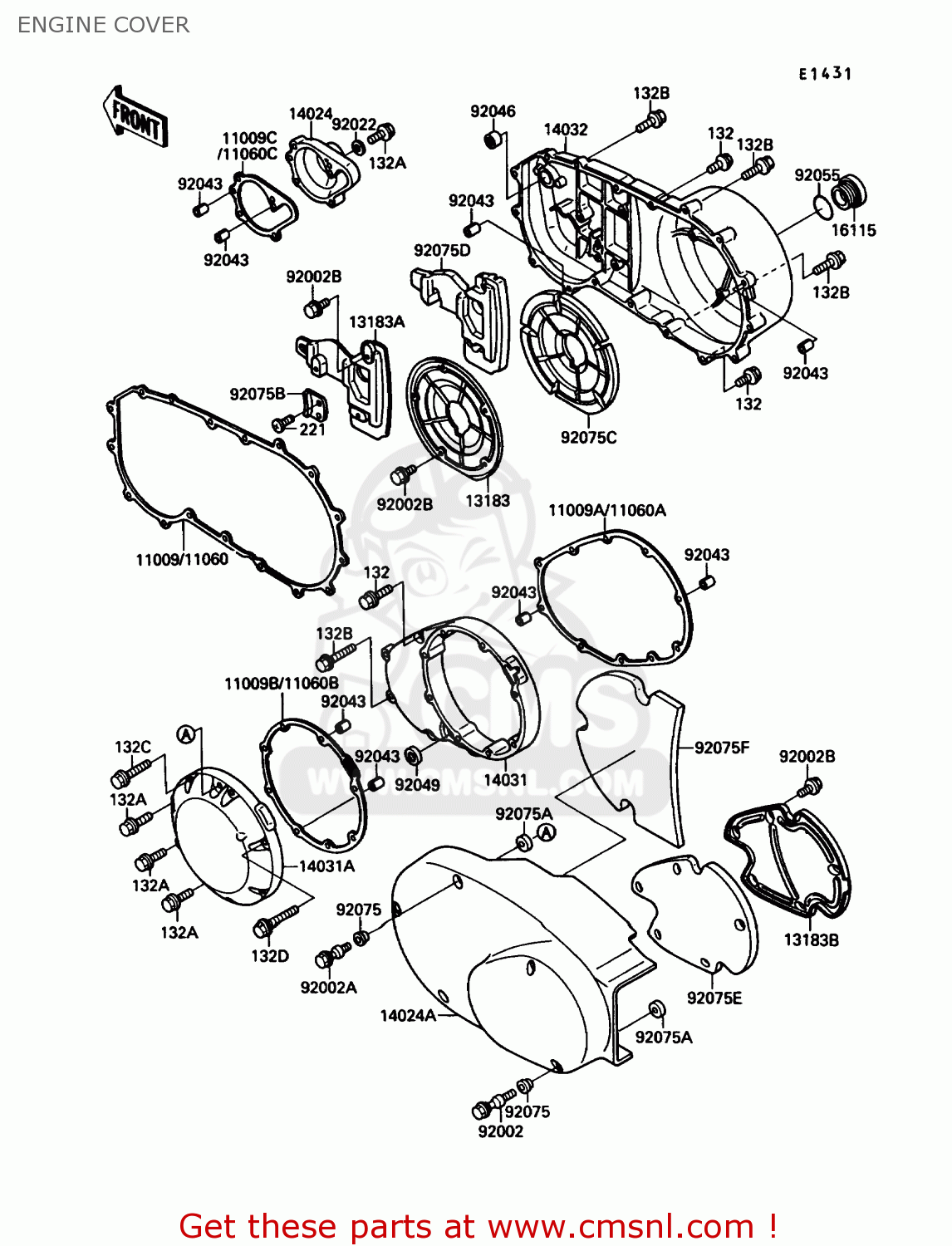

Engine cover diagram VN1500A5 VULCAN 88 1991 USA CALIFORNIA
ENGINE COVER VN1500A5 VULCAN 88 1991 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
132
132E0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132E0630
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132E0635
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132E0655
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132E0665
ref: 132D
BOLT-FLANGED-SMALL
€ 2.50
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
€ 1.50
11060
110601121
ref: 11060
GASKET,CLUTCH COVER (NAS)
€ 27.50
11060A
110601122
ref: 11060A
GASKET,GENERATOR (NAS)
€ 18.50
11060B
110601123
ref: 11060B
GASKET,GENERATOR OUTE (NAS)
€ 12.00
11060C
110601124
ref: 11060C
GASKET,WATER PUMP COV (NAS)
€ 8.00
13183
131831169
ref: 13183
PLATE
€ 11.50
13183A
131831170
ref: 13183A
PLATE
€ 8.50
13183B
131831171
ref: 13183B
PLATE,DAMPER
€ 13.50
14024
140241402
ref: 14024
COVER,WATER PUMP
€ 37.00
14024A
140241403
ref: 14024A
COVER,LH
€ 185.50
14031
140311205
ref: 14031
COVER-GENERATOR
€ 44.00
14031A
140311206
ref: 14031A
COVER-GENERATOR,OUTER
€ 71.50
14032
140321233
ref: 14032
COVER-CLUTCH
€ 224.00
16115
161151056
ref: 16115
CAP-OIL FILLER
€ 19.50
92002
920021814
ref: 92002
BOLT
€ 5.50
92002A
920021900
ref: 92002A
BOLT
€ 8.00
92002B
920021944
ref: 92002B
BOLT,6X8
€ 3.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92046
920461163
ref: 92046
BEARING-NEEDLE,HK1212
€ 13.50
92049
92051005A
ref: 92049
OIL SEAL,TB13225.5
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92075
920751855
ref: 92075
DAMPER
€ 5.50
92075A
920751856
ref: 92075A
DAMPER
€ 6.00
92075B
920751905
ref: 92075B
DAMPER
€ 6.00
92075C
920751975
ref: 92075C
DAMPER,CLUTCH COVER,R
€ 40.50
92075D
920751976
ref: 92075D
DAMPER,CLUTCH COVER,F
€ 34.00
92075E
920751977
ref: 92075E
DAMPER,LH COVER,RR
€ 50.50
92075F
920751978
ref: 92075F
DAMPER,LH COVER,FR
€ 54.00
