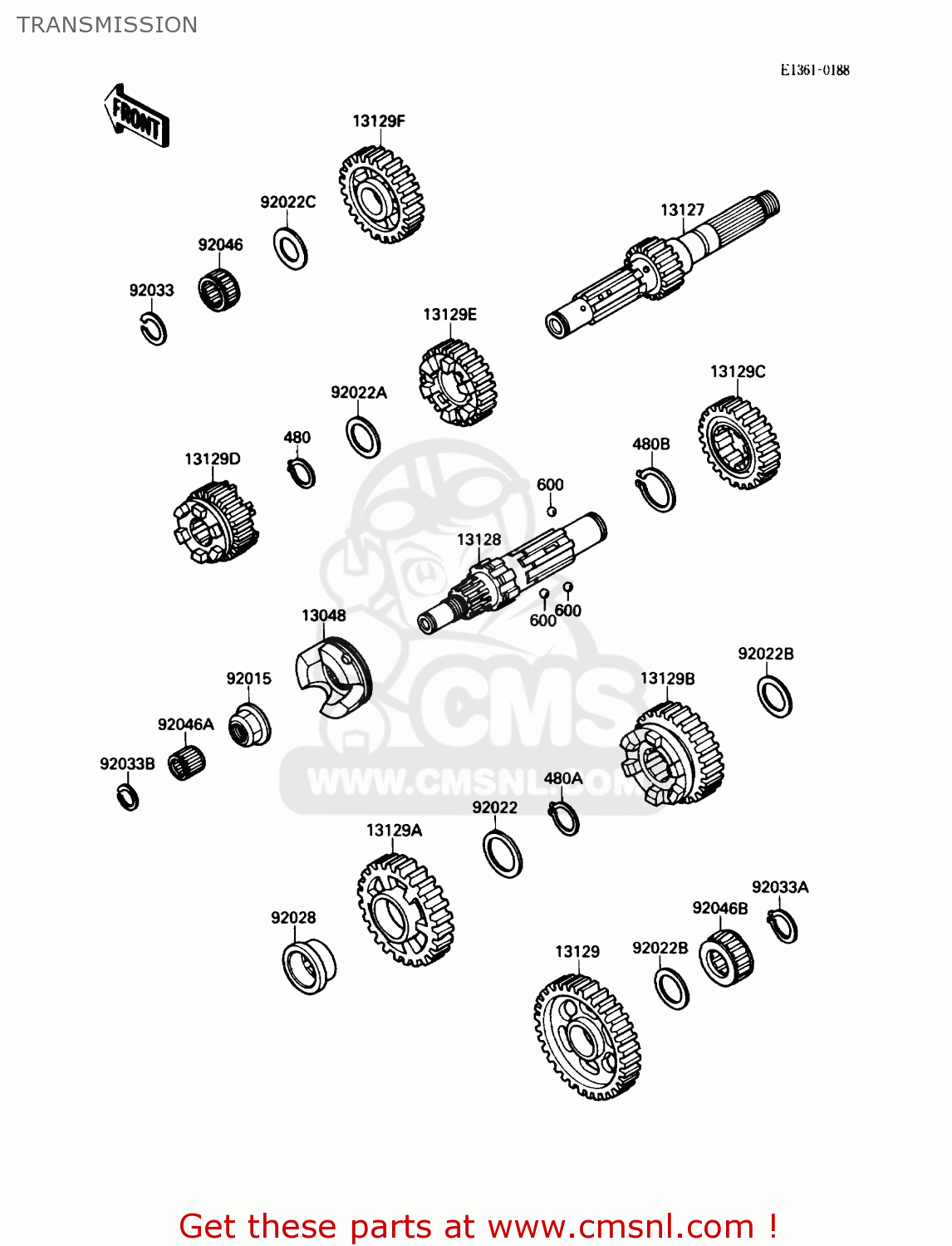

TRANSMISSION

ref

part #

description

quantity

480

480J2800
ref: 480

CIRCLIP-TYPE-C,28MM

€ 3.50

480A

480J3200
ref: 480A

CIRCLIP-TYPE-C,32MM

€ 1.00

480B

480J4000
ref: 480B

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13048

130481073
ref: 13048

CAM-DAMPER

€ 92.00

13127

131271155
ref: 13127

SHAFT-TRANSMISSION IN

€ 280.50

13128

131281144
ref: 13128

SHAFT-TRANSMISSION OU

€ 235.50

13129

131291842
ref: 13129

GEAR,OUTPUT LOW,40T

€ 171.50

13129A

131291843
ref: 13129A

GEAR,OUTPUT 2ND,35T

€ 119.50

13129B

131291844
ref: 13129B

GEAR,OUTPUT 3RD,31T

€ 136.00

13129C

131291845
ref: 13129C

GEAR,OUTPUT 4TH,28T

€ 81.00

13129D

131291905
ref: 13129D

GEAR,INPUT 2ND,22T

€ 127.50

13129E

131291906
ref: 13129E

GEAR,INPUT 3RD,26T

€ 102.00

13129F

131291907
ref: 13129F

GEAR,INPUT 4TH,29T

€ 102.00

92015

920151610
ref: 92015

NUT,20MM

€ 9.00

92022

920221693
ref: 92022

WASHER,32X40X1.6

€ 4.50

92022A

920221854
ref: 92022A

WASHER,INPUT,3RD,LH

€ 5.50

92022B

920221855
ref: 92022B

WASHER,25.5X36X1.0

€ 6.50

92022C

92022212
ref: 92022C

WASHER-PLAIN,22MM

€ 6.50

92028

920281478
ref: 92028

BUSHING,OUTPUT,2ND

€ 22.00

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

920331172
ref: 92033A

RING-SNAP,25MM

€ 3.50

92033B

920331208
ref: 92033B

RING-SNAP

€ 3.50

92046

92046031
ref: 92046

BEARING-NEEDLE,FWF-22

€ 19.50

92046A

920461154
ref: 92046A

BEARING-NEEDLE,K18242

€ 20.50

92046B

920461166
ref: 92046B

BEARING-NEEDLE,RS25/1

€ 18.50

all assemblies
