FRONT BEVEL GEAR

VN1500A5 VULCAN 88 1991 USA CALIFORNIA

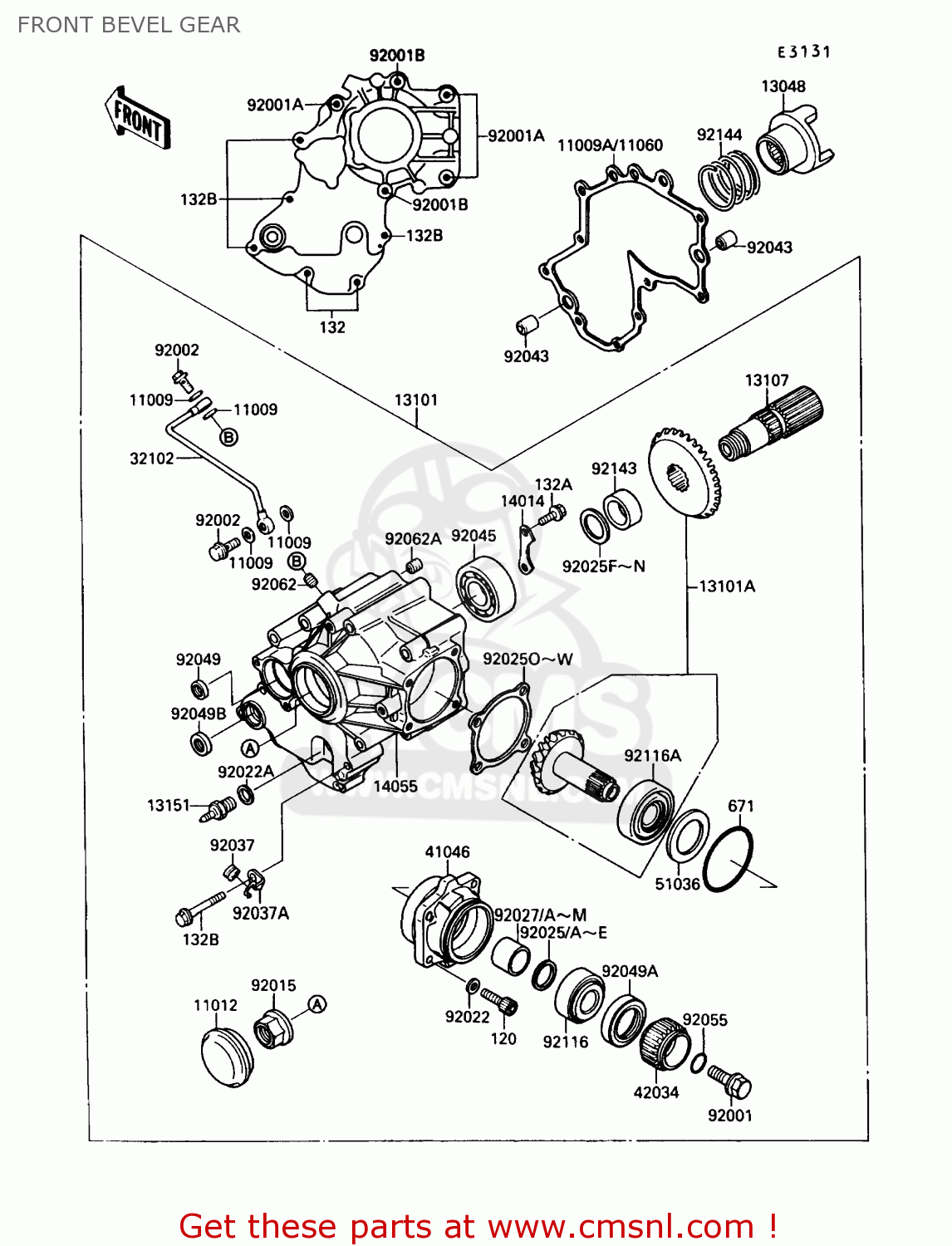

Front bevel gear diagram VN1500A5 VULCAN 88 1991 USA CALIFORNIA

FRONT BEVEL GEAR VN1500A5 VULCAN 88 1991 USA CALIFORNIA
FRONT BEVEL GEAR VN1500A5 VULCAN 88 1991 USA CALIFORNIA
FRONT BEVEL GEAR VN1500A5 VULCAN 88 1991 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
11009
110091344
ref: 11009
GASKET,OIL PIPE,8.2X1 (NAS)
110091344
€ 1.50
11012
110121071
ref: 11012
CAP
110121071
€ 21.50
11060
110601120
ref: 11060
GASKET,GEAR CASE (NAS)
110601120
€ 19.50
13048
130481074
ref: 13048
CAM-DAMPER
130481074
€ 75.50
13101
131011118
ref: 13101
GEAR-ASSY,BEVEL,FR
131011118
€ 1,659.00
13101A
131015065
ref: 13101A
GEAR-ASSY,BEVEL,FR
€ 753.50
13107
131071263
ref: 13107
SHAFT,BEVEL,FR
€ 132.50
13151
131511010
ref: 13151
SWITCH-COMP,NEUTRAL
131511010
€ 17.50
14014
140141084
ref: 14014
PLATE-POSITION
140141084
€ 4.00
14055
140551074
ref: 14055
CASE-GEAR
140551074
€ 549.50
32102
321021411
ref: 32102
PIPE
€ 32.50
41046
410461085
ref: 41046
HOUSING-BEARING
€ 96.00
42034
420341091
ref: 42034
COUPLING,FR DRIVEN
420341091
€ 96.00
51036
510361002
ref: 51036
CAP
510361002
€ 3.50
92001
920011169
ref: 92001
BOLT,12X42
920011169
€ 15.50
92001A
920011480
ref: 92001A
BOLT,8X90
920011480
€ 5.50
92001B
920011597
ref: 92001B
BOLT,FLANGED,8X110
€ 3.50
92002
920021429
ref: 92002
BOLT,8X20
920021429
€ 7.00
92015
920151554
ref: 92015
NUT,24MM
920151554
€ 16.50
92022
920221028
ref: 92022
WASHER,8.5X13X1
920221028
€ 2.50
92022A
920221211
ref: 92022A
WASHER,12X18X1.0
920221211
€ 2.50
92025
920251072
ref: 92025
SHIM,1.70T
920251072
€ 6.50
92025A
920251073
ref: 92025A
SHIM,1.72T
920251073
€ 6.50
92025B
920251074
ref: 92025B
SHIM,1.74T
920251074
€ 6.50
92025C
920251075
ref: 92025C
SHIM,1.76T
920251075
€ 6.50
92025D
920251076
ref: 92025D
SHIM,1.78T
920251076
€ 6.50
92025E
920251077
ref: 92025E
SHIM,1.80T
920251077
€ 6.50
92025F
920251688
ref: 92025F
SHIM,25.3X36X0.15
920251688
€ 5.50
92025G
920251689
ref: 92025G
SHIM,25.3X36X0.50
920251689
€ 5.50
92025H
920251690
ref: 92025H
SHIM,25.3X36X0.60
920251690
€ 5.50
92025I
920251691
ref: 92025I
SHIM,25.3X36X0.70
920251691
€ 5.50
92025J
920251692
ref: 92025J
SHIM,25.3X36X0.80
920251692
€ 5.50
92025K
920251693
ref: 92025K
SHIM,25.3X36X0.90
920251693
€ 5.50
92025L
920251694
ref: 92025L
SHIM,25.3X36X1.0
920251694
€ 5.50
92025M
920251695
ref: 92025M
SHIM,25.3X36X1.1
920251695
€ 5.50
92025N
920251696
ref: 92025N
SHIM,25.3X36X1.2
920251696
€ 5.50
92025O
920251818
ref: 92025O
SHIM,T=0.15
920251818
€ 8.00
92025P
920251819
ref: 92025P
SHIM,T=0.50
920251819
€ 8.00
92025Q
920251820
ref: 92025Q
SHIM,T=0.60
920251820
€ 7.50
120
120P0830
ref: 120
BOLT,SOCKET,8X30
120P0830
€ 2.00
132
132E0630
ref: 132
BOLT-FLANGED-SMALL
132E0630
€ 3.00
132A
132G0616
ref: 132A
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132B
132G0655
ref: 132B
BOLT-FLANGED-SMALL
132G0655
€ 2.00
671
671B2565
ref: 671
O RING,65MM
671B2565
€ 6.00
92025R
920251821
ref: 92025R
SHIM,T=0.70
920251821
€ 7.50
92025S
920251822
ref: 92025S
SHIM,T=0.80
920251822
€ 7.50
92025T
920251823
ref: 92025T
SHIM,T=0.90
920251823
€ 8.00
92025U
920251824
ref: 92025U
SHIM,T=1.00
920251824
€ 7.00
92025V
920251825
ref: 92025V
SHIM,T=1.20
920251825
€ 8.00
92025W
920251826
ref: 92025W
SHIM,T=0.10
920251826
€ 7.00
92027
920271152
ref: 92027
COLLAR,25.2X29.8X22.8
920271152
€ 12.00
92027A
920271153
ref: 92027A
COLLAR,25.2X29.8X22.9
920271153
€ 12.00
92027B
920271154
ref: 92027B
COLLAR,25.2X29.8X23
920271154
€ 12.00
92027C
920271155
ref: 92027C
COLLAR,25.2X29.8X23.1
920271155
€ 12.50
92027D
920271156
ref: 92027D
COLLAR,25.2X29.8X23.2
920271156
€ 13.00
92027E
920271157
ref: 92027E
COLLAR,25.2X29.8X23.3
920271157
€ 12.00
92027F
920271158
ref: 92027F
COLLAR,25.2X29.8X23.4
920271158
€ 12.00
92027G
920271159
ref: 92027G
COLLAR,25.2X29.8X23.5
920271159
€ 12.00
92027H
920271160
ref: 92027H
COLLAR,25.2X29.8X23.6
920271160
€ 12.00
92027I
920271161
ref: 92027I
COLLAR,25.2X29.8X23.7
920271161
€ 12.00
92027J
920271162
ref: 92027J
COLLAR,25.2X29.8X23.8
920271162
€ 12.00
92027K
920271163
ref: 92027K
COLLAR,25.2X29.8X23.9
920271163
€ 12.00
92027L
920271164
ref: 92027L
COLLAR,25.2X29.8X24
920271164
€ 12.00
92027M
920271165
ref: 92027M
COLLAR,25.2X29.8X24.1
920271165
€ 12.00
92037
43064006
ref: 92037
GROMMET,BRAKE HOSE
43064006
€ 2.50
92037A
920371873
ref: 92037A
CLAMP
920371873
€ 6.00
92043
920431279
ref: 92043
PIN,11.5X14X14
920431279
€ 3.00
92045
920451165
ref: 92045
BEARING-BALL,6305C2
920451165
€ 44.00
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
920491017
€ 6.50
92049A
920491038
ref: 92049A
OIL SEAL,TC35527
920491038
€ 12.50
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
920551044
ref: 92055
RING-O,ID=18.64
920551044
€ 3.00
92062
920621066
ref: 92062
NOZZLE,6X8
€ 2.50
92062A
920621067
ref: 92062A
NOZZLE,10X10
€ 4.00
92116
921161062
ref: 92116
BEARING-ROLLER,HI-CAP
921161062
€ 41.00
92116A
921161063
ref: 92116A
BEARING-ROLLER,HI-CAP
€ 49.50
92143
920271968
ref: 92143
COLLAR,25.3X36X10
€ 15.50
92144
921441193
ref: 92144
SPRING,CAM DAMPER
€ 52.00
