REAR MASTER CYLINDER ('80 H1)
KZ750H3 1982 USA CANADA / LTD

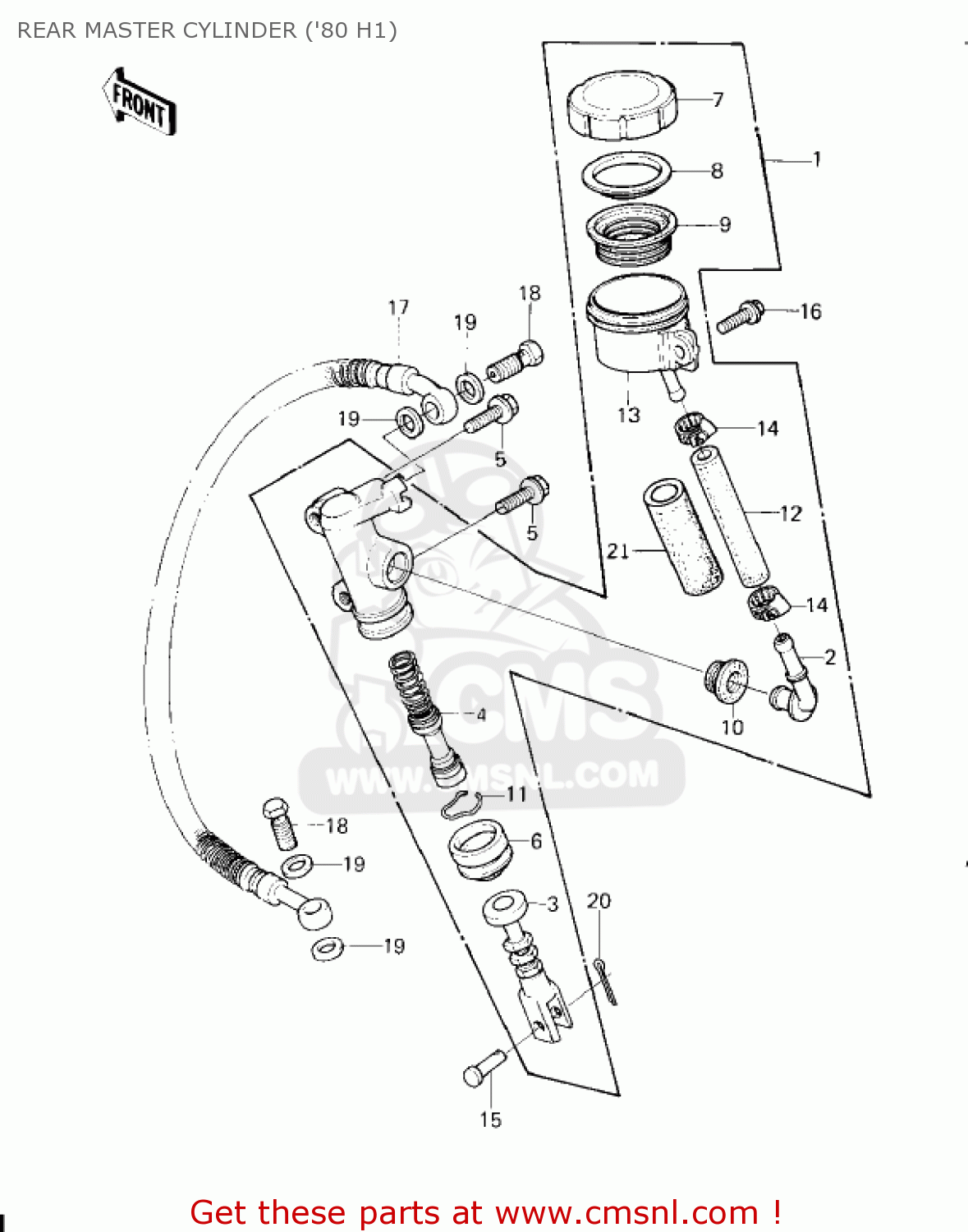

Rear master cylinder ('80 h1) diagram KZ750H3 1982 USA CANADA / LTD
REAR MASTER CYLINDER ('80 H1) KZ750H3 1982 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
430151054
ref: 1
CYLINDER ASSY,RR MAST
€ 222.00
1
430151072
ref: 1
F/NO. 005842~
MASTER CYLINDR ASY,RR
€ 228.00
2
131591005
ref: 2
CONNECTOR
€ 8.00
3
430101004
ref: 3
ROD-ASSY-BRAKE
€ 74.50
4
430201019
ref: 4
PISTON-COMP-BRAKE
€ 63.50
5
920011095
ref: 5
BOLT,8X28
€ 4.50
6
490161031
ref: 6
COVER-SEAL,BRAKE PIST
€ 7.50
7
430261010
ref: 7
CAP,OIL CUP
€ 22.50
8
430271005
ref: 8
PLATE-DIAPHRAGM
€ 4.50
9
430281016
ref: 9
DIAPHRAGM
€ 15.00
10
430491008
ref: 10
PACKING (NAS)
€ 9.00
11
43058004
ref: 11
RING,ROD STOPPER
€ 4.50
12
430591058
ref: 12
HOSE,BRAKE,8X12X175.5
€ 9.50
12
430591066
ref: 12
F/NO. 005842~
HOSE-BRAKE,8X12X163
€ 13.50
13
430781008
ref: 13
RESERVIOR
€ 13.50
14
920371154
ref: 14
CLAMP,BRAKE HOSE
€ 6.50
15
920431013
ref: 15
PIN
€ 6.50
16
130B0620
ref: 16
BOLT,HEX HEAD,6X20
€ 2.50
17
430591194
ref: 17
HOSE-BRAKE,L=395
€ 59.00
18
920021888
ref: 18
BOLT,OIL,L=23
€ 3.50
19
43067001
ref: 19
WASHER,10.5X15X1.5
€ 1.50
20
550D2015
ref: 20
PIN-COTTER,2.0X15
€ 1.00
21
430591068
ref: 21
HOSE,BRAKE,OUTSIDE
€ 4.50
