FRAME FITTINGS ('80 H1)
KZ750H3 1982 USA CANADA / LTD

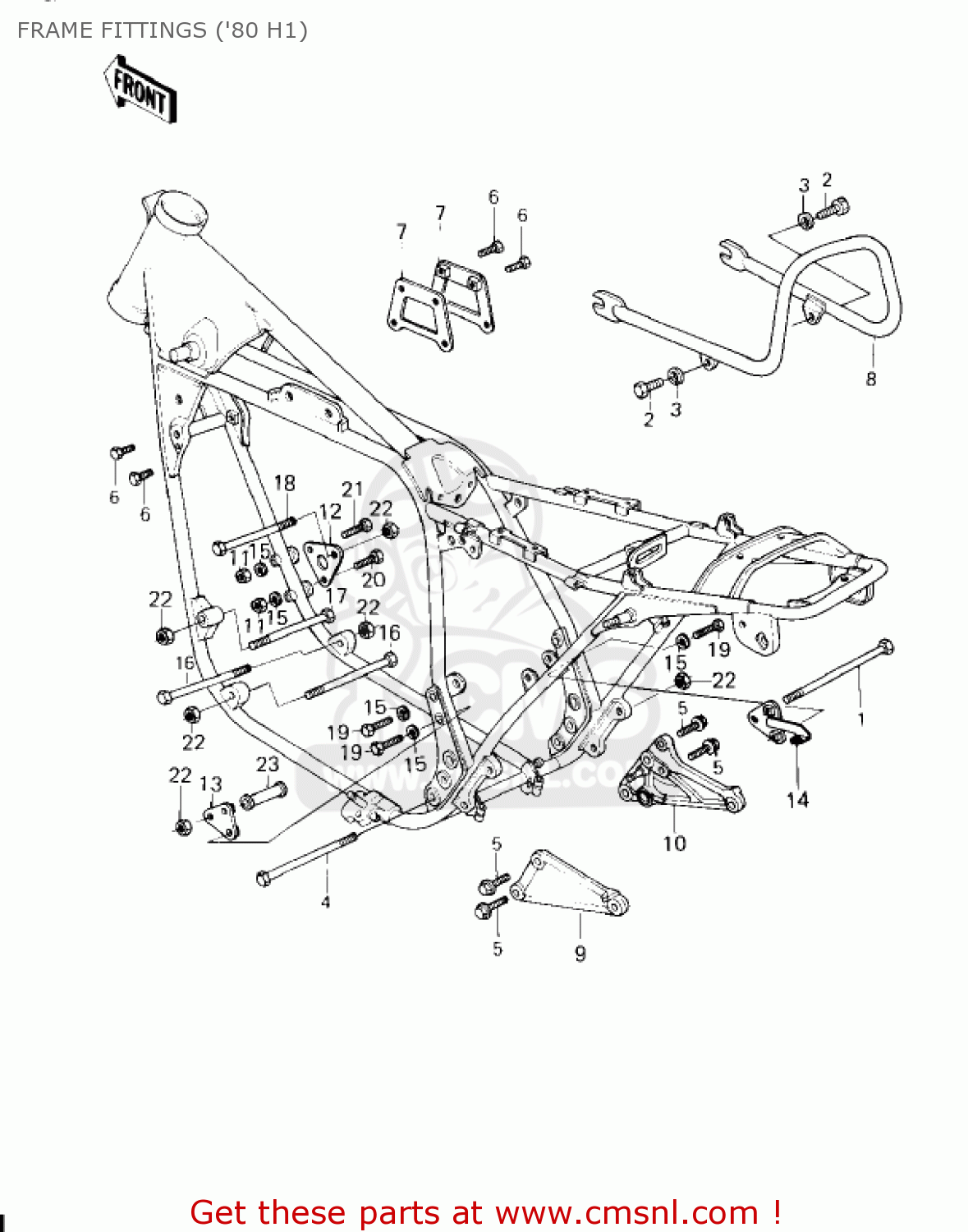

Frame fittings ('80 h1) diagram KZ750H3 1982 USA CANADA / LTD
FRAME FITTINGS ('80 H1) KZ750H3 1982 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
92091023
ref: 1
BOLT-ENGINE MOUNTING
€ 15.50
2
110N0818
ref: 2
BOLT,HEX HEAD,8X18
€ 1.50
3
461F0800
ref: 3
WASHER-SPRING,8MM
€ 0.50
4
92091032
ref: 4
BOLT,HEX HEAD,10X219
€ 14.50
5
920011095
ref: 5
BOLT,8X28
€ 4.50
6
920011171
ref: 6
BOLT,HEX HEAD,6X12
€ 2.00
7
210481001
ref: 7
PLATE-COIL
€ 14.00
8
321091016
ref: 8
GRIP,FRAME
€ 50.50
9
350111080
ref: 9
STAY,MUFFLER,LH
€ 51.50
10
350111081
ref: 10
STAY,MUFFLER,RH
€ 47.50
11
311B0800
ref: 11
NUT,8MM
€ 0.50
12
32030063
ref: 12
PLATE, FRONT ENG. MTY
€ 3.50
13
32030064
ref: 13
PLATE,REAR ENG.MTY,LH
€ 6.50
14
320291129
ref: 14
BRACKET-ENGINE,RR,RH
€ 11.50
15
461F0800
ref: 15
WASHER-SPRING,8MM
€ 0.50
16
920011048
ref: 16
BOLT, HEX HEAD, 10X84
€ 4.50
17
920011049
ref: 17
BOLT, HEX HEAD, 10X72
€ 4.00
18
920011050
ref: 18
BOLT, HEX HEAD, 10X46
€ 3.50
19
920011230
ref: 19
BOLT,HEX HEAD,8X40
€ 4.00
20
920011581
ref: 20
BOLT,FLANGED,8X60
€ 3.50
21
920011397
ref: 21
BOLT,8X63
€ 1.50
22
92019021
ref: 22
NUT,LOCK,10M/M
€ 2.00
23
92027275
ref: 23
COLLAR,L=54
€ 12.00
