CYLINDER HEAD (KZ750-H2/H3)
KZ750H3 1982 USA CANADA / LTD

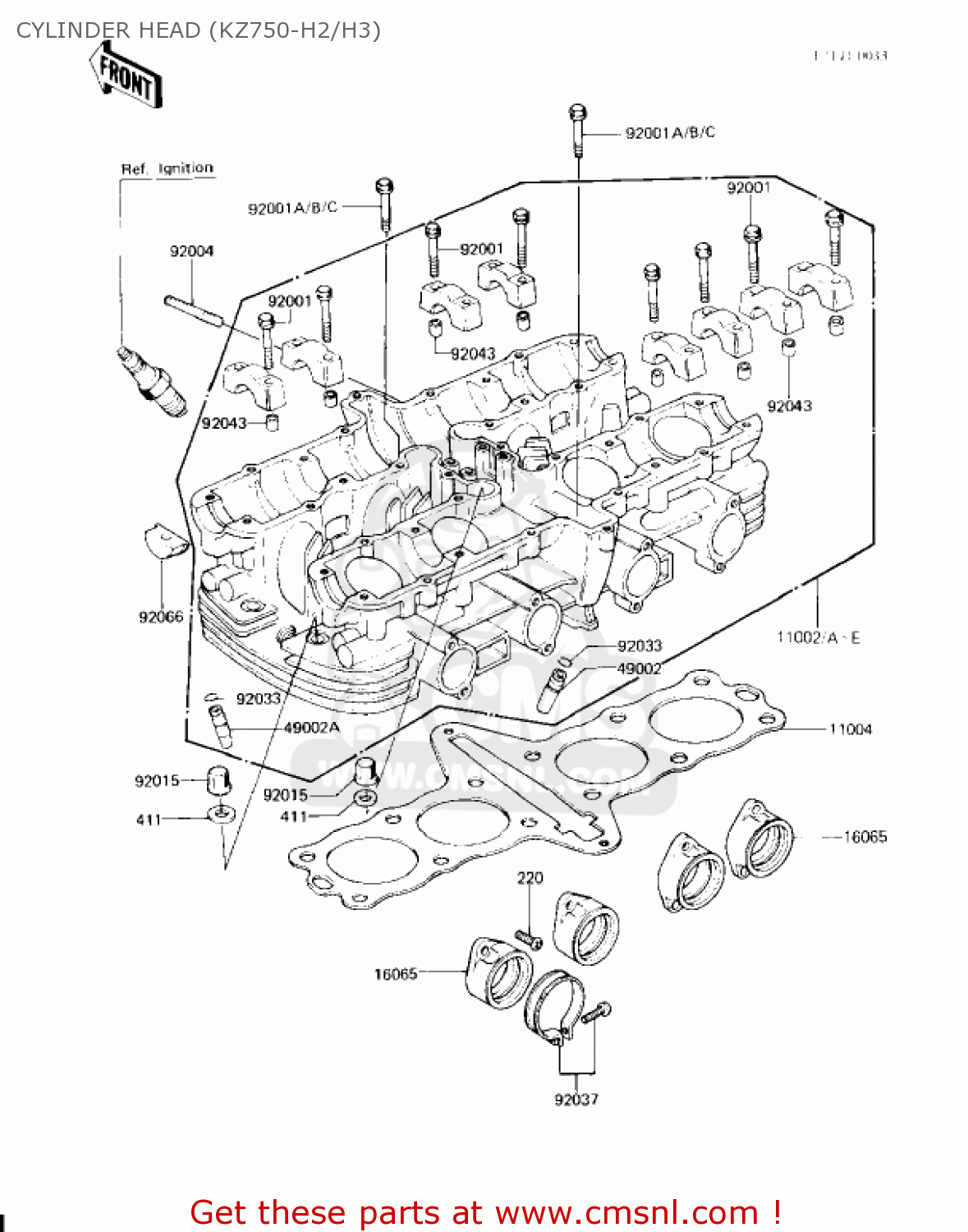

Cylinder head (kz750-h2/h3) diagram KZ750H3 1982 USA CANADA / LTD
CYLINDER HEAD (KZ750-H2/H3) KZ750H3 1982 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
11002
110021082
ref: 11002
US
HEAD-ASSY-CYLINDER,SI
€ 1,193.00
11002A
110021069
ref: 11002A
CN
HEAD-ASSY-CYLINDER,SI
€ 916.00
11002B
110021082
ref: 11002B
HEAD-ASSY-CYLINDER,SI
€ 1,193.00
11002C
110021082
ref: 11002C
HEAD-ASSY-CYLINDER,SI
€ 1,193.00
11002D
110021082
ref: 11002D
CN
HEAD-ASSY-CYLINDER,SI
€ 1,193.00
11002E
110021083
ref: 11002E
CN
HEAD-ASSY-CYLINDER,SL
€ 916.00
11004
110041107
ref: 11004
GASKET-HEAD,CYLINDER (MCA)
€ 145.50
16065
160651132
ref: 16065
HOLDER-CARBURETOR
€ 19.50
49002
12013009
ref: 49002
GUIDE-VALVE,INTAKE
€ 18.00
49002A
490021002
ref: 49002A
GUIDE,EXHAUST VALVE
€ 16.00
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92001A
920011445
ref: 92001A
( - KZ750EE040615)
BOLT,FLANGED,8X43
€ 6.00
92001B
920011445
ref: 92001B
BOLT,FLANGED,8X43
€ 6.00
92001C
920011445
ref: 92001C
(KZ750EE040616 - )
BOLT,FLANGED,8X43
€ 6.00
92004
92004066
ref: 92004
STUD, 6X27
€ 3.50
92015
92015076
ref: 92015
NUT,FLANGED CAP,10MM
€ 9.00
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
€ 0.50
92037
92037061
ref: 92037
CLAMP
€ 10.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92066
920661111
ref: 92066
PLUG,CAMSHAFT,11.35X1
€ 8.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
