CLUTCH ('81'-83 H2/H3/H4)
KZ750H3 1982 USA CANADA / LTD

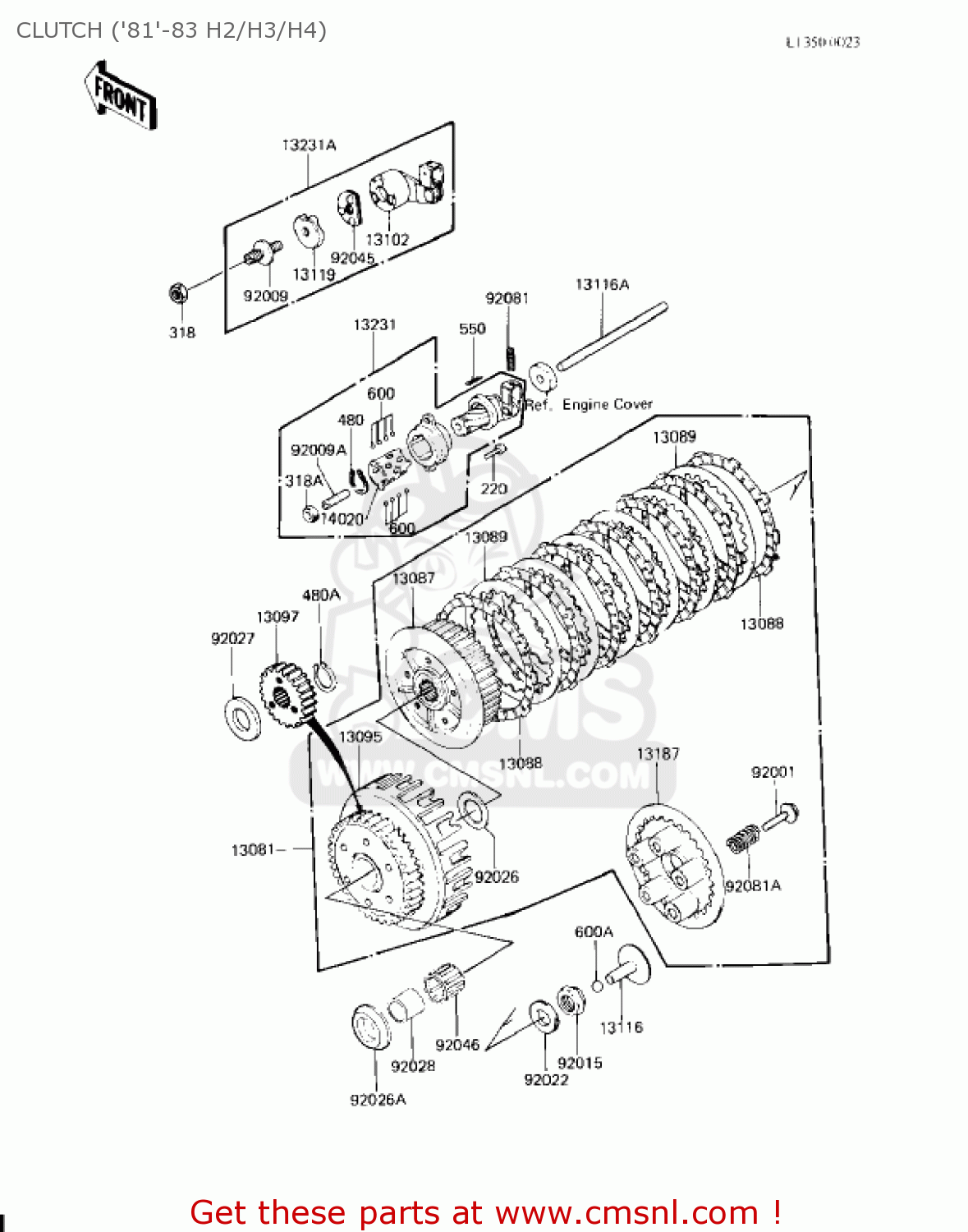

Clutch ('81'-83 h2/h3/h4) diagram KZ750H3 1982 USA CANADA / LTD
CLUTCH ('81'-83 H2/H3/H4) KZ750H3 1982 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
13081
130811034
ref: 13081
CLUTCH ASSY
€ 386.50
13087
13087043
ref: 13087
HUB-CLUTCH
€ 131.00
13088
13088030
ref: 13088
PLATE-FRICTION (NAS)
€ 14.50
13089
13089022
ref: 13089
PLATE-CLUTCH (NAS)
€ 8.50
13095
130951033
ref: 13095
HOUSING,CLUTCH
€ 506.00
13097
13121037
ref: 13097
GEAR, 29T
€ 101.50
13102
131021008
ref: 13102
RELEASE-COMP-CLUTCH
€ 34.50
13116
13116022
ref: 13116
ROD-PUSH,CLUTCH SPRIN
€ 15.50
13116A
131161007
ref: 13116A
ROD-PUSH,CLUTCH,8X270
€ 27.00
13119
131191003
ref: 13119
CAM-RELEASE,CLUTCH
€ 11.50
13187
13187006
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 44.50
13231
13231020
ref: 13231
( - JKAKZDH19CA03160
RELEASE ASSY,CLUTCH
€ 57.50
14020
13197004
ref: 14020
RETAINER
€ 1.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92009
920091009
ref: 92009
SCREW,SLOTTED,8M/M
€ 2.50
92009A
92014014
ref: 92009A
SCREW-SLOTTED,8X25
€ 4.00
92015
920151555
ref: 92015
NUT,20MM
€ 9.00
92022
920221116
ref: 92022
WASHER,20.3X36X2.3
€ 5.50
92026
92026022
ref: 92026
SPACER,25.5X47X2.5
€ 6.50
92026A
92026116
ref: 92026A
SPACER,THRUST,T=5.5MM
€ 12.00
92027
92027263
ref: 92027
COLLAR,23X46X4.5
€ 4.00
92028
92028178
ref: 92028
BUSHING,CLUTCH
€ 17.00
92045
920451001
ref: 92045
BEARING,B.CLUTCH
€ 8.00
92046
92046028
ref: 92046
BEARING-NEEDLE,KTV323
€ 20.50
92081
92081069
ref: 92081
SPRING-CLUTCH RELEASE
€ 4.50
92081A
920811176
ref: 92081A
SPRING,CLUTCH
€ 6.50
220
220B0616
ref: 220
( - JKAKZDH19CA03160
SCREW-PAN HEAD,6X16
€ 2.50
318
318B0800
ref: 318
NUT,8MM
€ 0.50
318A
318B0800
ref: 318A
(JKAKZDH19CA031601 -
NUT,8MM
€ 0.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
€ 2.50
480A
480J2200
ref: 480A
CIRCLIP-TYPE-C,22MM
€ 3.00
550
550D1615
ref: 550
PIN-COTTER,1.6X15
€ 1.50
600
600A0400
ref: 600
BALL-STEEL,1/8
€ 2.00
600A
600A1200
ref: 600A
BALL-STEEL,3/8
€ 0.50
