Genuine KZ Kawasaki Parts delivered quickly!
home
METERS ('80 H1)
KZ750H3 1982 USA CANADA / LTD

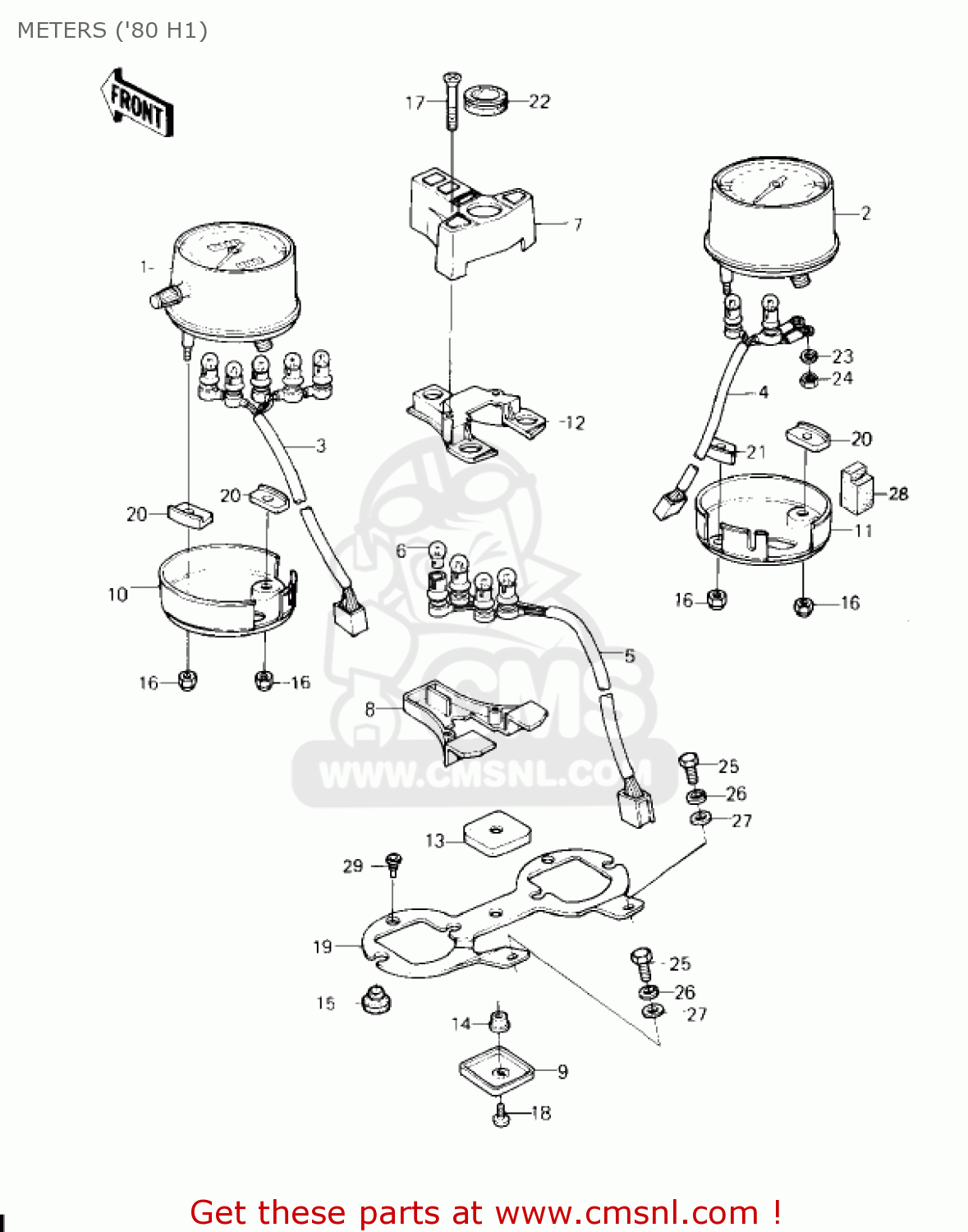

Meters ('80 h1) diagram KZ750H3 1982 USA CANADA / LTD
METERS ('80 H1) KZ750H3 1982 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
250051078
ref: 1
US
SPEEDOMETER,KPH & MPH
€ 460.50
1
250051080
ref: 1
CN
SPEEDOMETER,KPH
€ 349.50
2
250151062
ref: 2
TACHOMETER,X1000RPM
€ 174.50
3
230081060
ref: 3
SPEEDOMETER SOCKET
€ 62.50
4
230081062
ref: 4
SOCKET,TACHOMETER
€ 18.50
5
230081061
ref: 5
SOCKET,PILOT BOX
€ 48.50
6
92069018
ref: 6
BULB 12V 3W
€ 4.00
7
250231021
ref: 7
COVER,PILOT BOX,UPPER
€ 57.00
8
140251226
ref: 8
COVER,PILOT BOX,LWR
€ 23.50
9
140251227
ref: 9
COVER,METER BRACKET
€ 8.00
10
140251224
ref: 10
COVER,SPEEDOMETER
€ 95.50
11
140251225
ref: 11
COVER,TACHOMETER
€ 77.50
12
131691268
ref: 12
PLATE,SOCKET
€ 34.00
13
920751255
ref: 13
DAMPER RUBBER
€ 7.50
14
25019023
ref: 14
DAMPER RUBBER,METER
€ 2.50
15
920751150
ref: 15
DAMPER,METER FITTING
€ 4.50
16
322N0500
ref: 16
NUT-CAP,5MM
€ 2.00
17
920091093
ref: 17
SCREW,CNTRSNK,4X35
€ 2.00
18
920091040
ref: 18
SCREW,TAPPING,4X10
€ 2.50
19
250081030
ref: 19
BRACKET,METER
€ 64.00
20
920751192
ref: 20
DAMPER,METER
€ 12.50
21
920751265
ref: 21
DAMPER RUBBER,METER
€ 13.50
22
920751256
ref: 22
DAMPER,PILOT BOX
€ 9.00
23
461F0400
ref: 23
WASHER-SPRING,4MM
€ 0.50
24
312B0400
ref: 24
NUT-HEX
€ 0.50
25
112B0614
ref: 25
BOLT-UPSET 6X14
€ 2.50
26
461F0600
ref: 26
WASHER-SPRING,6MM
€ 0.50
27
411B0600
ref: 27
WASHER-PLAIN,6MM
€ 0.50
28
920751266
ref: 28
DAMPER RUBBER,METER
€ 7.00
29
920751149
ref: 29
DAMPER,METER
€ 4.50
