Genuine KZ Kawasaki Parts delivered quickly!


SWING ARM/SHOCK ABSORBERS

KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH

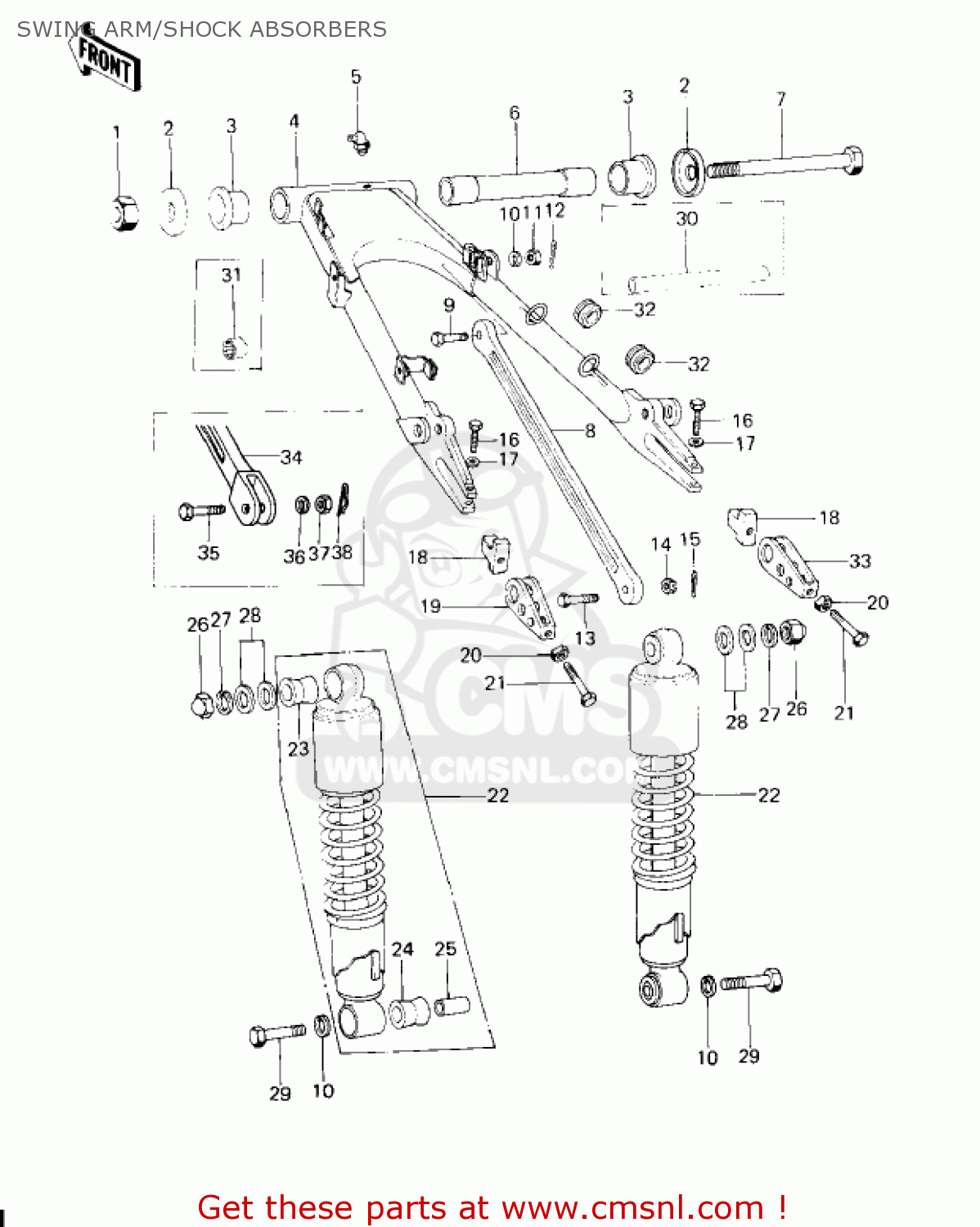

Swing arm/shock absorbers diagram KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH

SWING ARM/SHOCK ABSORBERS KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH
SWING ARM/SHOCK ABSORBERS KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH
SWING ARM/SHOCK ABSORBERS KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
92019012
ref: 1
NUT,LOCK,16MM
92019012
€ 11.00
2
33035008
ref: 2
KZ660-C1
CAP,SWING ARM
33035008
€ 8.50
2
33035009
ref: 2
KZ650-C2~
CAP,SWING ARM
33035009
€ 10.50
3
33033009
ref: 3
KZ650-C1
BUSHING,SWING ARM
33033009
€ 57.00
4
330011007
ref: 4
KZ650-C1
SWING ARM
€ 198.50
4
330011080
ref: 4
KZ650-C2~
ARM-COMP-SWING
€ 201.00
5
92005002
ref: 5
GREASE NIPPLE
92005002
€ 4.00
6
33034024
ref: 6
KZ650-C1
SLEEVE, SWING ARM
33034024
€ 54.50
7
33032050
ref: 7
SHAFT-SWING ARM
33032050
€ 55.50
8
43007047
ref: 8
F/NO.000001~023100
TORQUE LINK
43007047
€ 19.50
9
92003218
ref: 9
BOLT, HEX HEAD, 10X39
92003218
€ 5.50
10
461F1000
ref: 10
WASHER-SPRING,10MM
461F1000
€ 0.50
11
314B1000
ref: 11
NUT,10MM
314B1000
€ 0.50
12
554A0800
ref: 12
PIN-SNAP,8MM
554A0800
€ 1.00
13
92003197
ref: 13
F/NO000001~023100
BOLT,RR TORQUE LINK
92003197
€ 7.00
14
42045021
ref: 14
F/NO000001~023100
NUT,12M/M
42045021
€ 3.50
15
550D3025
ref: 15
F/NO000001~023100
PIN-COTTER,3.0X25
550D3025
€ 0.50
16
920011577
ref: 16
BOLT,FLANGED,8X35
920011577
€ 2.50
17
461F0800
ref: 17
WASHER-SPRING,8MM
461F0800
€ 0.50
18
33044002
ref: 18
STOPPER,CHAIN ADJUSTE
33044002
€ 14.00
19
33040056
ref: 19
ADJUSTER-CHAIN
33040056
€ 16.50
20
312B0800
ref: 20
NUT,8MM
312B0800
€ 0.50
21
920011399
ref: 21
BOLT,8X50
920011399
€ 6.00
22
45014117
ref: 22
SHOCK ABSORBER, REAR
€ 356.50
23
45017015
ref: 23
BUSHING,SHCK ABS RUB
45017015
€ 6.50
24
45016008
ref: 24
BUSHING,SHOCK ABSORB
45016008
€ 6.50
25
45017012
ref: 25
BUSHING A,SHOK AB RUB
45017012
€ 10.50
26
92020014
ref: 26
NUT,CAP,12MM
92020014
€ 6.50
27
461F1200
ref: 27
WASHER-SPRING,12MM
461F1200
€ 0.50
28
410B1200
ref: 28
WASHER-PLAIN-SMALL,12
410B1200
€ 0.50
29
113N1035
ref: 29
BOLT-HEX HEAD,10X35
113N1035
€ 6.00
30
420361012
ref: 30
KZ650-C2~
SLEEVE,16.1X22X225.5
420361012
€ 26.50
31
920461115
ref: 31
KZ650-C2~
BEARING-NEEDLE,HK2216
920461115
€ 24.00
32
43064007
ref: 32
43064007
33
330401003
ref: 33
F/NO.000001~023100
ADJUSTER,CHAIN,R.H
330401003
€ 13.50
33
33040056
ref: 33
F/NO023101~
ADJUSTER-CHAIN
33040056
€ 16.50
34
43007049
ref: 34
F/NO.023101~
TORQUE LINK, REAR HUB
43007049
€ 36.50
35
920011145
ref: 35
F/NO.023101~
BOLT,10X47
920011145
€ 4.00
36
461F1000
ref: 36
F/NO.023101~
WASHER-SPRING,10MM
461F1000
€ 0.50
37
314B1000
ref: 37
F/NO.023101~
NUT,10MM
314B1000
€ 0.50
38
554A0800
ref: 38
F/NO.023101~
PIN-SNAP,8MM
554A0800
€ 1.00
