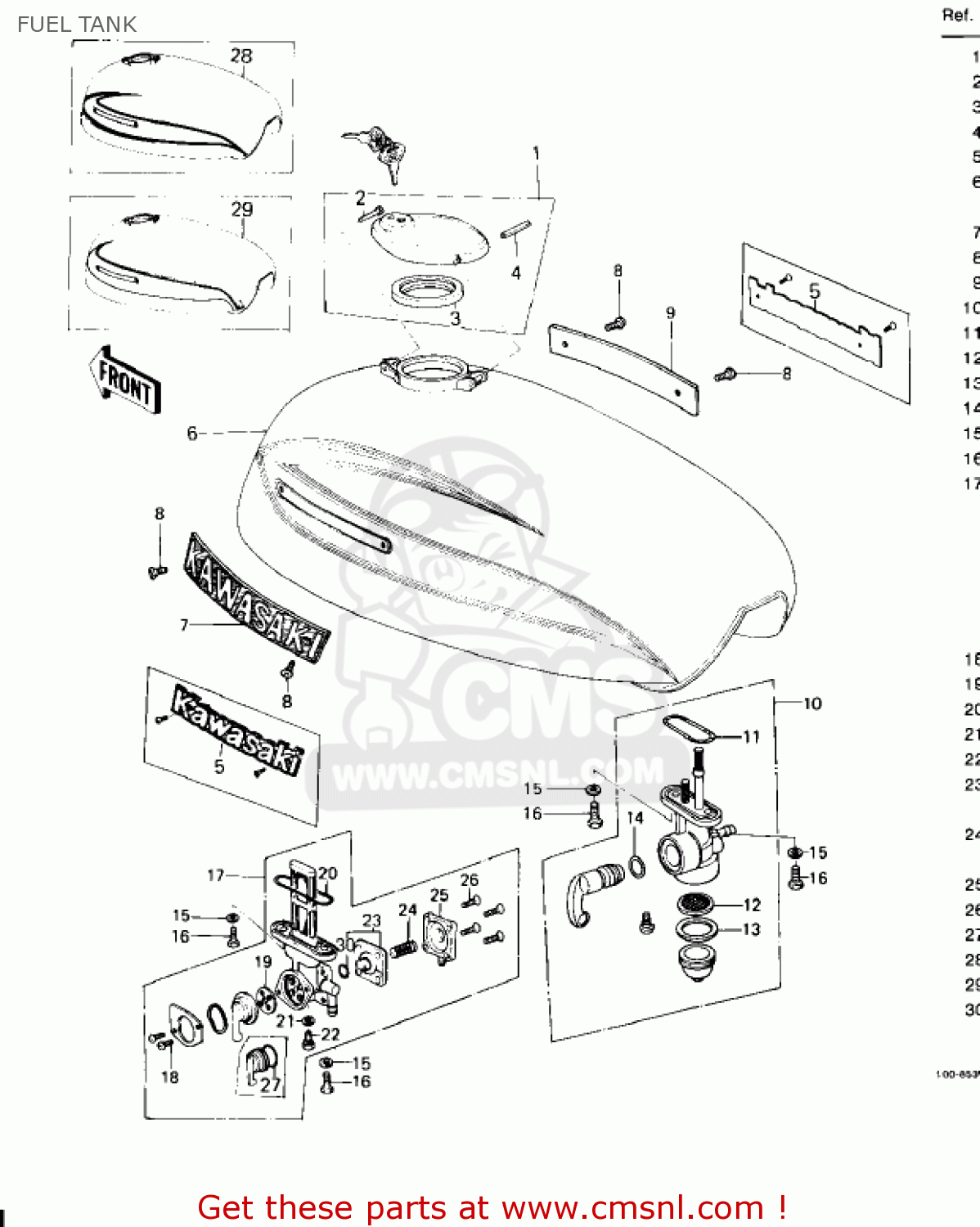

FUEL TANK

ref

part #

description

quantity

1

51048012
ref: 1

CAP-ASSY-TANK,FUEL

€ 72.00

2

92043126
ref: 2

PIN,3X27

€ 2.50

3

51059008
ref: 3

GASKET,FUEL TANK CAP (NAS)

€ 7.00

4

92043127
ref: 4

PIN,CAP HINGE

€ 3.00

5

560141037
ref: 5
KZ650-C3

EMBLEM,FUEL TANK

€ 41.50

6

510011157M
ref: 6
KZ650-C1

FUEL TANK,BLUE

€ 1,838.50

6

510011157N
ref: 6
KZ650-C1

FUEL TANK,MOONDUST SILVER

€ 1,838.50

7

56013058
ref: 7
KZ650-C1/C2

EMBLEM,FUEL TANK,LH

€ 62.50

8

221C0306
ref: 8

SCREW-CSR-CROS

€ 0.50

9

56014065
ref: 9
KZ650-C1/C2

EMBLEM,FUEL TANK,R.H.

€ 62.50

10

51023057
ref: 10
KZ650-C1

TAP-ASSY,FUEL

€ 79.50

11

51039010
ref: 11
KZ650-C1

RING,TAP FLANGED

€ 4.50

12

51038007
ref: 12
KZ650-C1

FILTER,FUEL

€ 8.50

13

51037010
ref: 13
KZ650-C1

GASKET-FUEL COCK CUP (NAS)

€ 3.50

14

670B2010
ref: 14
KZ650-C1

O RING,10MM

€ 1.00

15

92022183
ref: 15

WASHER,6.2X11X1.5

€ 2.50

16

920011091
ref: 16

BOLT,6X20,FUEL TAP

€ 2.50

17

510231023
ref: 17
KZ650-C2

TAP ASSY,FUEL

€ 115.00

18

220B0308
ref: 18
KZ650-C2

SCREW-PAN-CROS

€ 0.50

19

110091194
ref: 19
KZ650-C2

GASKET,TAP VALVE (NAS)

€ 6.50

20

51039010
ref: 20
KZ650-C2

RING,TAP FLANGED

€ 4.50

21

110091045
ref: 21
KZ650-C2

GASKET,DRAIN BOLT

€ 1.00

22

920011089
ref: 22
KZ650-C2

BOLT,DRAIN

€ 8.00

23

430281004
ref: 23
NO LONGER AVAILABLE

DIAPHRAGM ASSY,TAP

€ 4.50

23

430281015
ref: 23
USE FOR 51023-1023

DIAPHRAGM,TAP

€ 14.50

24

920811055
ref: 24

SPRING,TAP

€ 2.50

24

920811171
ref: 24
USE FOR 51023-1023

SPRING,TAP

€ 2.50

25

161461005
ref: 25
KZ650-C2

COVER-ASSY,TAP DIAPHR

€ 14.00

26

221B0412A
ref: 26
KZ650-C2

SCREW,CNTSNK HD,4X12

€ 2.00

27

920551027
ref: 27
USE FOR 51023-1013/1

RING-O,TAP LEVER

€ 3.50

28

5100150327W
ref: 28
KZ650-C2

TANK,FUEL,M.S.SILVER

€ 713.50

29

5100110167Z
ref: 29
KZ650-C3

TANK,FUEL,L.D.BLUE

€ 612.00

30

670B1504
ref: 30
USE FOR 51023-1023

O RING,4MM

€ 2.50

all assemblies
