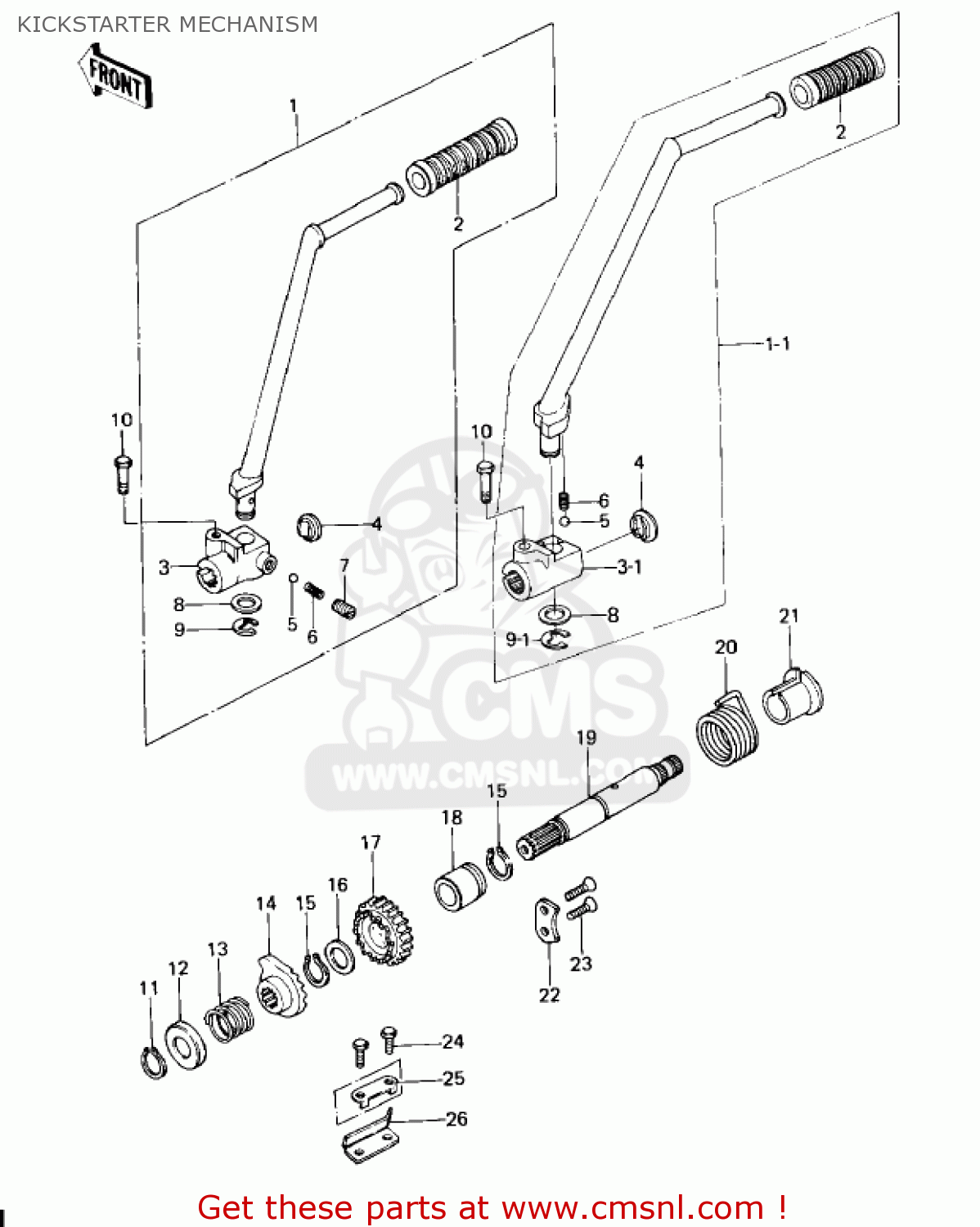

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

130641005
ref: 1

PEDAL ASSY,KICK

€ 179.50

1-1

130641005
ref: 1-1

PEDAL ASSY,KICK

€ 179.50

2

13063004
ref: 2

DAMPER,KICK PEDAL

€ 6.50

3

130611002
ref: 3
USE FOR 13064-1003

BOSS, KICK PEDAL

€ 36.50

3-1

130611008
ref: 3-1
USE FOR 13064-1006

BOSS,KICK PEDAL

€ 29.50

4

92066058
ref: 4

PLUG,A,KICKSTARTER

€ 2.50

5

600A0800
ref: 5

BALL-STEEL,1/4

€ 0.50

6

92081154
ref: 6

SPRING

€ 2.00

7

92066061
ref: 7
USE FOR 1304-1003

PLUG,B,KICKSTARTER

€ 1.50

8

920221019
ref: 8

WASHER,15.2X20X1

€ 3.50

9

482J0100
ref: 9
USE FOR 1304-1003

CIRCLIP-TYPE-E,10MM

€ 0.50

9-1

482J0100
ref: 9-1
USE FOR 1304-1005

CIRCLIP-TYPE-E,10MM

€ 0.50

10

110N0632
ref: 10

BOLT,6X32

€ 2.50

11

480J1900
ref: 11

CIRCLIP-TYPE-C,19MM

€ 1.00

12

92102008
ref: 12

CAP-KICKSTARTER

€ 4.00

13

92081104
ref: 13

SPRING-RATCHET

€ 6.50

14

13078011
ref: 14

RATCHET

€ 58.50

15

480J2000
ref: 15

CIRCLIP-TYPE-C,20MM

€ 1.00

16

92022112
ref: 16

WASHER,20.5X30X1,STEE

€ 6.00

17

13068035
ref: 17

GEAR, KICKSTARTER,20T

€ 33.50

18

92028175
ref: 18

BUSHING,KICK SHAFT

€ 12.50

19

13066045
ref: 19

SHAFT, KICKSTARTER

€ 38.50

20

92082006
ref: 20

SPRING,KICK RETURN

€ 17.00

21

13070009
ref: 21

GUIDE,KICK SPRING

€ 8.00

22

13169007
ref: 22

PLATE-DRUM LEV POSTON

€ 9.00

23

221B0612
ref: 23

SCREW-CNTSNK HD,6X12

€ 1.50

24

112G0614
ref: 24

BOLT-UPSET,6X14

€ 2.50

25

92024075
ref: 25
KZ860-C1/C2

WASHER, LOCK, 6MM

€ 0.50

26

13072018
ref: 26

STOPPER, KICKSTARTER

€ 6.00

all assemblies
