GEAR CHANGE MECHANISM

KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH

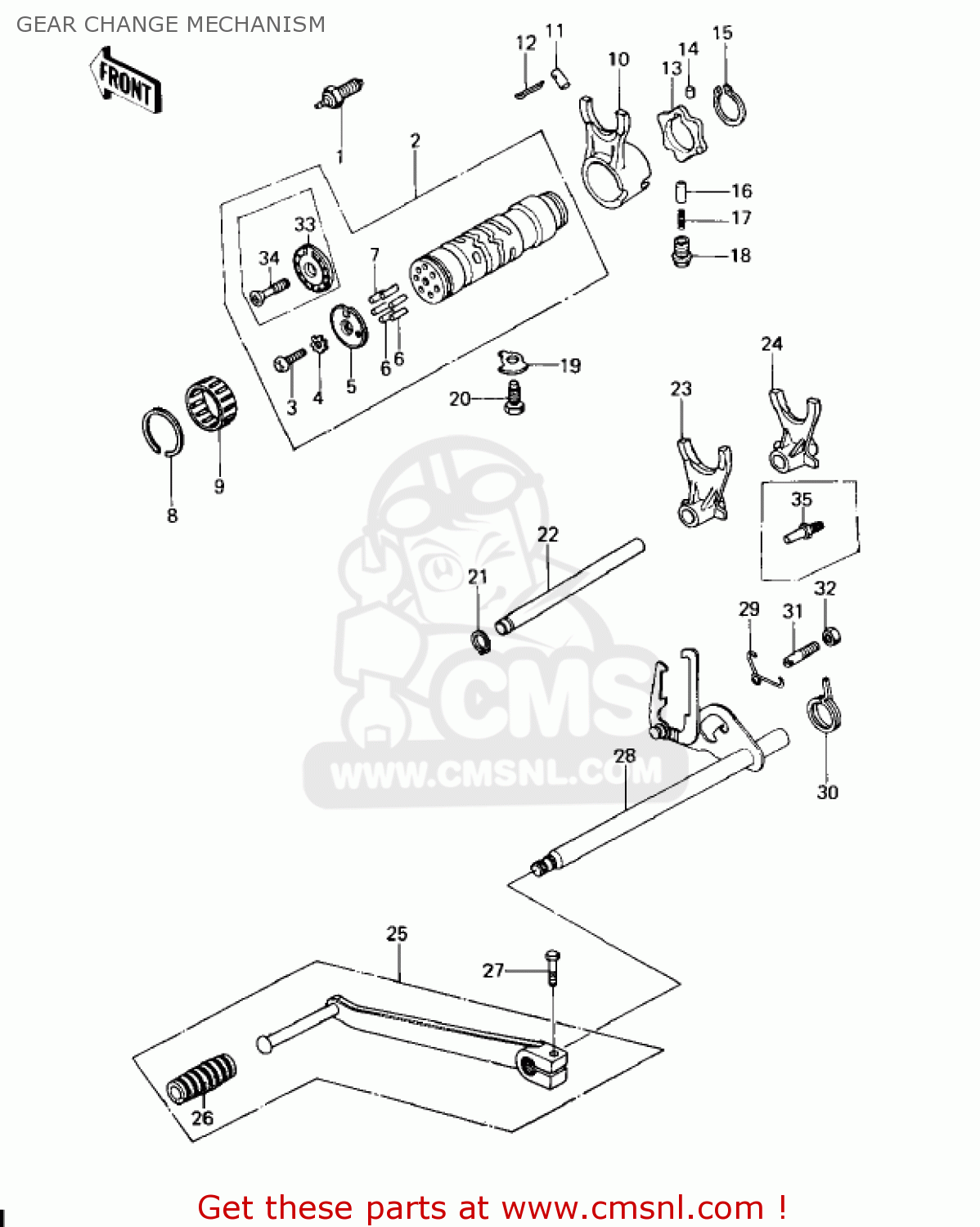

Gear change mechanism diagram KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH

GEAR CHANGE MECHANISM KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH
GEAR CHANGE MECHANISM KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH
GEAR CHANGE MECHANISM KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
131515002
ref: 1
SWITCH,NEUTRAL
131515002
€ 22.50
2
132391005
ref: 2
E/NO. 000101~046147
DRUM ASSY, SHIFT
132391005
€ 79.00
2
132391069
ref: 2
E/NO. 0001~071
DRUM-ASSY-CHANGE
132391069
€ 148.50
2
132391069
ref: 2
E/NO. 0732~
DRUM-ASSY-CHANGE
132391069
€ 148.50
3
220B0614
ref: 3
USE FOR 132
SCREW-PAN HEAD,6X14
220B0614
€ 2.00
4
464G0800
ref: 4
USE FOR 132
WASHER, LOCK, 6MM
€ 0.50
5
13142020
ref: 5
(USE FOR 132)
PLATE, SHIFT DRUM PIN
€ 7.00
6
92042030
ref: 6
PIN,GEAR CHNGE DRUM
92042030
€ 2.50
7
92042014
ref: 7
PIN-GEAR CHANGE DRUM
92042014
€ 0.50
8
92033035
ref: 8
RING-SNAP,37MM
92033035
€ 4.00
9
92046051
ref: 9
BEARING-NEEDLE,37BTM4
92046051
€ 23.00
10
?
ref: 10
(KZ-C1)
?
10
131401009
ref: 10
KZ-C2~
FORK-SHIFT,4TH&TOP
131401009
€ 79.00
11
92042021
ref: 11
PIN,DOWEL,8X18
92042021
€ 7.00
12
550D3020
ref: 12
PIN-COTTER,3.0X20
550D3020
€ 2.00
13
131451058
ref: 13
CAM-CHANGE DRUM
131451058
€ 15.00
14
610A0406
ref: 14
ROLLER,4X6
610A0406
€ 2.50
15
480J3000
ref: 15
CIRCLIP-TYPE-C,30MM
480J3000
€ 3.50
16
92043076
ref: 16
PIN-NEUTRAL PISTON
92043076
€ 8.00
17
92061112
ref: 17
UNAVAILABLE IN PRICE BOOK
€ 0.00
18
92001131
ref: 18
BOLT,10MM
92001131
€ 14.00
19
92024074
ref: 19
WASHER,LOCK,10MM
92024074
€ 2.50
20
92001174
ref: 20
BOLT, HEX HEAD, 10X26
92001174
€ 4.50
21
480J1200
ref: 21
CIRCLIP-TYPE-C,12MM
480J1200
€ 0.50
22
490475003
ref: 22
ROD-SHIFT
490475003
€ 21.50
23
13140070
ref: 23
KZ-C1
SHIFT FORK,2ND & 3RD
€ 79.00
23
131401008
ref: 23
KZ-C2~
FORK-SHIFT,LOW,2ND&3R
131401008
€ 79.00
24
13140069
ref: 24
KZ-C1
SHIFT FORK,LOW
13140069
€ 46.50
24
131401006
ref: 24
KZ-C2~
SHIFT FORK,1,4&2,3
€ 51.00
25
13242022
ref: 25
LEVER-ASSY-CHANGE,PED
13242022
€ 44.50
26
921601036
ref: 26
DAMPER,CHANGE PEDAL
921601036
€ 3.50
27
112G0620
ref: 27
BOLT 6X20
112G0620
€ 1.00
28
13161042
ref: 28
LEVER-COMP-CHANGE SHA
13161042
€ 102.50
29
92063018
ref: 29
MAIN JET,#160A
92063018
€ 9.50
30
92063028
ref: 30
JET-MAIN,#260
92063028
€ 8.50
31
92043067
ref: 31
KZ0-C1/C2
PIN, SHIFT DRUM RETURN SPRING
€ 0.00
32
312B0800
ref: 32
KZ0-C1/C2
NUT,8MM
312B0800
€ 0.50
33
130911104
ref: 33
USE FOR 1323-1010
HOLDER,CHANGE DRUM PI
130911104
€ 16.50
34
221B0620
ref: 34
USE FOR 1323-1010
SCREW-CNTSNK HD,6X20
221B0620
€ 0.50
35
920011401
ref: 35
KZ-C3
BOLT,RETURN SPRING
920011401
€ 3.00
