REAR WHEEL/TIRE/HUB/CHAIN

KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH

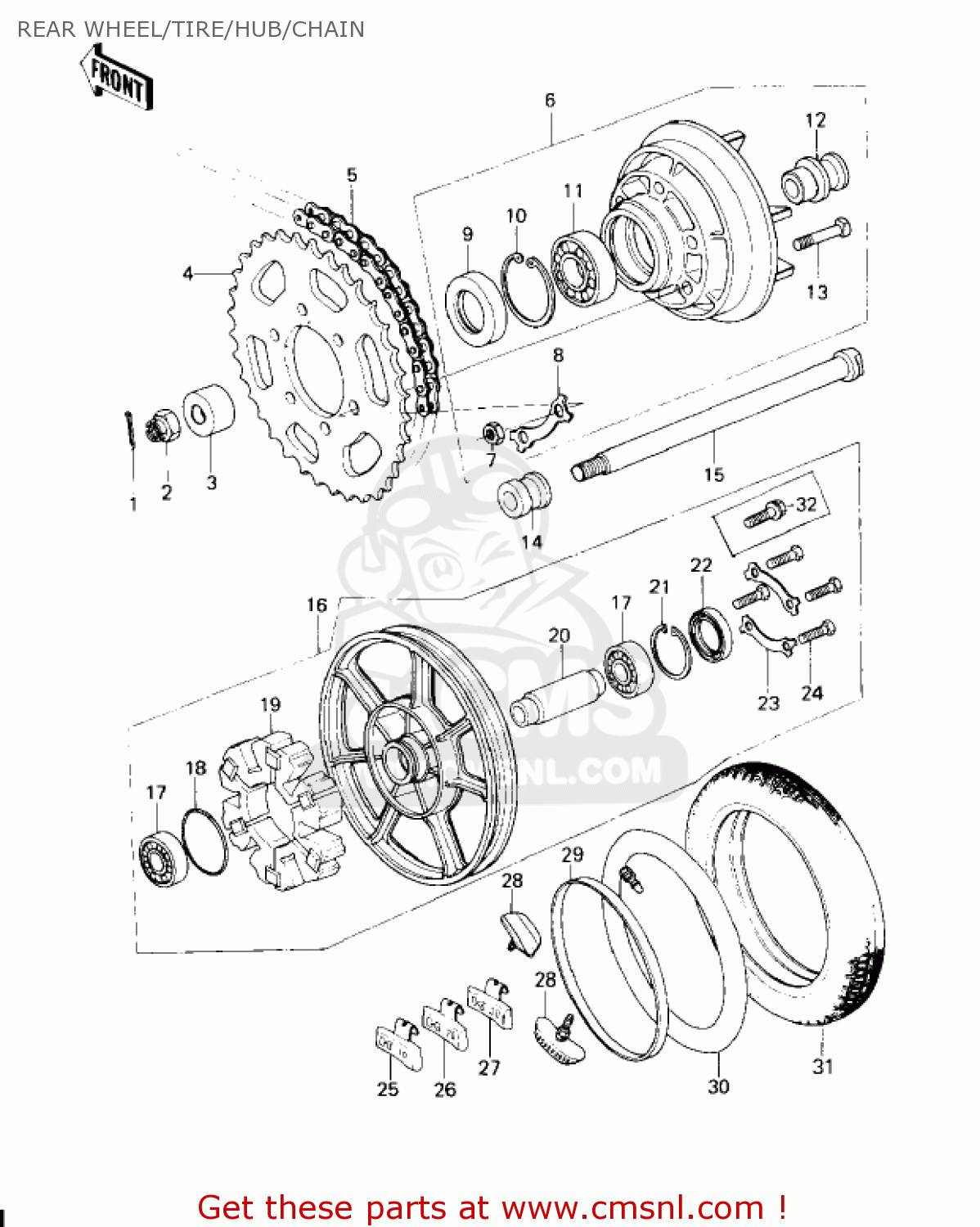

Rear wheel/tire/hub/chain diagram KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH

REAR WHEEL/TIRE/HUB/CHAIN KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH
REAR WHEEL/TIRE/HUB/CHAIN KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH
REAR WHEEL/TIRE/HUB/CHAIN KZ650C3 CUSTOM 1979 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
550D4035
ref: 1
PIN-COTTER,4.0X35
550D4035
€ 1.00
2
92015055A
ref: 2
NUT,CASTLE,16MM
€ 8.00
3
920271023
ref: 3
COLLAR,REAR AXLE,22MM
920271023
€ 26.00
4
420411003
ref: 4
REAR SPROCKET,42T
420411003
€ 48.50
5
920571232
ref: 5
CHAIN,DRIVE,EK50MV-OX
920571232
€ 167.50
6
420331003
ref: 6
COUPLING ASSY,REAR HB
€ 86.00
7
42045005A
ref: 7
NUT,10MM
42045005A
€ 5.00
8
92088007
ref: 8
WASHER,LOCK
92088007
€ 8.00
9
92050027
ref: 9
OIL SEAL
92050027
€ 13.50
10
920331044
ref: 10
CIRCLIP 62 M/M
920331044
€ 7.50
11
601B6206
ref: 11
BEARING-BALL,#6206C3
601B6206
€ 19.50
12
420361005
ref: 12
SLEEVE,REAR HUB COUPL
420361005
€ 31.50
13
92003087
ref: 13
BOLT-RR SPRCKT 10X49
92003087
€ 4.00
14
920271022
ref: 14
F/NO. 000001-023100
COLLAR,REAR AXLE,33MM
€ 9.50
14
920271174
ref: 14
F/NO. 023101
COLLAR,39M/M,REAR
920271174
€ 15.00
15
410681086
ref: 15
AXLE,RR
410681086
€ 49.00
16
41073?1005
ref: 16
KZ650-C1
41073?1005
16
410731036
ref: 16
F/NO. 010001-021725
SOLID WHEEL ASSY,REAR
410731036
€ 448.00
16
410731036
ref: 16
F/NO. 021728-023100
SOLID WHEEL ASSY,REAR
410731036
€ 448.00
16
410731042
ref: 16
F/NO. 023101
SOLID WHEEL ASSY
€ 412.00
17
601B6205ZZ
ref: 17
USE FOR 41073-1006/1
BEARING-BALL,#6205ZZC
€ 24.00
17
601B6205Z
ref: 17
USE FOR 41073-1042
BALL BEARING,#6205ZC3
601B6205Z
€ 24.00
18
671B2565
ref: 18
O RING,65MM
671B2565
€ 6.00
19
42014033
ref: 19
DAMPER,RR HUB SHOCK,1
42014033
€ 85.50
20
920271021
ref: 20
COLLAR,REAR HUB BRG
920271021
€ 28.00
21
920331043
ref: 21
RING,SNAP,56.2M/M
920331043
€ 6.00
22
92052006
ref: 22
OIL SEAL WTC35527
92052006
€ 6.50
23
92088023
ref: 23
USE FOR 41073-1006/1
WASHER,LOCK
92088023
€ 6.00
24
92001160
ref: 24
USE FOR 41073-1006/1
BOLT
92001160
€ 1.50
25
410751001
ref: 25
USE FOR 41073-1006/1
WEIGHT,BALANCE,10GR
€ 6.00
25
410751011
ref: 25
USE FOR 41073-1036/1
BALANCER WHEEL 10G
410751011
€ 7.50
26
410751002
ref: 26
USE FOR 41073-1006/1
WEIGHT,BALANCE,20GR
€ 6.00
26
410751012
ref: 26
USE FOR 41073-1036/1
BALANCER WHEEL 20G
410751012
€ 7.50
27
410751003
ref: 27
USE FOR 41073-1006/1
WEIGHT,BALANCE,30GR
€ 4.50
27
410751013
ref: 27
USE FOR 41073-1036/1
BALANCER WHEEL 30G
410751013
€ 7.50
28
410241001
ref: 28
STOPPER-RIM,2.15-RL(D
€ 93.50
29
410231006
ref: 29
BAND,RIM,4.00/5.10-18
€ 7.00
30
41022031
ref: 30
TUBE,3.75/4.00-18
€ 33.00
31
41021039
ref: 31
TIRE, 4.00H-18, D-K87
€ 171.50
32
920011173
ref: 32
USE FOR 41073-1042
BOLT,HEX HEAD,10X30
920011173
€ 6.00
