GEAR CHANGE MECHANISM
KZ550D1 GPZ 1981 USA CANADA

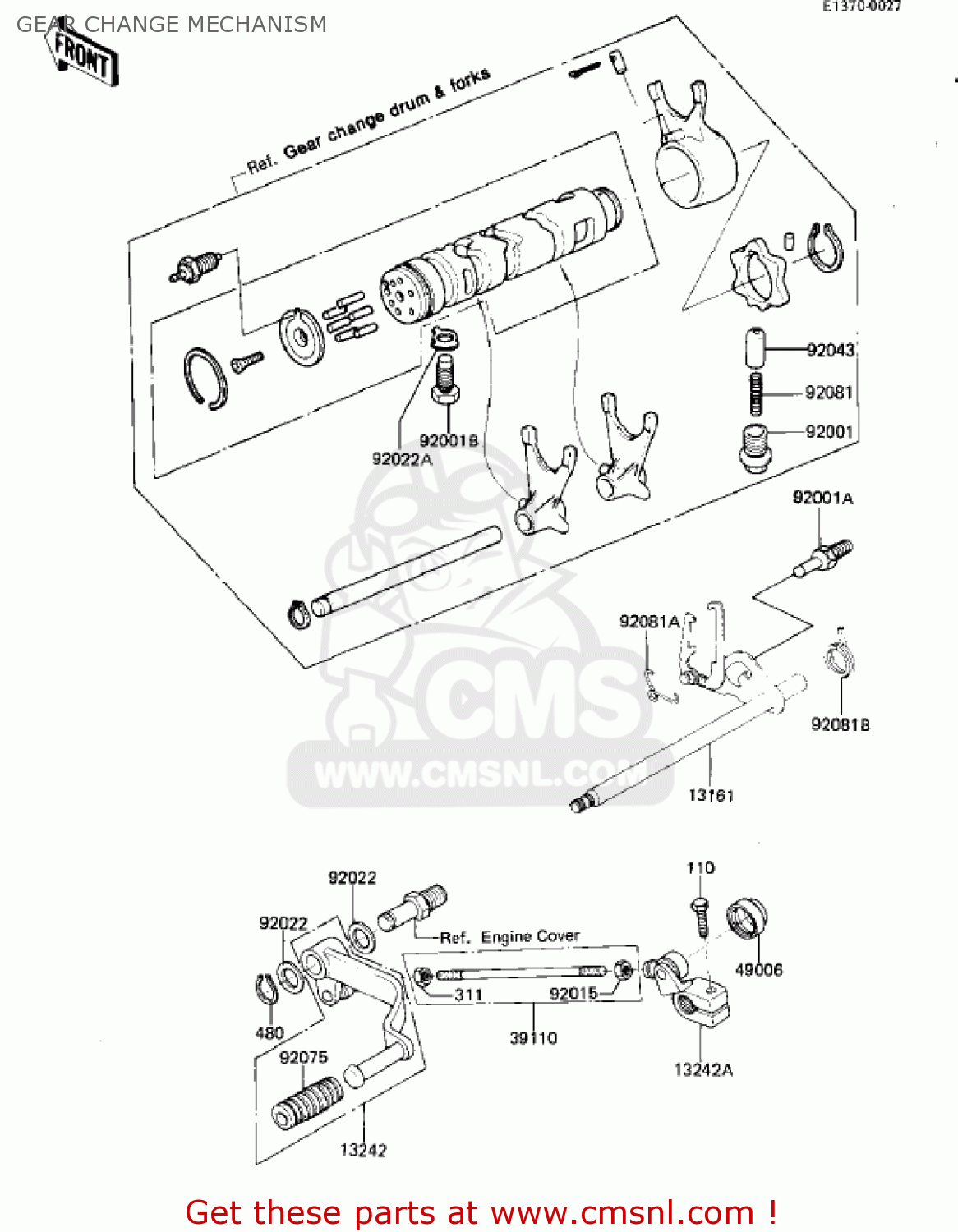

Gear change mechanism diagram KZ550D1 GPZ 1981 USA CANADA
GEAR CHANGE MECHANISM KZ550D1 GPZ 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13161
13161042
ref: 13161
LEVER-COMP-CHANGE SHA
€ 102.50
13242
132421045
ref: 13242
LEVER-ASSY-CHANGE,PED
€ 58.50
13242A
132421057
ref: 13242A
LEVER-ASSY-CHANGE,ROD
€ 20.50
39110
391101004
ref: 39110
ROD-ASSY-TIE,CHANGE
€ 8.00
49006
490061061
ref: 49006
BOOT,CHANGE LEVER
€ 6.00
92001
920011037
ref: 92001
BOLT,NEUTAL POSITION
€ 9.50
92001A
920011401
ref: 92001A
BOLT,RETURN SPRING
€ 3.00
92001B
92001174
ref: 92001B
BOLT, HEX HEAD, 10X26
€ 4.50
92015
920151125
ref: 92015
NUT,6MM
€ 2.50
92022
92022072
ref: 92022
WASHER,12.5X22X1.2
€ 2.50
92022A
92024074
ref: 92022A
WASHER,LOCK,10MM
€ 2.50
92043
92043076
ref: 92043
PIN-NEUTRAL PISTON
€ 8.00
92075
921601036
ref: 92075
DAMPER,CHANGE PEDAL
€ 3.50
92081
92081112
ref: 92081
SPRING
€ 4.00
92081A
92083018
ref: 92081A
SPRING-KICK PAWL
€ 6.00
92081B
92083028
ref: 92081B
SPRING,CHG PEDL RTRN
€ 9.50
110
112G0620
ref: 110
BOLT 6X20
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
€ 0.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
