CARBURETOR PARTS
KZ550D1 GPZ 1981 USA CANADA

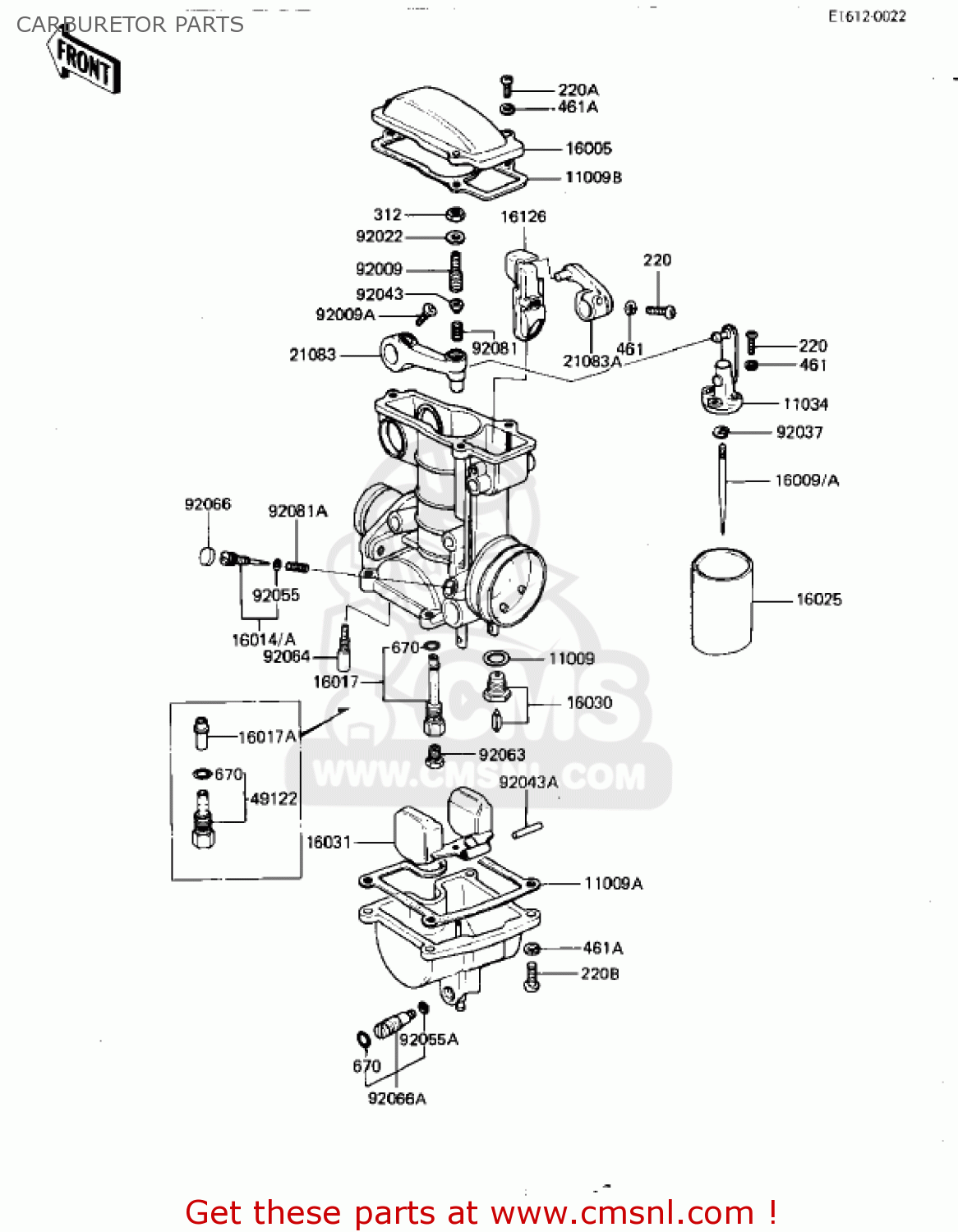

Carburetor parts diagram KZ550D1 GPZ 1981 USA CANADA
CARBURETOR PARTS KZ550D1 GPZ 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091160
ref: 11009
GASKET,FLOAT VALVE (NAS)
€ 4.00
11009A
110091161
ref: 11009A
GASKET,FLOAT CHAMBER (NAS)
€ 11.50
11009B
110091162
ref: 11009B
GASKET,MIXING CHAMP (NAS)
€ 12.00
11034
110341587
ref: 11034
BRACKET ASSY,THROTTLE
€ 45.00
16005
160051008
ref: 16005
TOP,MIXING CHAMBER
€ 25.50
16009
160091060
ref: 16009
US
JET,NEEDLE,#4D92
€ 23.50
16009A
160091061
ref: 16009A
CN
JET NEEDLE,#4D93
€ 24.00
16014
160141019
ref: 16014
US
SCREW,AIR ADJUSTING
€ 6.00
16014A
160141024
ref: 16014A
US
AIR ADJUSTING SCREW
€ 5.50
16017
160171044
ref: 16017
CN
JET-NEEDLE,#V95
€ 33.50
16017A
160171057
ref: 16017A
US
JET,NEEDLE,#V95
€ 30.00
16025
160251038
ref: 16025
VALVE,THROTTLE,CA2.5
€ 41.00
16030
160301009
ref: 16030
VALVE-FLOAT,#1.6
€ 71.50
16031
160311009
ref: 16031
FLOAT
€ 61.00
13126
161261024
ref: 13126
VALVE,CHOKE
€ 65.00
21083
210831006
ref: 21083
ARM,THROTTLE
€ 16.50
21083A
210831007
ref: 21083A
ARM,CHOKE
€ 19.50
49122
491221010
ref: 49122
US
BLEED PIPE
€ 18.50
92009
920091079
ref: 92009
SCREW,ADJUST,THROTTLE
€ 6.00
92009A
920091080
ref: 92009A
SCREW,COUNTERSUNK HD
€ 2.50
92022
920221167
ref: 92022
WASHER,PLAIN,5.1X1.5T
€ 2.50
92037
920371157
ref: 92037
CIRCLIP,JET NEEDLE
€ 2.50
92043
920431065
ref: 92043
PIN,SPRING,THROTTLE
€ 6.50
92043A
920431066
ref: 92043A
PIN,FLOAT
€ 2.50
92055
920551070
ref: 92055
ORING,AIR SCREW
€ 3.00
92055A
920551071
ref: 92055A
RING-O,OVERFLOW
€ 4.50
92063
920631108
ref: 92063
JET-MAIN,#94
€ 11.50
92064
920641028
ref: 92064
JET-PILOT,#32
€ 13.00
92066
920661051
ref: 92066
US
PLUG,PILOT AIR SCREW,
€ 3.00
92066A
920661065
ref: 92066A
SCREW,DRAIN
€ 9.50
92081
920811189
ref: 92081
SPRING,THROTTLE ARM
€ 3.50
92081A
920811190
ref: 92081A
SPRING,AIR SCREW
€ 3.50
220
220B0312
ref: 220
SCREW-PAN CROS,3X12
€ 2.00
220A
220B0414
ref: 220A
SCREW-PAN-CROS
€ 2.00
220B
220B0416
ref: 220B
SCREW-PAN-CROS
€ 2.00
312
312B0500
ref: 312
NUT-HEX,5MM
€ 0.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
461A
461F0400
ref: 461A
WASHER-SPRING,4MM
€ 0.50
670
670B1505
ref: 670
O RING,5MM
€ 1.00
