CYLINDER HEAD
KZ550D1 GPZ 1981 USA CANADA

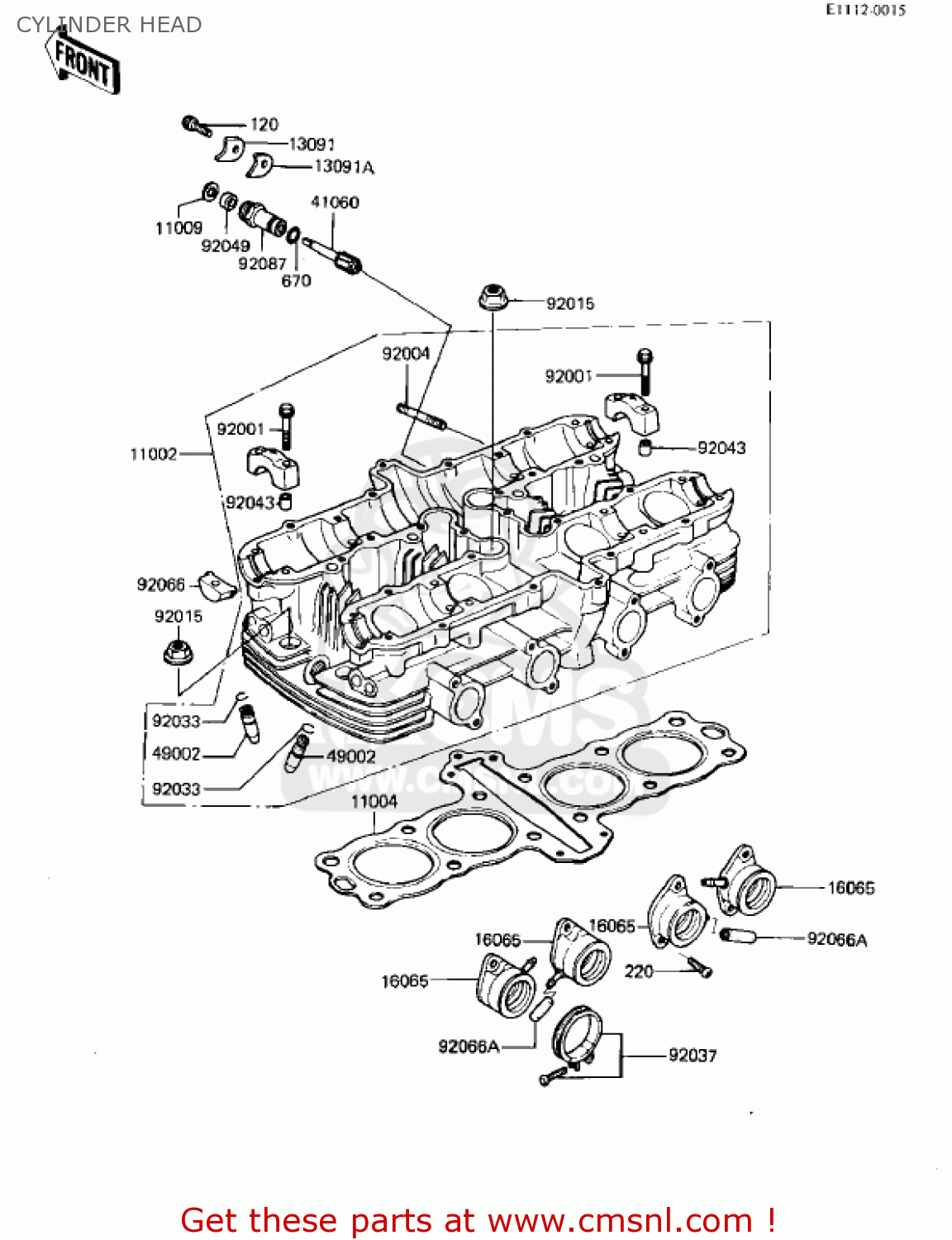

Cylinder head diagram KZ550D1 GPZ 1981 USA CANADA
CYLINDER HEAD KZ550D1 GPZ 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11002
110021062
ref: 11002
HEAD-ASSY-CYL,F.BLACK
€ 1,333.00
11004
110041212
ref: 11004
GASKET-HEAD (NAS)
€ 72.00
11009
92065103
ref: 11009
GASKET,TACHOMETER GER (NAS)
€ 2.50
13091
130911008
ref: 13091
HOLDER, TACHOMETER
€ 2.50
13091A
130911009
ref: 13091A
HOLDER, TACHOMETER
€ 2.50
16065
160651014
ref: 16065
HOLDER-CARBURETOR
€ 41.00
41060
13223011
ref: 41060
GEAR,TACHOMETER, 10T
€ 63.00
49002
490021005
ref: 49002
GUIDE-VALVE
€ 30.00
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92004
92004066
ref: 92004
STUD, 6X27
€ 3.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
€ 0.50
92037
920371242
ref: 92037
CLAMP,CARBURETOR HOLD
€ 6.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92049
92050075
ref: 92049
OIL SEAL,TACHOMETER
€ 7.50
92066
920661111
ref: 92066
PLUG,CAMSHAFT,11.35X1
€ 8.00
92066A
92068006
ref: 92066A
US
RUBBER PLUG
€ 2.50
92066A
92068006
ref: 92066A
CN
RUBBER PLUG
€ 2.50
92087
92087010
ref: 92087
GUIDE,TACHOMETER GEAR
€ 16.50
120
120P0614
ref: 120
BOLT,6X14
€ 3.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
670
670D1510
ref: 670
O RING,10MM
€ 3.00
