FRAME FITTINGS
KZ550D1 GPZ 1981 USA CANADA

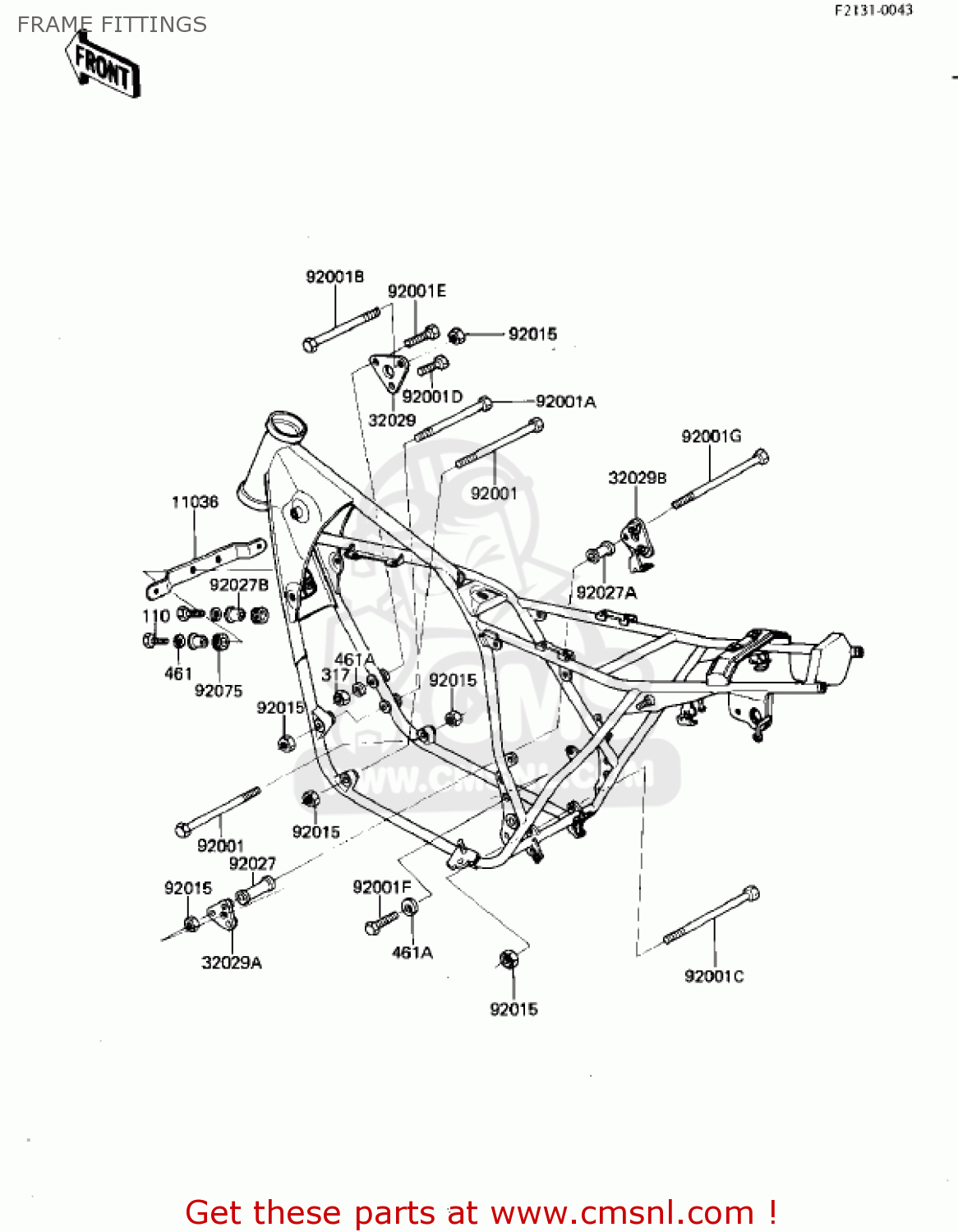

Frame fittings diagram KZ550D1 GPZ 1981 USA CANADA
FRAME FITTINGS KZ550D1 GPZ 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11036
110361168
ref: 11036
BRACKET,OIL COOLER
€ 5.50
32029
320291048
ref: 32029
BRACKET,ENGINE,FR,R.H
€ 6.00
32029A
320291049
ref: 32029A
BRACKET,ENGINE,RR,L.H
€ 8.50
32029B
320291157
ref: 32029B
BRACKET-ENGINE,RR,RH
€ 12.00
92001
920011048
ref: 92001
BOLT, HEX HEAD, 10X84
€ 4.50
92001A
920011049
ref: 92001A
BOLT, HEX HEAD, 10X72
€ 4.00
92001B
920011599
ref: 92001B
BOLT,FLANGED,10X60
€ 4.50
92001C
920011599
ref: 92001C
BOLT,FLANGED,10X60
€ 4.50
92001D
920011581
ref: 92001D
BOLT,FLANGED,8X60
€ 3.50
92001E
920011582
ref: 92001E
BOLT,FLANGED,8X65
€ 3.50
92001F
920011578
ref: 92001F
BOLT,FLANGED,8X40
€ 4.00
92001G
920011609
ref: 92001G
BOLT,FLANGED,10X255
€ 14.00
92015
92019021
ref: 92015
NUT,LOCK,10M/M
€ 2.00
92027
920271109
ref: 92027
COLLAR,L=57.5M/M
€ 13.00
92027A
920271110
ref: 92027A
COLLAR,L=37
€ 9.00
92027B
92027194
ref: 92027B
COLLAR
€ 3.50
92075
92075277
ref: 92075
DAMPER
€ 1.00
110
112G0625
ref: 110
BOLT-UPSET,6X25
€ 4.00
317
317B0800
ref: 317
NUT,8M/M
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
