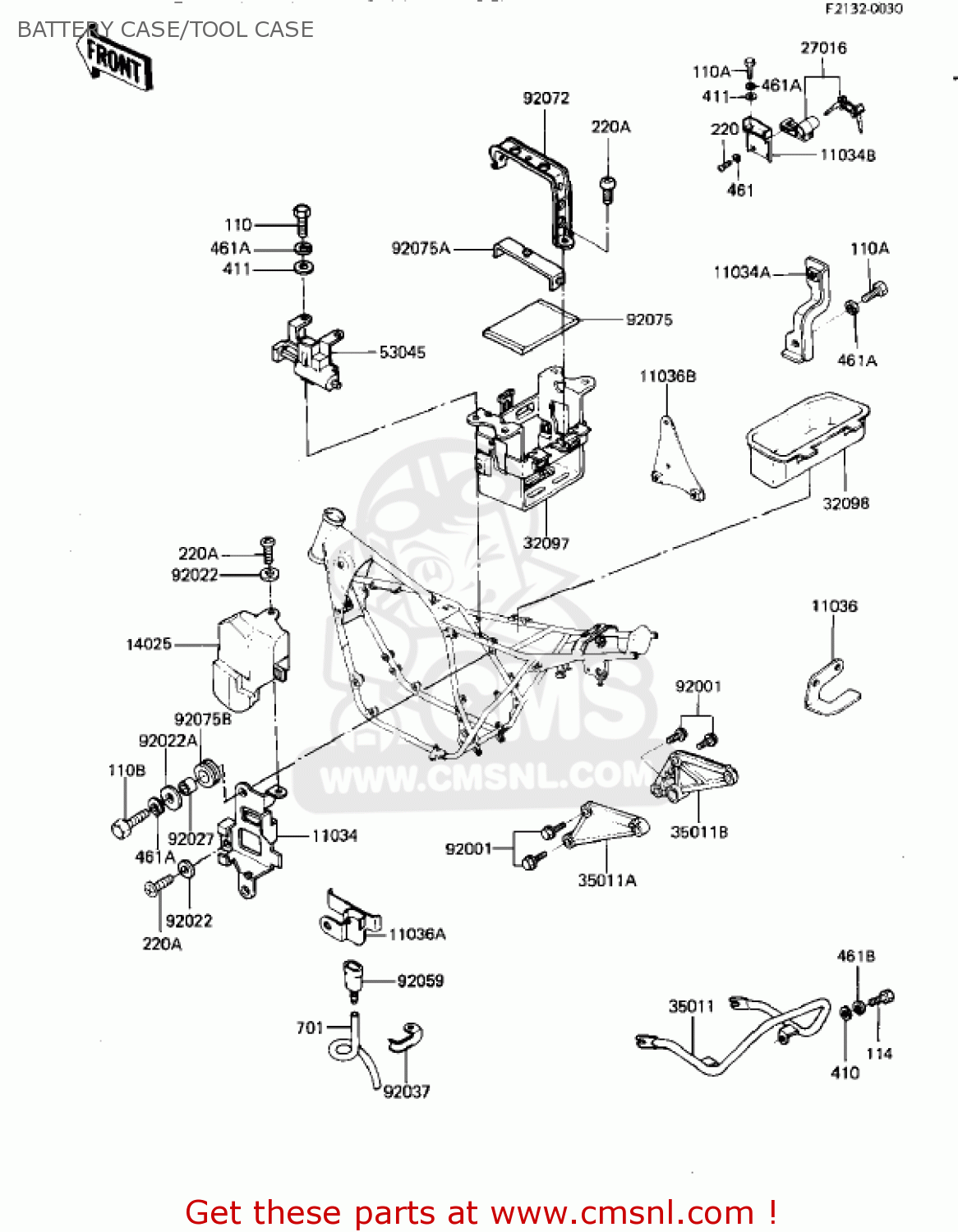

BATTERY CASE/TOOL CASE

ref

part #

description

quantity

11034

110341239
ref: 11034

BRACKET,ELECTRO BASE

€ 16.00

11034A

110341872
ref: 11034A

BRACKET,RESERVIR TANK

€ 2.00

11034B

110341926
ref: 11034B

BRACKET,HELMET LOCK

€ 14.00

11036

110361026
ref: 11036

FUSE BRACKET

€ 3.00

11036A

110361470
ref: 11036A

BRACKET,BATTERY

€ 7.00

11036B

110361137
ref: 11036B

RESERVOIR LIGHT BRACKET

€ 8.00

14025

140251049
ref: 14025

COVER,ELECTRO

€ 15.50

27016

270165038
ref: 27016

LOCK-ASSY,HELMET

€ 67.50

32097

320971029
ref: 32097

CASE-BATTERY

€ 70.50

32098

320981005
ref: 32098

CASE-TOOL

€ 20.50

35011

350111083
ref: 35011

STAY,RR

€ 120.50

35011A

350111084
ref: 35011A

STAY,MUFFLER,LH

€ 69.00

35011B

350111085
ref: 35011B

STAY,MUFFLER,RH

€ 70.00

53045

530451001
ref: 53045

HOOK ASSY,HELMET

€ 31.00

92001

920011095
ref: 92001

BOLT,8X28

€ 4.50

92022

92022024
ref: 92022

WASHER,7X16X1.2

€ 2.50

92022A

92022125
ref: 92022A

WASHER,6.5X20X1.6

€ 1.00

92027

92027165
ref: 92027

COLLAR,6.5X8.5X7.5

€ 3.00

92037

920371246
ref: 92037

CLAMP

€ 4.00

92059

92059101
ref: 92059

TUBE,CONNECTOR

€ 6.00

92072

920721019
ref: 92072

BAND,BATTERY

€ 6.50

92075

920751076
ref: 92075

DAMPER,BATTERY BASE

€ 6.00

92075A

920751113
ref: 92075A

DAMPER,BATTERY BAND

€ 4.50

92075B

92075149
ref: 92075B

DAMPER

€ 6.00

110

112G0612
ref: 110

BOLT-UPSET

€ 2.50

110A

112B0614
ref: 110A

BOLT-UPSET 6X14

€ 2.50

110B

112G0620
ref: 110B

BOLT 6X20

€ 1.00

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

220A

220B0612
ref: 220A

SCREW-PAN HEAD,6X12

€ 1.00

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50

461B

461F0800
ref: 461B

WASHER-SPRING,8MM

€ 0.50

701

701Q06530
ref: 701

TUBE-PVC,6X530

€ 4.00

all assemblies
