METERS ('80 D1)

KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

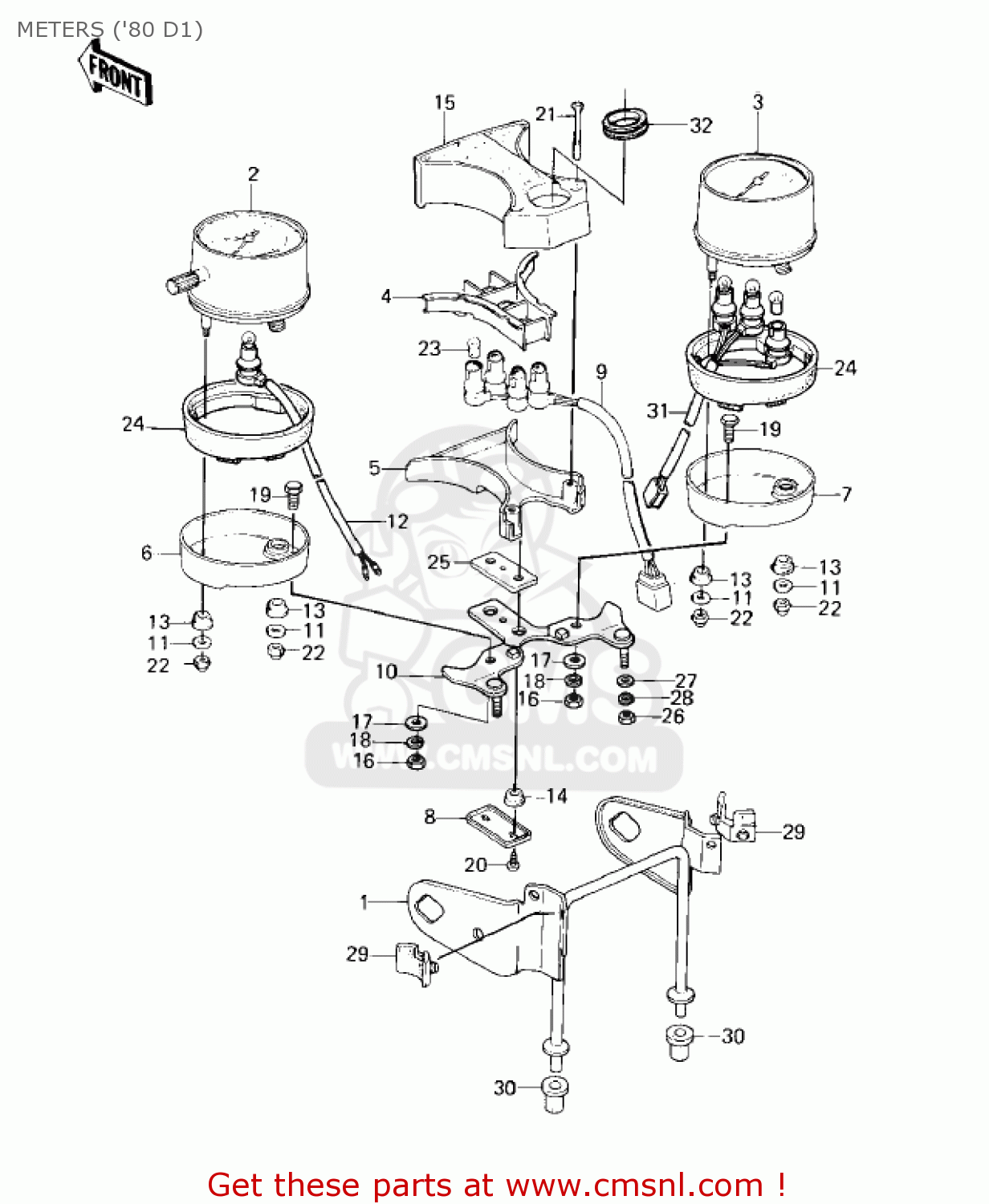

Meters ('80 d1) diagram KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

METERS ('80 D1) KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

METERS ('80 D1) KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

110341535
ref: 1

BRACKET,HEAD LAMP

€ 58.50

2

250051064
ref: 2

SPEEDOMETER,MPH

€ 346.50

2

250051053
ref: 2

SPEEDOMETER,KPH

€ 258.00

3

250151068
ref: 3

TACHOMETER,X1000R/MIN

€ 272.00

4

131691133
ref: 4

PLATE,SOCKET

€ 3.50

5

140251093
ref: 5

COVER,PILOT BOX,LWR

€ 15.00

6

140251094
ref: 6

COVER,SPEEDOMETER

€ 22.00

7

140251095
ref: 7

COVER,TACHOMETER

€ 20.00

8

140251096
ref: 8

COVER,PILOT BOX,DAMPE

€ 3.50

9

230081031
ref: 9

SOCKET ASSY,PILOT BOX

€ 33.00

10

250081021
ref: 10

BRACKET-METER

€ 38.50

11

25009004
ref: 11

WASHER,5.2X16X1.2T

€ 2.50

12

25010022
ref: 12

SOCKET-ASSY,METER

€ 16.50

13

25019013
ref: 13

DAMPER,METER

€ 3.50

14

25019023
ref: 14

DAMPER RUBBER,METER

€ 2.50

15

250231008
ref: 15

COVER,PILOT BOX,UPP

€ 26.50

16

311B0800
ref: 16

NUT,8MM

€ 0.50

17

411B0800
ref: 17

WASHER-PLAIN,8MM

€ 0.50

18

461F0800
ref: 18

WASHER-SPRING,8MM

€ 0.50

19

920011154
ref: 19

BOLT,METER

€ 2.00

20

920091040
ref: 20

SCREW,TAPPING,4X10

€ 2.50

21

222C0445
ref: 21

SCREW-CSK-RD-CROS,4X4

€ 2.00

22

322N0500
ref: 22

NUT-CAP,5MM

€ 2.00

23

92069018
ref: 23

BULB 12V 3W

€ 4.00

24

920751498
ref: 24

DAMPER,METER

€ 13.00

25

920751136
ref: 25

DAMPER,PILOT BOX

€ 3.00

26

311B0600
ref: 26

NUT,6MM

€ 0.50

27

411B0600
ref: 27

WASHER-PLAIN,6MM

€ 0.50

28

461F0600
ref: 28

WASHER-SPRING,6MM

€ 0.50

29

920751106
ref: 29

DAMPER,BRACKET

€ 3.00

30

920751107
ref: 30

DAMPER,BRACKET

€ 3.50

31

230081049
ref: 31

SOCKET ASSY,TACHOMETR

€ 23.50

32

920751204
ref: 32

DAMPER,PILOT BOX

€ 3.00
