FRONT BRAKE ('80 D1)

KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

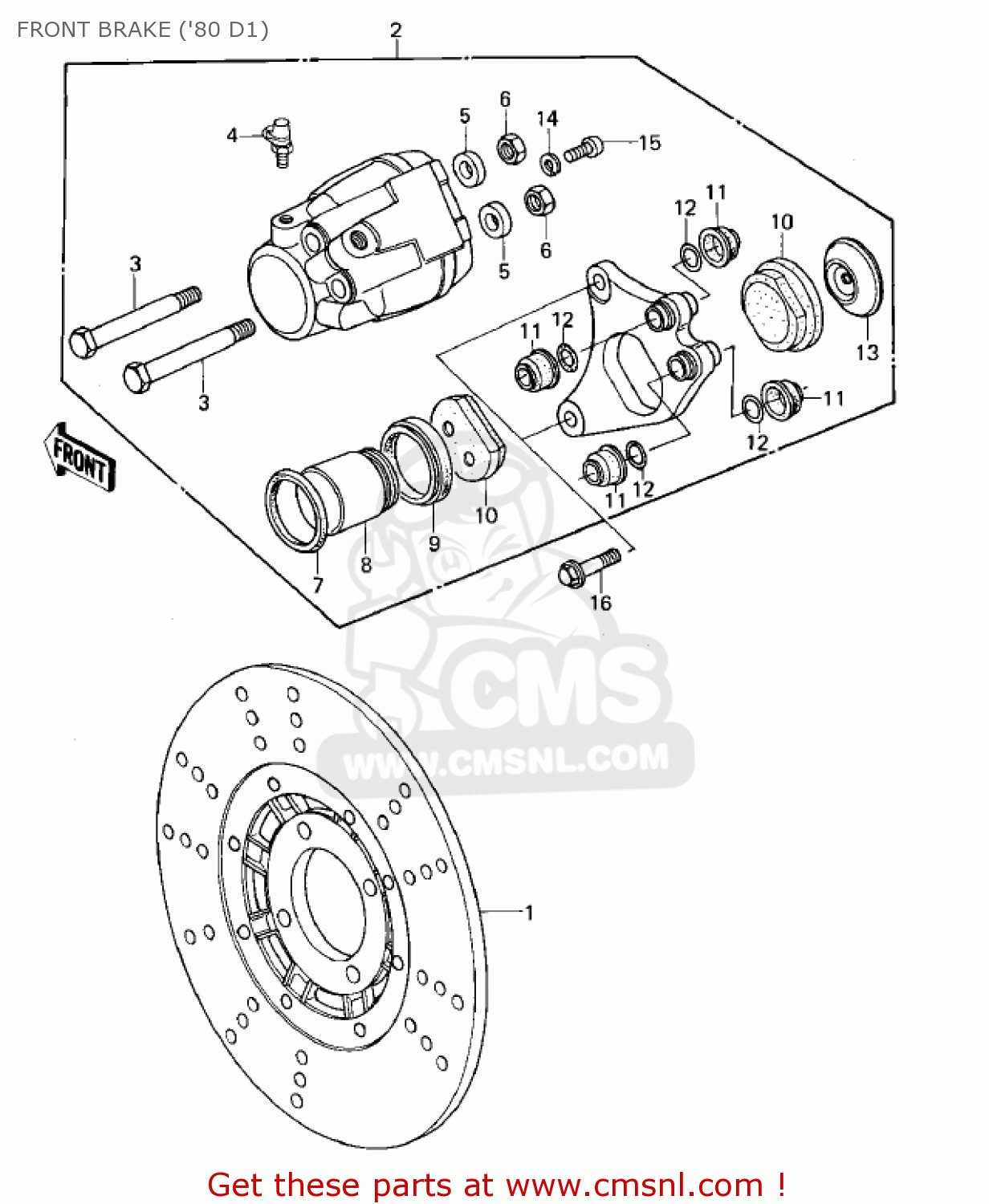

Front brake ('80 d1) diagram KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

410801027
ref: 1

DISK PLATE,FRONT

€ 415.50

430411024
ref: 2

CALIPER ASSY,L.H.

€ 429.50

43045006
ref: 3

BOLT

€ 18.00

43085001
ref: 4

BREEDER SET

€ 16.50

43088002
ref: 5

PLUG

€ 6.50

315B1000
ref: 6

NUT,10MM

€ 0.50

43049002A
ref: 7

PISTON SEAL RING

€ 9.00

430201012
ref: 8

PISTON-COMP-BRAKE

€ 65.50

43054003
ref: 9

BOOT,PISTON

€ 10.00

430821001
ref: 10

PAD SET (MCA)

€ 34.00

43052005
ref: 11

BOOT,SHAFT

€ 7.50

43053006
ref: 12

RING-O

€ 7.00

43040004
ref: 13

SPACER

€ 8.00

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

220B0612
ref: 15

SCREW-PAN HEAD,6X12

€ 1.00

920011299
ref: 16

BOLT,HEX HEAD,10X44

€ 3.50
