CLUTCH (KZ440-D2)

KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

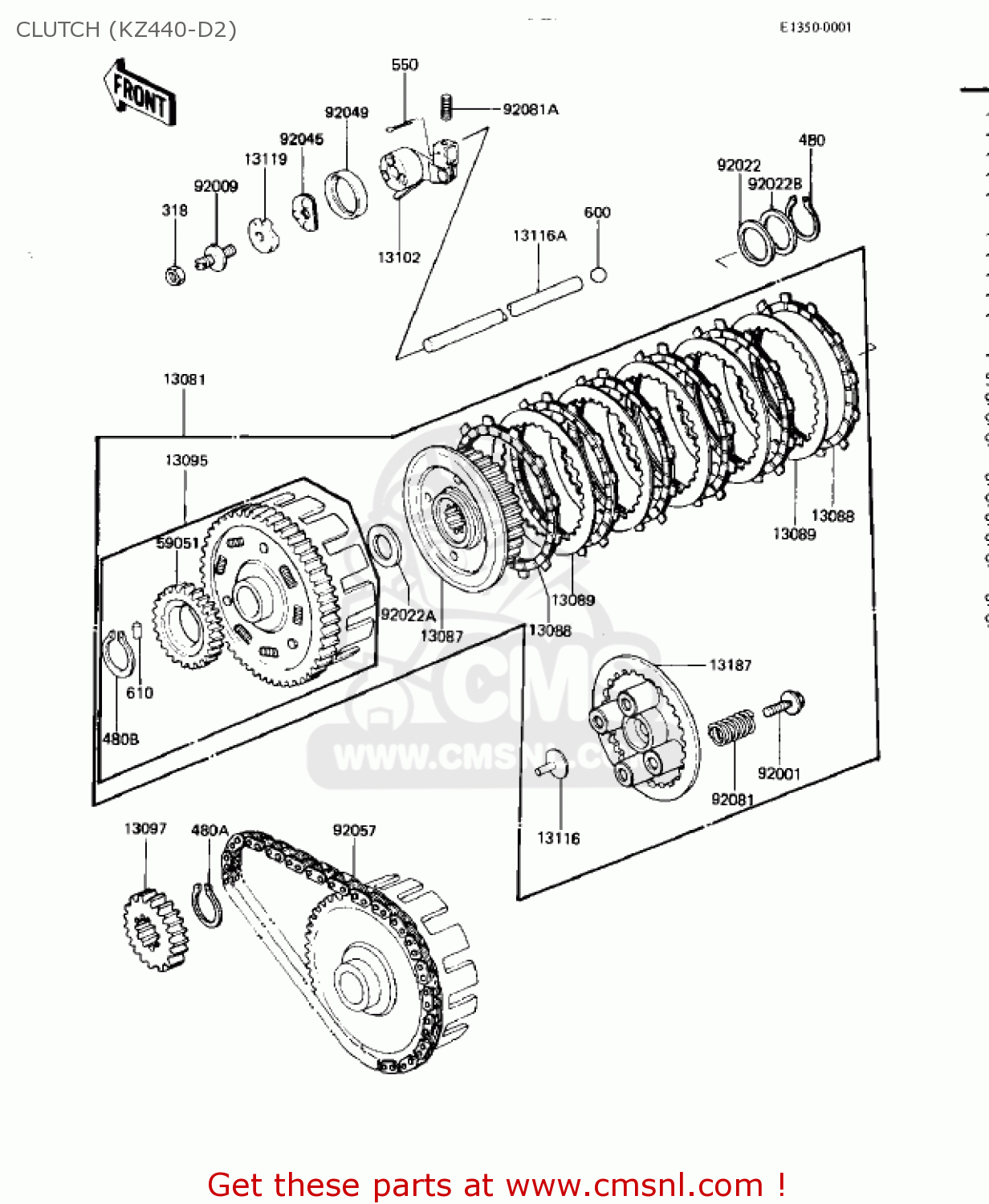

Clutch (kz440-d2) diagram KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

CLUTCH (KZ440-D2) KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

CLUTCH (KZ440-D2) KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

13081

130811019
ref: 13081

CLUTCH ASSY

€ 364.50

13087

13087040
ref: 13087

HUB,CLUTCH

€ 56.00

13088

130881001
ref: 13088

PLATE-FRICTION (NAS)

€ 11.50

13089

13089026
ref: 13089

PLATE,CLUTCH STEEL (NAS)

€ 6.50

13095

130951008
ref: 13095

HOUSING-COMP-CLUTCH

€ 237.50

13097

13121030
ref: 13097

SPROCKET,PRIMARY

€ 38.50

13102

131021004
ref: 13102

RELEASE-COMP-CLUTCH

€ 46.00

13116

13116029
ref: 13116

ROD-PUSH,CLUTCH SPRIN

€ 18.00

13116A

131161017
ref: 13116A

ROD-PUSH,CLUTCH,7X250

€ 26.00

13119

131191003
ref: 13119

CAM-RELEASE,CLUTCH

€ 11.50

13187

131871003
ref: 13187

PLATE,CLUTCH OPERATNG

€ 35.50

59051

590511001
ref: 59051

GEAR OIL PUMP,34T

€ 32.00

92001

920011066
ref: 92001

BOLT, CLUTCH SPR FITT

€ 4.00

92009

920091009
ref: 92009

SCREW,SLOTTED,8M/M

€ 2.50

92022

92022225
ref: 92022

WASHER-THRUST

€ 3.50

92022A

92022288
ref: 92022A

WASHER,CLUTCH THRUST

€ 9.00

92022B

92022302
ref: 92022B

WASHER,CLUTCH THRUST

€ 3.50

92045

920451001
ref: 92045

BEARING,B.CLUTCH

€ 8.00

92049

920491003
ref: 92049

OIL SEAL,CLUTCH

€ 8.00

92057

13122005A
ref: 92057

CHAIN,63-139X74L(TUBA

€ 208.00

92081

920811033
ref: 92081

SPRING,CLUTCH

€ 6.50

92081A

920811058
ref: 92081A

SPRING,CLUTCH RETURN

€ 4.50

318

318B0800
ref: 318

NUT,8MM

€ 0.50

480

480J2400
ref: 480

CIRCLIP-TYPE-C,24MM

€ 3.50

480A

480J3000
ref: 480A

CIRCLIP-TYPE-C,30MM

€ 3.50

480B

480J3800
ref: 480B

CIRCLIP-TYPE-C,38MM

€ 3.50

550

550D1615
ref: 550

PIN-COTTER,1.6X15

€ 1.50

600

600A1200
ref: 600

BALL-STEEL,3/8

€ 0.50

610

610A0606
ref: 610

PIN,DOWEL,6X6

€ 1.50
