BRAKE PEDAL/TORQUE LINK ('80 D1)

KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

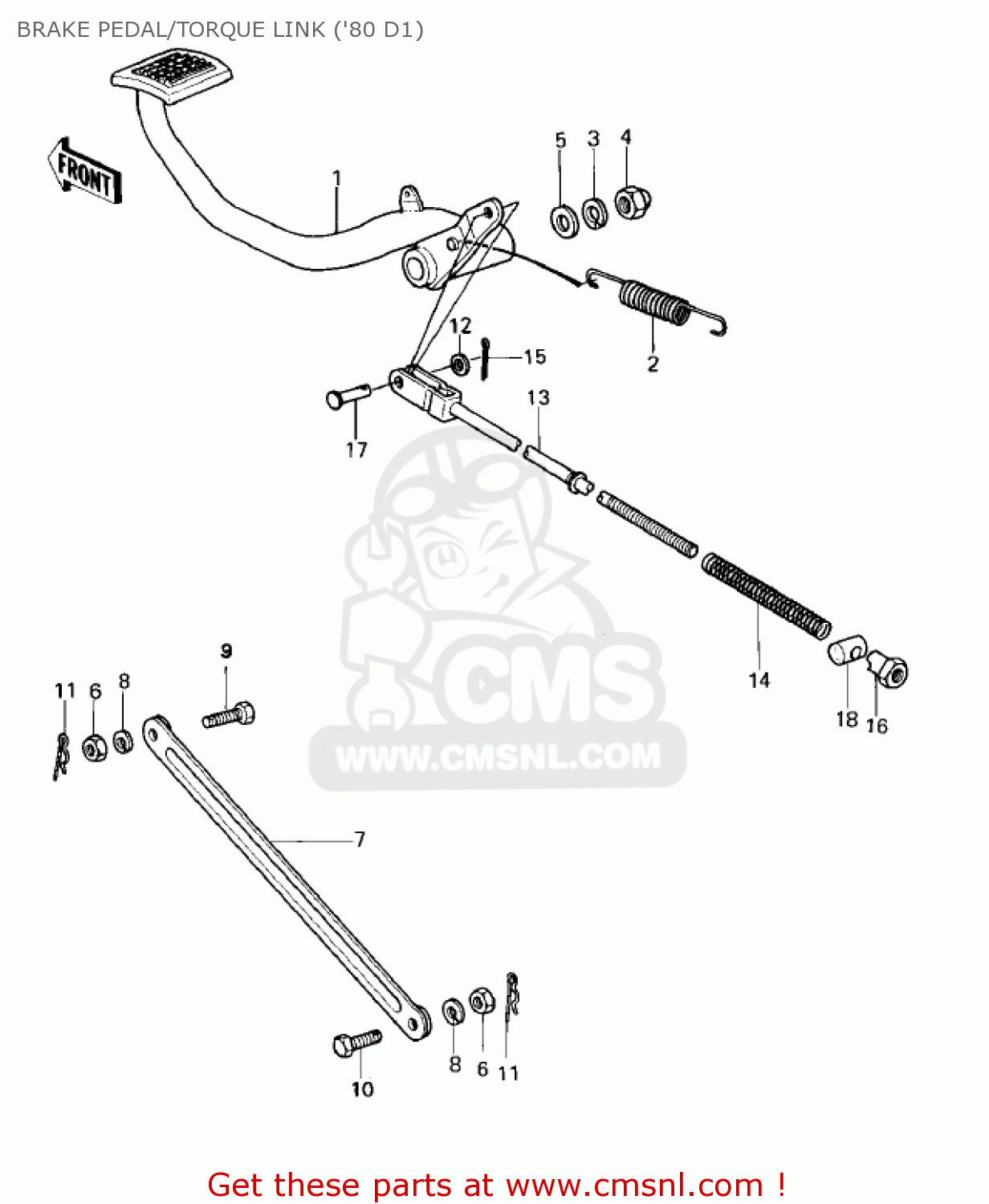

Brake pedal/torque link ('80 d1) diagram KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

BRAKE PEDAL/TORQUE LINK ('80 D1) KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

BRAKE PEDAL/TORQUE LINK ('80 D1) KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

430011035
ref: 1

LEVER-BRAKE,PEDAL

€ 94.50

2

43005029
ref: 2

SPRING,BRAKE PEDAL

€ 6.00

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

92019013
ref: 4

NUT,CAP,LOCK,8MM

€ 5.50

5

920221561
ref: 5

WASHER,8.5X20X1.6

€ 2.50

6

315B1000
ref: 6

NUT,10MM

€ 0.50

7

43007016
ref: 7

ROD-TORQUE,RR

€ 14.00

8

461F1000
ref: 8

WASHER-SPRING,10MM

€ 0.50

9

92003017
ref: 9

BOLT-TRQ LINK 10X25

€ 3.50

10

92003034
ref: 10

BOLT-HEX HEAD,10MM

€ 9.00

11

554A0800
ref: 11

PIN-SNAP,8MM

€ 1.00

12

410B0600
ref: 12

WASHER-PLAIN-SMALL,6M

€ 0.50

13

43011009
ref: 13

ROD-BRAKE

€ 12.50

14

43012001
ref: 14

SPRING,BRAKE ROD

€ 3.00

15

550D2015
ref: 15

PIN-COTTER,2.0X15

€ 1.00

16

92015042
ref: 16

NUT-BRAKE ROD ADJUST

€ 4.00

17

92043064
ref: 17

PIN-BRAKE ROD FITTING

€ 4.50

18

92043065
ref: 18

PIN-BRAKE ROD

€ 3.50
