FRONT FORK ('80 D1)

KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

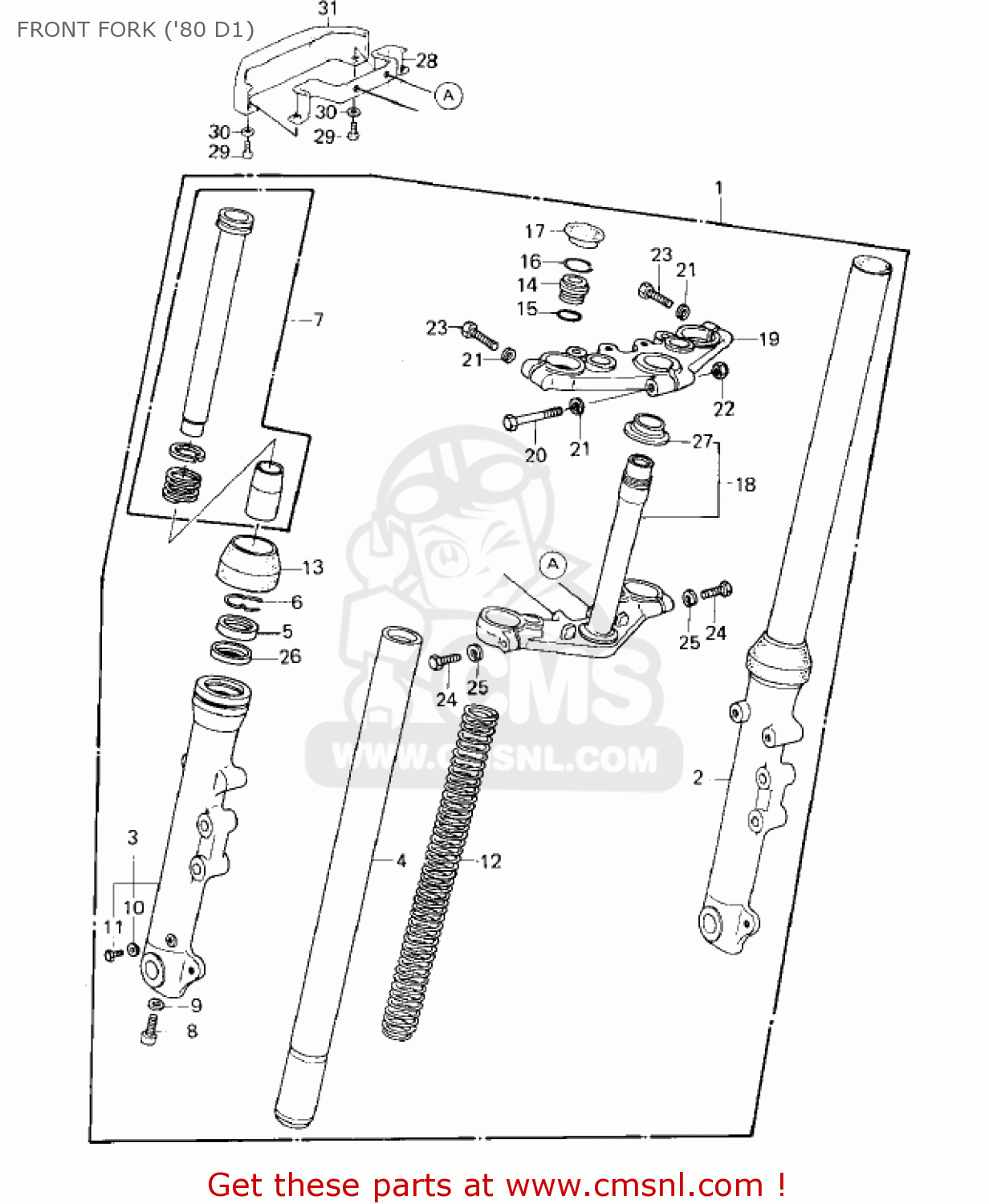

Front fork ('80 d1) diagram KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

FRONT FORK ('80 D1) KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

FRONT FORK ('80 D1) KZ440D4 LTD 1982 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

440011214
ref: 1

FRONT FORK ASSY

€ 990.00

2

440061029
ref: 2

TUBE,R.H,FORK OUTER

€ 96.50

3

440051029
ref: 3

TUBE,L.H,FORK COVER

€ 193.50

4

440131025
ref: 4

PIPE-FORK INNER

€ 124.00

5

920491077
ref: 5

OIL SEAL,FORK

€ 13.50

6

44043057
ref: 6

RING,OIL SEAL STOPER

€ 4.00

7

440221028
ref: 7

CYLINDER,FORK

€ 71.50

8

44041078
ref: 8

BOLT, FORK CYLINDER

€ 6.50

9

44045051
ref: 9

GASKET,FORK CYLINDER (NAS)

€ 4.00

10

44045047
ref: 10

GASKET,DRAIN PLUG (NAS)

€ 6.00

11

110B0608
ref: 11

BOLT-HEX HEAD,6X8

€ 0.50

12

440261037
ref: 12

SPRING,FORK INNER

€ 41.00

13

920931063
ref: 13

SEAL,FORK

€ 19.50

14

44029022
ref: 14

GUIDE, FORK SPRING

€ 8.00

15

44046025
ref: 15

'O' RING, FORK

€ 4.00

16

44044023
ref: 16

CIRCLIP

€ 3.50

17

110121021
ref: 17

CAP,RUBBER,FORK TOP

€ 6.00

18

440371014
ref: 18

STEM,STEERING

€ 267.00

19

440391023
ref: 19

HEAD,STEERING STEM

€ 99.00

20

920011064
ref: 20

BOLT,HEX HEAD,8X55

€ 6.00

21

461F0800
ref: 21

WASHER-SPRING,8MM

€ 0.50

22

920151124
ref: 22

NUT,LOCK,8MM

€ 3.50

23

920011063
ref: 23

BOLT,HEX HEAD,8X40

€ 6.50

24

920011252
ref: 24

BOLT,HEX HEAD,10X35

€ 3.50

25

461F1000
ref: 25

WASHER-SPRING,10MM

€ 0.50

26

920261005
ref: 26

SPACER,FORK

€ 8.50

27

92047006
ref: 27

CONE-STRNG STEM

€ 11.00

28

110341698
ref: 28

BRACKET,FORK COVER

€ 8.00

29

220B0410
ref: 29

SCREW-PAN-CROS

€ 2.00

30

410B0400
ref: 30

WASHER-PLAIN-SMALL,4M

€ 0.50

31

440331042
ref: 31

COVER-FORK

€ 19.50
