OIL PUMP/OIL FILTER ('80 D1)

KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

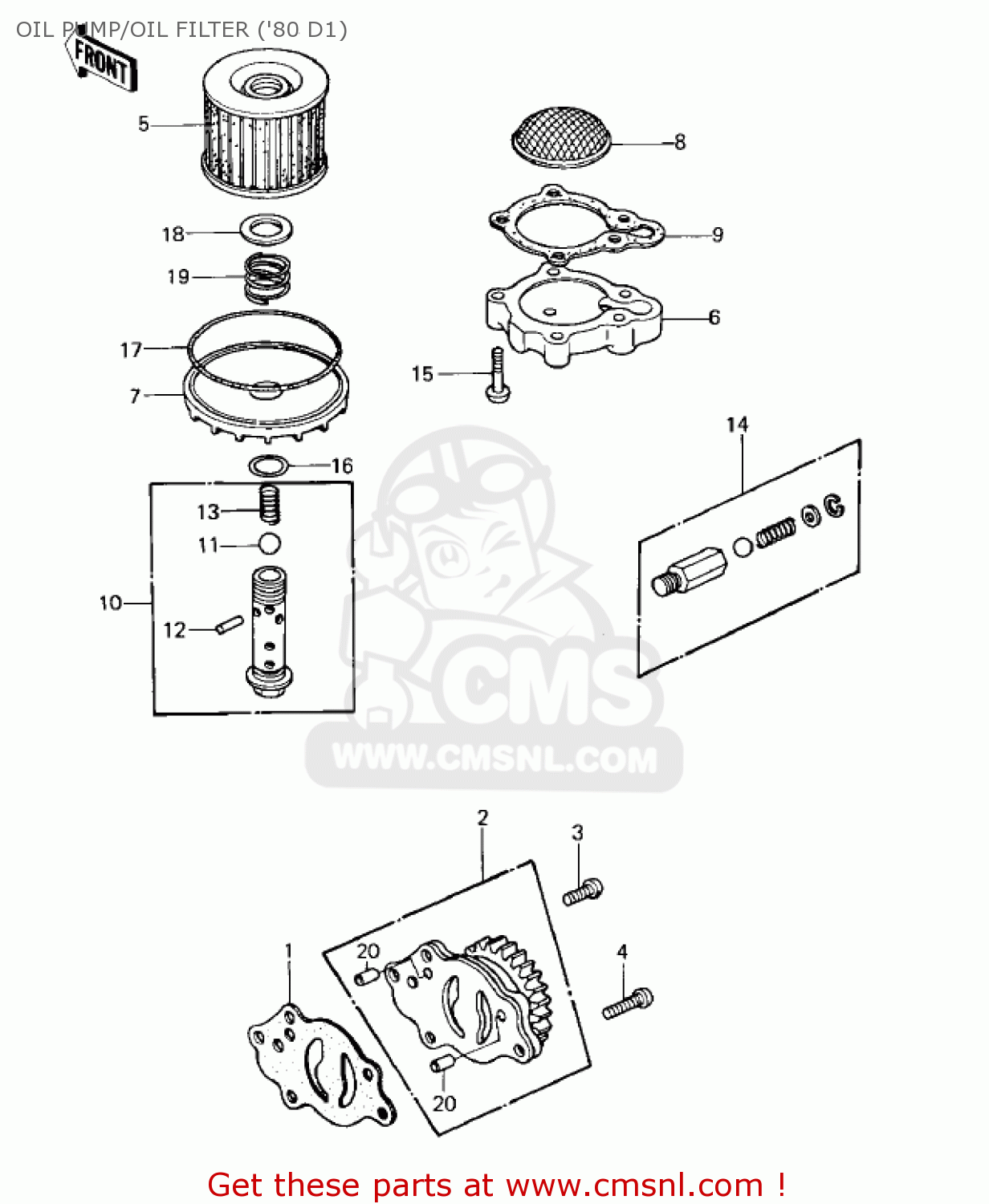

Oil pump/oil filter ('80 d1) diagram KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

OIL PUMP/OIL FILTER ('80 D1) KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

OIL PUMP/OIL FILTER ('80 D1) KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

110091014
ref: 1

GASKET,OIL PUMP (MCA)

€ 2.50

2

160821001
ref: 2

OIL PUMP ASSY

€ 87.50

3

220B0610
ref: 3

SCREW-PAN HEAD,6X10

€ 2.00

4

220B0625
ref: 4

SCREW-PAN HEAD,6X25

€ 1.50

5

16099003
ref: 5

FILTER,OIL

€ 6.50

6

16101003
ref: 6

COVER,OIL STRAINER

€ 12.50

7

16101004
ref: 7

COVER,OIL FILTER

€ 31.00

8

16111003
ref: 8

STRAINER,OIL

€ 10.00

9

110091874
ref: 9

GASKET,OIL FILTER COV (NAS)

€ 4.50

10

161261108
ref: 10

VALVE,OIL FILTER

€ 29.00

11

600A1200
ref: 11

BALL-STEEL,3/8

€ 0.50

12

92043111
ref: 12

SPRING PIN

€ 4.00

13

92081109
ref: 13

SPRING

€ 7.50

14

161301001
ref: 14

VALVE-ASSY-RELIEF

€ 28.50

15

220B0630
ref: 15

SCREW-PAN HEAD,6X30

€ 2.50

16

670B2016
ref: 16

O RING,16MM

€ 1.00

17

671B2590
ref: 17

O RING,90MM

€ 6.50

18

920221012
ref: 18

WASHER,20.5X30X1

€ 3.00

19

920811018
ref: 19

SPRING,OIL FILTER

€ 3.00

20

551A0612
ref: 20

PIN-DOWEL,6X12

€ 0.50
