CYLINDER HEAD ('80 D1)

KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

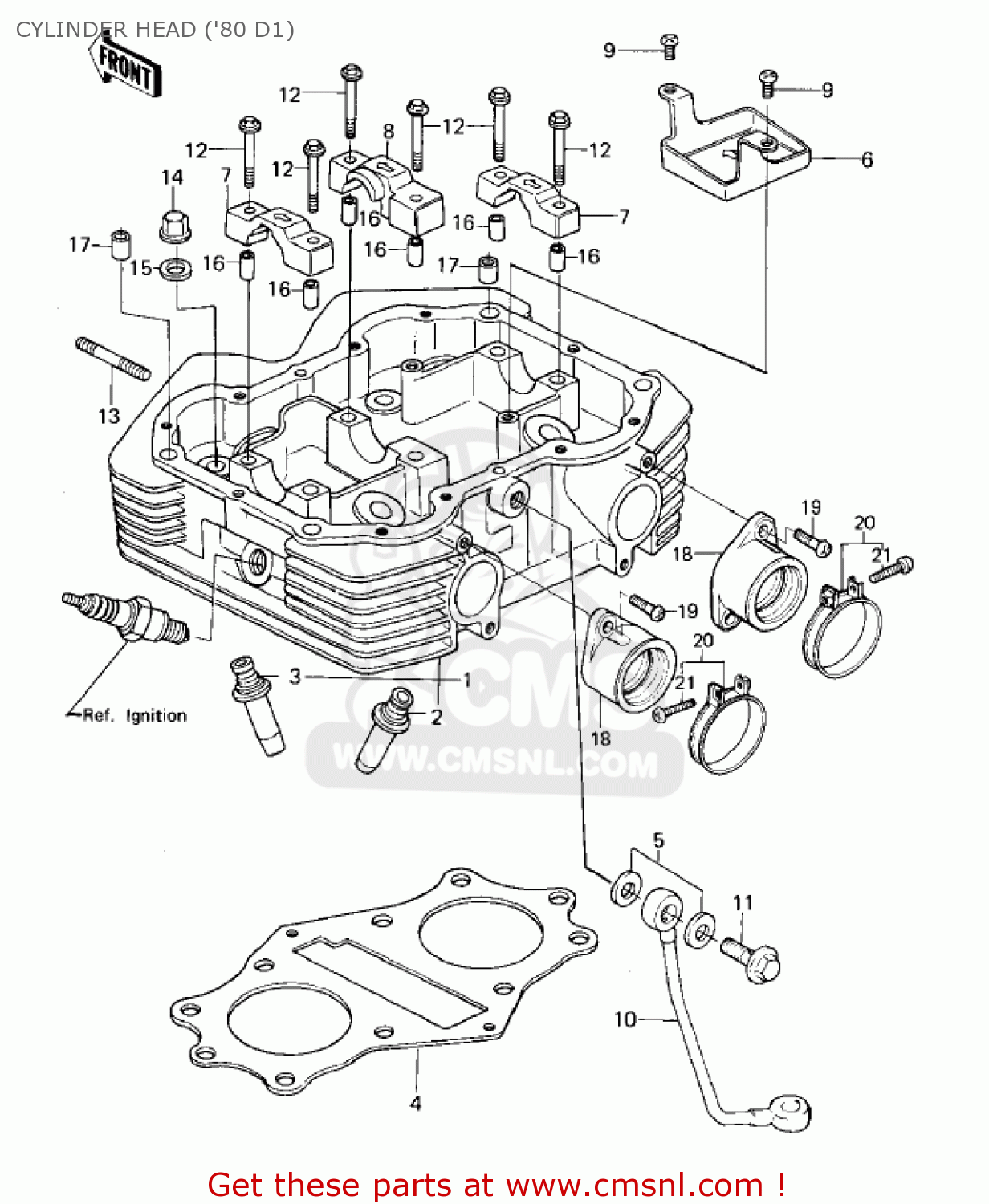

Cylinder head ('80 d1) diagram KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

CYLINDER HEAD ('80 D1) KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

CYLINDER HEAD ('80 D1) KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

110081034
ref: 1

HEAD-COMP-CYLINDER,SI

€ 677.50

2

12013003
ref: 2

GUIDE-VALVE,INTAKE

€ 24.00

3

490021010
ref: 3

GUIDE-VALVE,EXHAUST

€ 20.50

4

110041020
ref: 4

GASKET,CYLINDER HEAD (MCA)

€ 41.50

5

110091105
ref: 5

GASKET,10X14.5X1.5 (NAS)

€ 4.00

6

110121027
ref: 6

CAP,CYLINDER HEAD OIL

€ 2.50

7

140221002
ref: 7

CAP,BEARING,HEAD,L&R

€ 44.00

8

140221003
ref: 8

CAP-BEARING,HEAD,CNT

€ 27.00

9

220B0610
ref: 9

SCREW-PAN HEAD,6X10

€ 2.00

10

320321084
ref: 10

PIPE,OIL

€ 26.50

11

920011017
ref: 11

BOLT,OIL PIPE

€ 12.50

12

920011105
ref: 12

BOLT,HEX HEAD,6X38

€ 3.00

13

92004049
ref: 13

STUD,6X46

€ 5.50

14

92015076
ref: 14

NUT,FLANGED CAP,10MM

€ 9.00

15

920221005
ref: 15

WASHER,10.5X22X1.6

€ 3.00

16

92042007
ref: 16

PIN-DOWEL

€ 4.00

17

920431037
ref: 17

PIN,DOWEL,10X8.2X14

€ 0.50

18

160651027
ref: 18

HOLDER-CARBURETOR

€ 37.50

19

220B0618
ref: 19

SCREW-PAN HEAD,6X18

€ 2.50

20

92037201
ref: 20

CLAMP,53MM

€ 5.50

21

220B0525
ref: 21

SCREW-PAN-CROS,5X25

€ 2.50
