CHASSIS ELECTRICAL EQUIPMENT ('8

KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

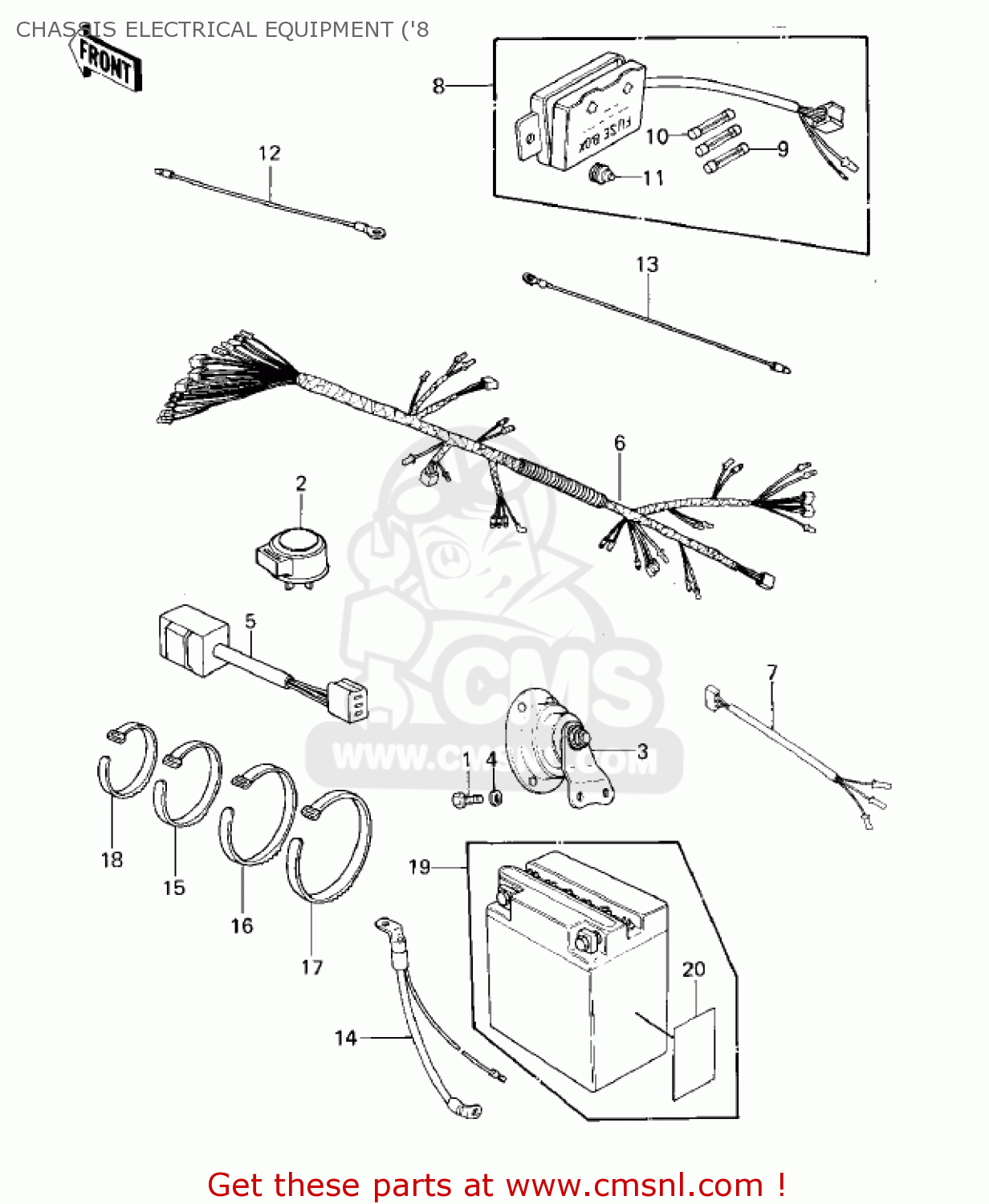

Chassis electrical equipment ('8 diagram KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

CHASSIS ELECTRICAL EQUIPMENT ('8 KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

CHASSIS ELECTRICAL EQUIPMENT ('8 KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

115G0816
ref: 1

BOLT-HEX,HEAD 8X16

€ 0.50

2

27002011
ref: 2

RELAY-ASSY,TURN SIGNA

€ 69.50

3

270031019
ref: 3

HORN

€ 80.00

4

461F0800
ref: 4

WASHER-SPRING,8MM

€ 0.50

5

28019002
ref: 5

SWITCH,BK LIGHT IND

€ 49.50

6

260011127
ref: 6

HARNESS,MAIN

€ 151.50

7

26002046
ref: 7

HARNESS,TAIL LAMP

€ 12.50

8

26004035
ref: 8

FUSE-ASSY

€ 53.50

9

26006003
ref: 9

FUSE 10A

€ 3.00

10

26006005
ref: 10

FUSE 20A

€ 3.50

11

92075279
ref: 11

DAMPER,FUSE

€ 3.50

12

26011063
ref: 12

WIRE-LEAD,L=185

€ 5.00

13

26011095
ref: 13

WIRE-LEAD,L=285

€ 8.00

14

260111022
ref: 14

WIRE-LEAD,BATTERY GRO

€ 16.00

15

92072030
ref: 15

BAND,SHORT

€ 3.00

16

92072031
ref: 16

BAND,MIDDLE

€ 3.00

17

92072032
ref: 17

BAND,LONG

€ 3.00

18

92072067
ref: 18

BAND,L=95

€ 2.50

19

260121004
ref: 19

BATTERY 12V 12AH

€ 97.00

20

560401036
ref: 20

WARNING, BATTERY

€ 2.00
