CYLINDER/PISTONS ('80 D1)

KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

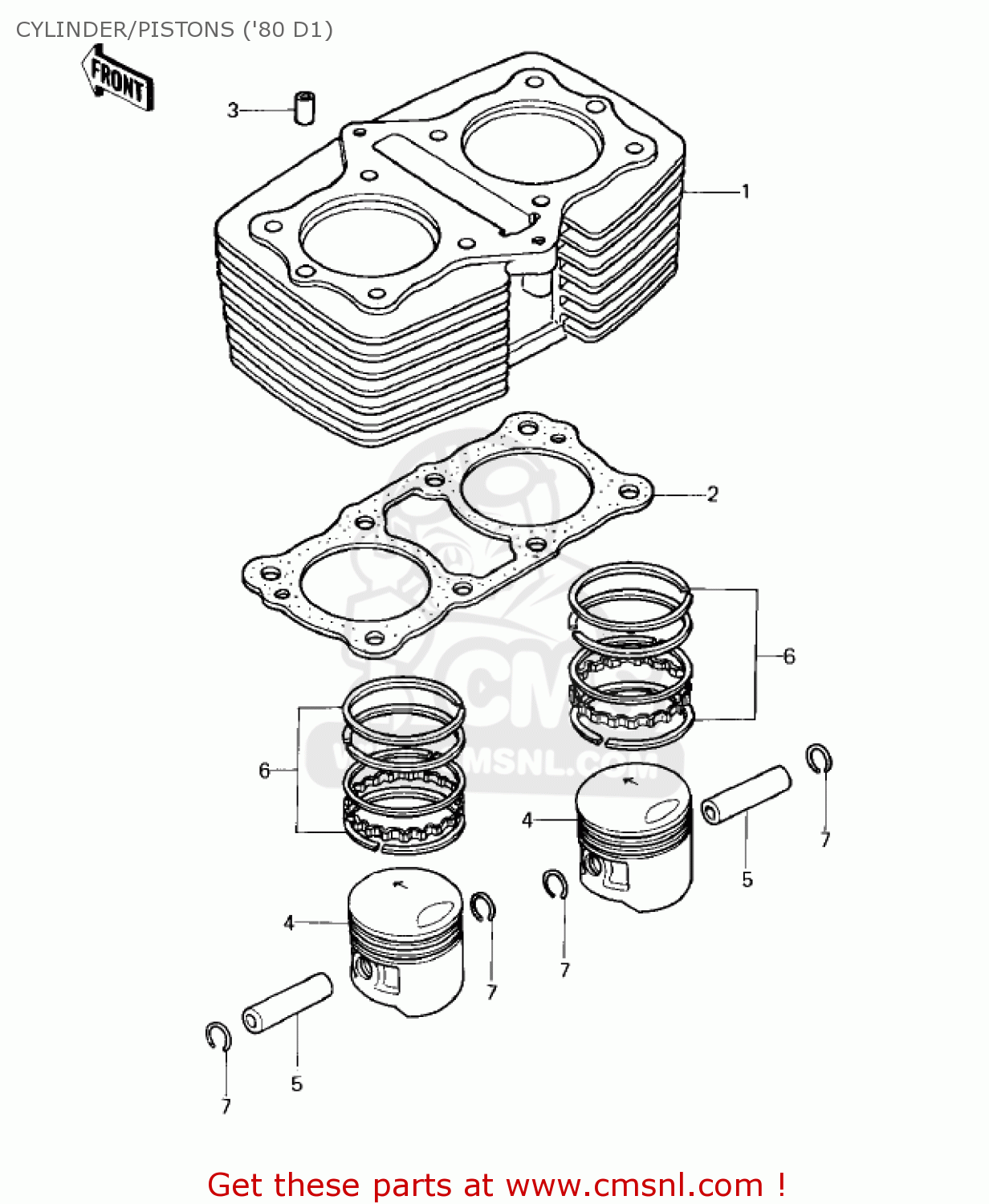

Cylinder/pistons ('80 d1) diagram KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

110061004
ref: 1

CYLINDER,ASSY

€ 381.50

110091176
ref: 2

GASKET,CYLINDER BASE (MCA)

€ 14.00

920431037
ref: 3

PIN,DOWEL,10X8.2X14

€ 0.50

130011032
ref: 4

PISTON-ENGINE,STD

€ 61.00

130291014
ref: 4

PISTON-ENGINE-L,O/S 0

€ 50.50

130271015
ref: 4

PISTON-ENGINE-LL,O/S

€ 70.50

130021011
ref: 5

PIN-PISTON

€ 17.50

130085029
ref: 6

RING-SET-PISTON,STD

€ 70.50

130255015
ref: 6

RING-SET-PISTON L,O/S

€ 66.00

130245015
ref: 6

RING-SET-PISTON LL,O/

€ 66.00

92036005
ref: 7

CIRCLIP-PISTON PIN

€ 2.50
