FUEL TANK ('80 D1)

KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

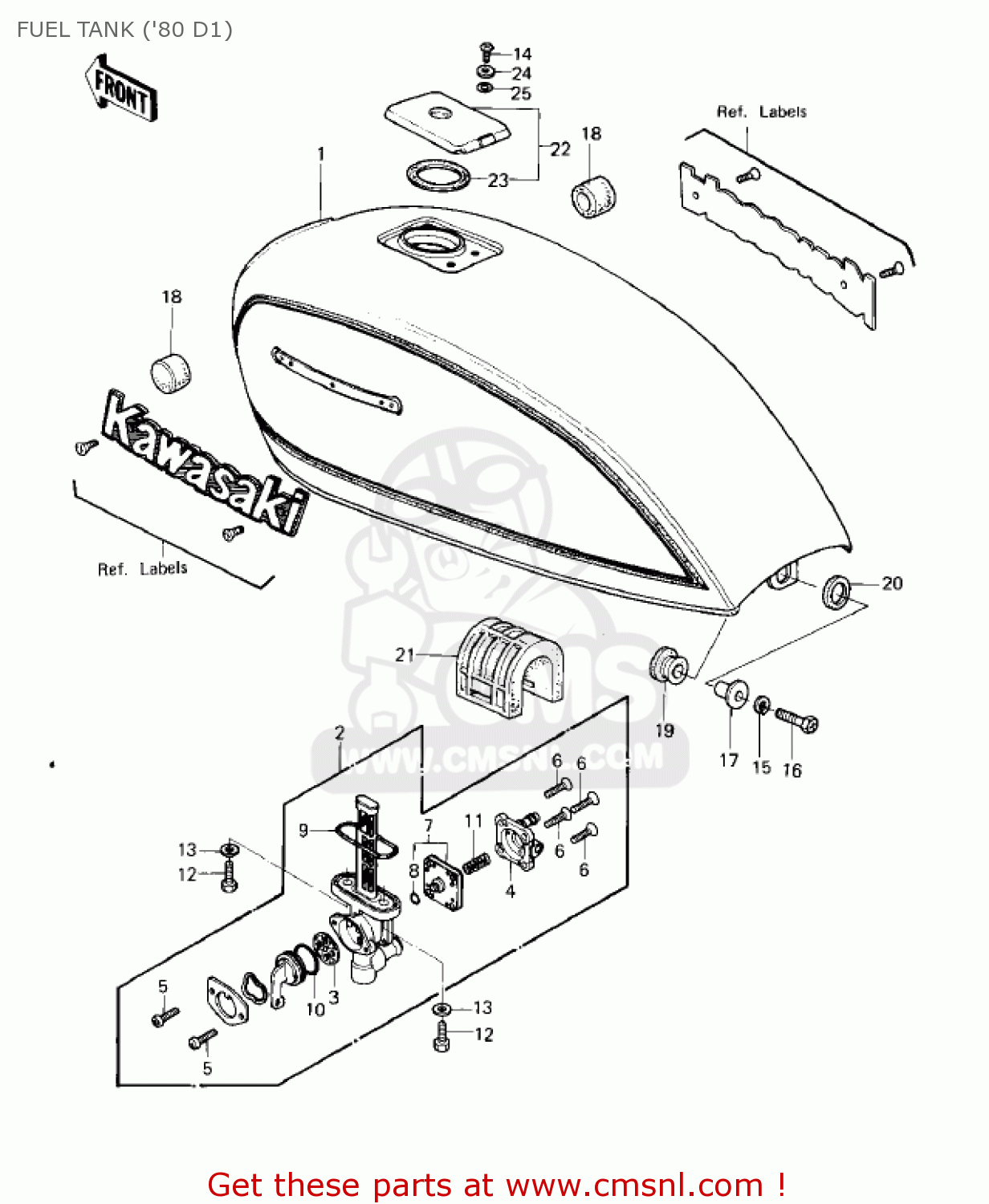

Fuel tank ('80 d1) diagram KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

FUEL TANK ('80 D1) KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

FUEL TANK ('80 D1) KZ440D2 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

5100110268G
ref: 1

TANK,FUEL,EBONY

€ 610.00

1

510015049A5
ref: 1

TANK,FUEL,C.P.RED

€ 454.00

2

510231030
ref: 2

TAP ASSY,FUEL

€ 128.00

3

110091188
ref: 3

GASKET,TAP VALVE (NAS)

€ 4.00

4

161461009
ref: 4

COVER-ASSY,TAP DIAPHR

€ 12.50

5

220B0308
ref: 5

SCREW-PAN-CROS

€ 0.50

6

221B0414
ref: 6

SCREW-CSR-CROS,4X14

€ 2.50

7

430281021
ref: 7

DIAPHRAGM,TAP

€ 19.50

8

670B1504
ref: 8

O RING,4MM

€ 2.50

9

51039003
ref: 9

'O' RING

€ 4.00

10

920551085
ref: 10

'O' RING,FUEL TAP LEV

€ 3.00

11

920811240
ref: 11

SPRING,DIAPHRAGM VLV

€ 2.50

12

920011091
ref: 12

BOLT,6X20,FUEL TAP

€ 2.50

13

92022183
ref: 13

WASHER,6.2X11X1.5

€ 2.50

14

220B0510
ref: 14

SCREW-PAN-CROS,5X10

€ 0.50

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

920011284
ref: 16

BOLT,HEX HEAD,6X25

€ 3.00

17

92027251
ref: 17

COLLAR,L=13.1

€ 1.00

18

92075101
ref: 18

DAMPER RUBBER-FL TANK

€ 4.00

19

92075174
ref: 19

DAMPER,MALE

€ 3.00

20

92075175
ref: 20

DAMPER,FEMALE

€ 2.50

21

92075284
ref: 21

DAMPER,FUEL TANK

€ 12.50

22

510481018
ref: 22

CAP-ASSY-TANK

€ 75.50

23

110091051
ref: 23

GASKET,FUEL TANK CAP (NAS)

€ 7.00

24

920221038
ref: 24

WASHER,PLAIN

€ 2.50

25

920551023
ref: 25

ORING

€ 2.50
