SEAT ('80 D1)

KZ440D1 LTD 1980 USA CANADA / BELT DRIVE

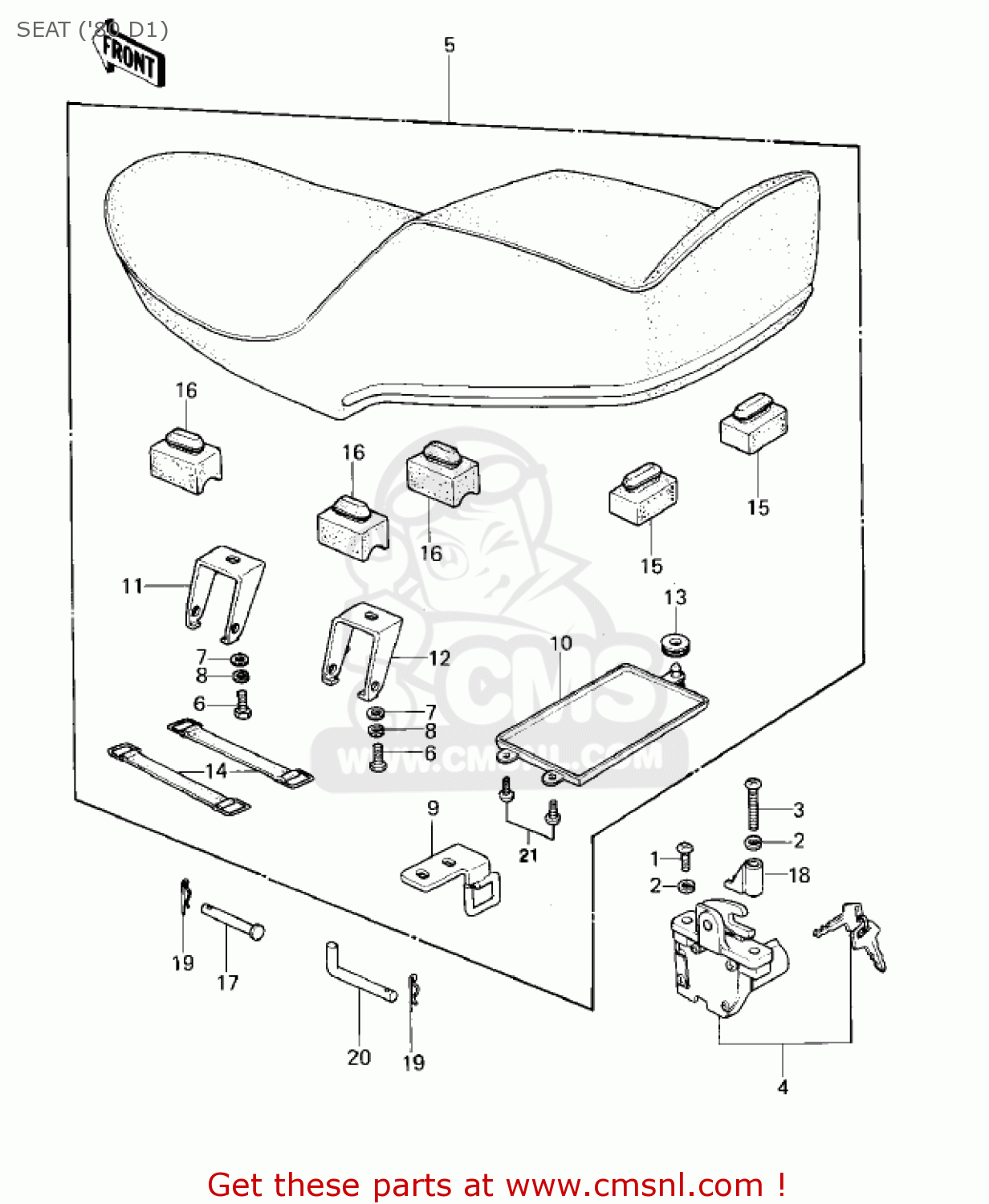

Seat ('80 d1) diagram KZ440D1 LTD 1980 USA CANADA / BELT DRIVE

SEAT ('80 D1) KZ440D1 LTD 1980 USA CANADA / BELT DRIVE

SEAT ('80 D1) KZ440D1 LTD 1980 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

220B0612
ref: 1

SCREW-PAN HEAD,6X12

€ 1.00

2

461F0600
ref: 2

WASHER-SPRING,6MM

€ 0.50

3

220B0635
ref: 3

SCREW-PAN HEAD,6X35

€ 1.00

4

270165028
ref: 4

LOCK-ASSY,SEAT&HELMET

€ 60.00

5

530011124
ref: 5

SEAT ASSEMBLY,DUAL

€ 354.50

6

112B0614
ref: 6

BOLT-UPSET 6X14

€ 2.50

7

411B0600
ref: 7

WASHER-PLAIN,6MM

€ 0.50

8

461F0600
ref: 8

WASHER-SPRING,6MM

€ 0.50

9

270121011
ref: 9

HOOK,SEAT

€ 10.50

10

32099011
ref: 10

CASE,MANUAL

€ 11.50

11

53009026
ref: 11

HINGE,SEAT

€ 8.50

12

530091017
ref: 12

HINGE,SEAT,REAR

€ 8.50

13

92071056
ref: 13

GROMMET

€ 2.50

14

920721006
ref: 14

BAND,L=64

€ 9.00

15

92075099
ref: 15

DAMPER RUBBER

€ 3.50

16

92075156
ref: 16

DAMPER,SEAT

€ 6.50

17

53011006
ref: 17

PIN,DUAL SEAT,PIVOT

€ 3.00

18

550201031
ref: 18

GUARD,SEAT LOCK

€ 3.00

19

554A0600
ref: 19

PIN-SNAP,SIDE STAND

€ 0.50

20

920431064
ref: 20

PIN,SEAT PIVOT

€ 3.50

21

920091043
ref: 21

SCREW,TAPPING,5X8

€ 3.00
