GENERATOR/REGULATOR ('80 D1)

KZ440D1 LTD 1980 USA CANADA / BELT DRIVE

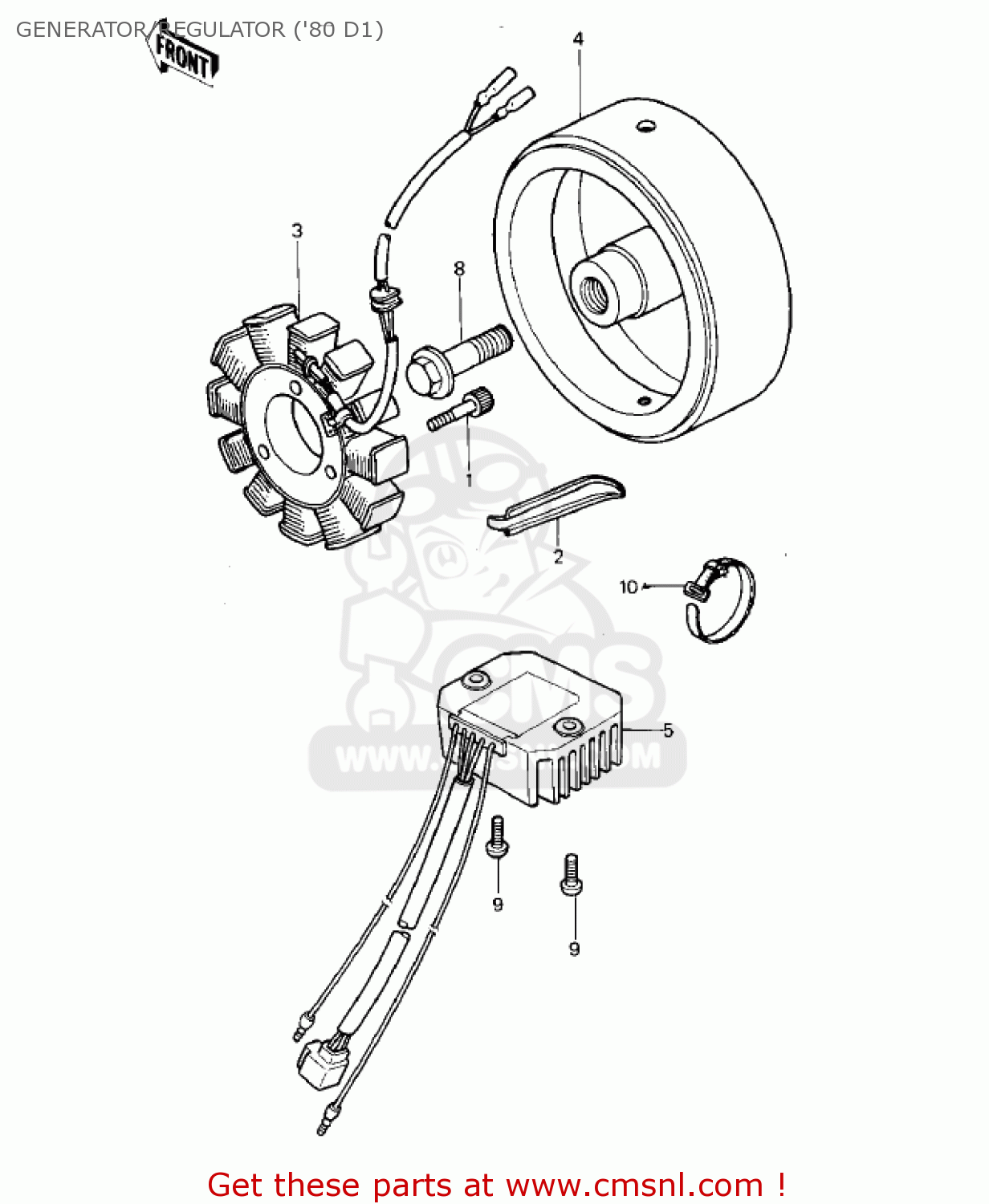

Generator/regulator ('80 d1) diagram KZ440D1 LTD 1980 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

120P0628
ref: 1

BOLT,ALLEN,6X28

€ 3.00

131691008
ref: 2

PLATE,LEAD CLAMP

€ 2.00

210031009
ref: 3

STATOR ASSY,GENERATER

€ 332.50

210501004
ref: 4

FLYWHEEL,GENERATOR

€ 560.50

210661014
ref: 5

REGULATOR-VOLTAGE

€ 170.50

21126008
ref: 6

CLAMP,WIRING HARNESS

€ 3.00

220B0610
ref: 7

SCREW-PAN HEAD,6X10

€ 2.00

920021303
ref: 8

BOLT,10X40

€ 9.50

220B0614
ref: 9

SCREW-PAN HEAD,6X14

€ 2.00

92072030
ref: 10

BAND,SHORT

€ 3.00
