HEADLIGHT ('80 D1)

KZ440D1 LTD 1980 USA CANADA / BELT DRIVE

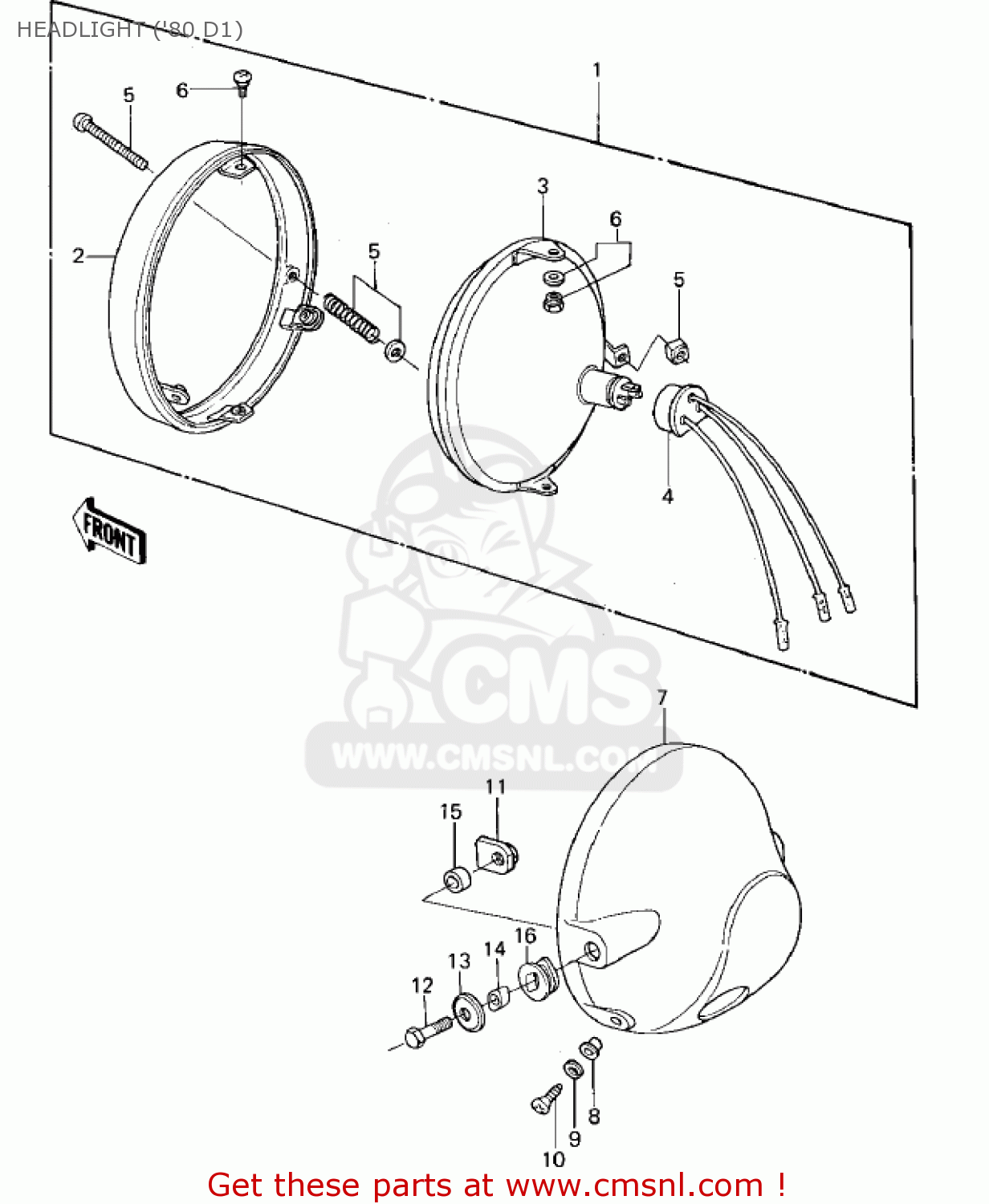

Headlight ('80 d1) diagram KZ440D1 LTD 1980 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

23003022
ref: 1

LAMP-HEAD

€ 332.50

23006044
ref: 2

RIM-LAMP

€ 65.50

23007059
ref: 3

LENS-COMP,001-1269 MA

€ 75.00

23008037
ref: 4

SOCKET-ASSY,HEAD LAMP

€ 12.50

23013008
ref: 5

FOCUS ADJUSTING SCREW ASSEMBLY

€ 37.50

23013009
ref: 6

LENS UNIT SCREW ASSEMBLY

€ 28.50

2300504721
ref: 7

BODY-COMP-HEAD LAMP,F

€ 85.50

23021010
ref: 8

WASHER

€ 2.50

461F0500
ref: 9

WASHER-SPRING,5MM

€ 0.50

92011024
ref: 10

SCREW-PAN HEAD,5MM

€ 2.00

23020021
ref: 11

NUT,10MM

€ 4.00

92007024
ref: 12

BOLT,10MM

€ 4.50

92022289
ref: 13

WASHER,PLAIN

€ 11.50

920271129
ref: 14

COLLAR,HEAD LAMP

€ 4.00

92027231
ref: 15

COLLAR,10.2X13.4X8.1

€ 4.50

92075128
ref: 16

DAMPER,LAMP

€ 3.50
