TRANSMISSION ('80 B1)
KZ440B1 1980 USA / MPH

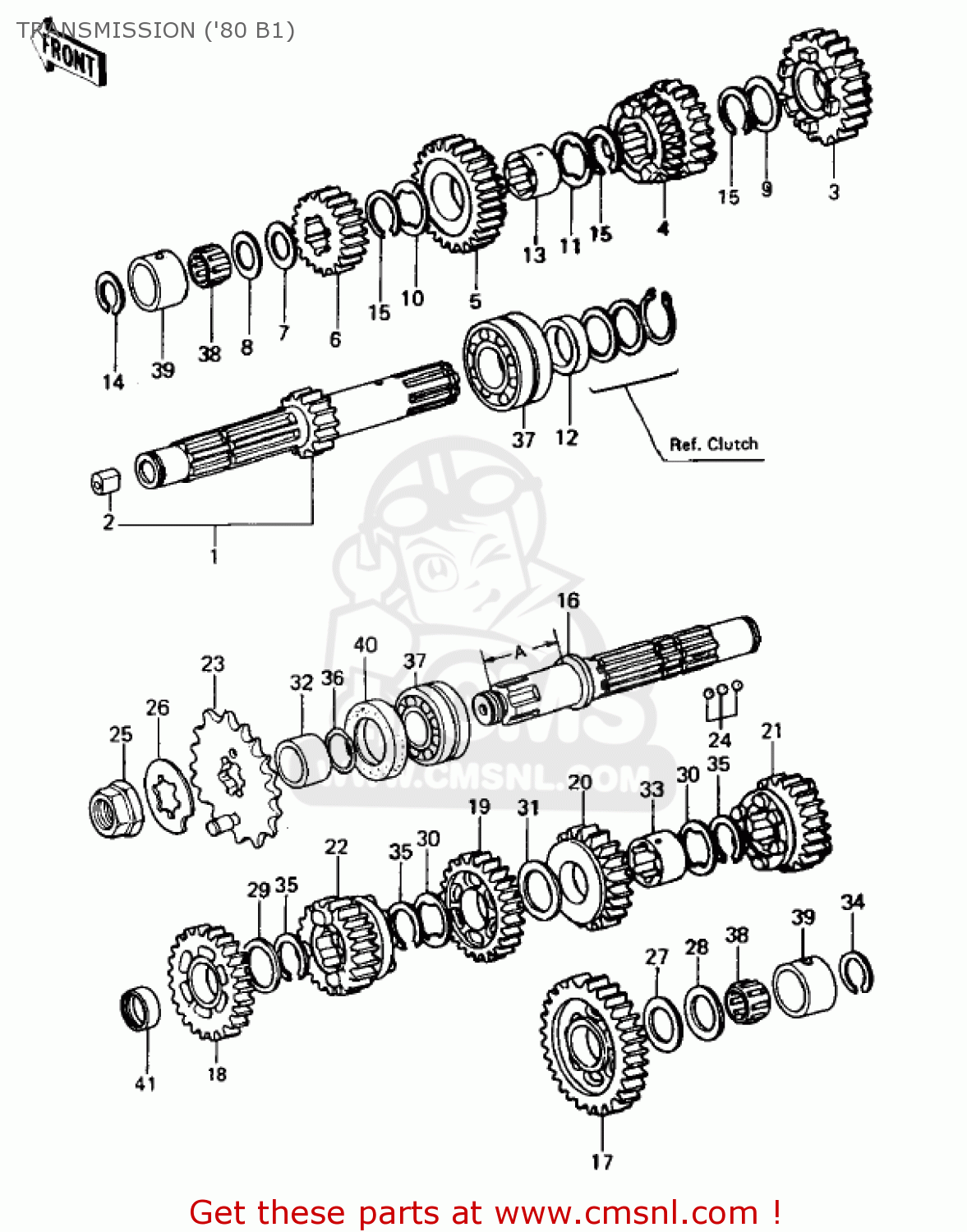

Transmission ('80 b1) diagram KZ440B1 1980 USA / MPH
TRANSMISSION ('80 B1) KZ440B1 1980 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
1
131271004
ref: 1
SHAFT,DRIVE,13T
€ 109.50
2
92028155
ref: 2
BUSHING,DRIVE SHAFT
€ 9.50
3
131291277
ref: 3
GEAR,INPUT5TH,23T
€ 67.00
4
131291054
ref: 4
3RD-4TH GEAR,DRIVE
€ 80.50
5
131291055
ref: 5
TOP GEAR,DRIVE SHAFT
€ 65.00
6
131291062
ref: 6
2ND GEAR,DRIVE SHAFT
€ 30.00
7
92022112
ref: 7
WASHER,20.5X30X1,STEE
€ 6.00
8
92022144
ref: 8
SHIM-KICK SHAFT
€ 4.50
9
92022159
ref: 9
WASHER-THRUST,25MM
€ 5.50
10
92024033
ref: 10
WASHER,TOOTHED,25.5X3
€ 4.50
11
92024038
ref: 11
WASHER-LOCK
€ 4.00
12
92027289
ref: 12
COLLAR
€ 10.00
13
920281002
ref: 13
BUSHING,TOP DRIVE
€ 26.00
14
92033015
ref: 14
CIRCLIP
€ 2.50
15
92033026
ref: 15
CIRCLIP
€ 6.00
16
131281015
ref: 16
SHAFT-TRANSMISSION OU
€ 256.50
17
131291056
ref: 17
LOW GEAR,OUTPUT SHAFT
€ 61.00
18
131291172
ref: 18
2ND GEAR,OUTPUT,28T
€ 56.00
19
131291058
ref: 19
3RD GEAR,OUTPUT SHAFT
€ 62.00
20
131291059
ref: 20
4TH GEAR OUTPUT
€ 47.50
21
131291060
ref: 21
5TH GEAR,OUTPUT SHAFT
€ 67.50
22
131291061
ref: 22
TOP GEAR,OUTPUT SHAFT
€ 40.00
23
131441003
ref: 23
ENGINE SPROCKET,15T
€ 28.00
24
600A0500
ref: 24
BALL-STEEL,5/32
€ 0.50
25
920151254
ref: 25
NUT,20MM
€ 10.50
26
920221083
ref: 26
WASHER,SPLINED
€ 4.00
27
92022112
ref: 27
WASHER,20.5X30X1,STEE
€ 6.00
28
92022144
ref: 28
SHIM-KICK SHAFT
€ 4.50
29
92022159
ref: 29
WASHER-THRUST,25MM
€ 5.50
30
92024038
ref: 30
WASHER-LOCK
€ 4.00
31
92026079
ref: 31
WASHER,30X38X1
€ 6.00
32
92027288
ref: 32
COLLAR,25X32X23.5
€ 22.50
33
920281268
ref: 33
BUSHING,OUTPUT GEAR
€ 21.00
34
92033015
ref: 34
CIRCLIP
€ 2.50
35
92033026
ref: 35
CIRCLIP
€ 6.00
36
92055035
ref: 36
O RING
€ 3.00
37
92045031
ref: 37
BEARING-BALL,5205ANX4
€ 49.50
38
92046044
ref: 38
BEARING-NEEDLE,20R251
€ 23.00
39
920481001
ref: 39
RACE,OUTPUT AND DRIVE
€ 13.00
40
92050024
ref: 40
OIL SEAL SC325210
€ 5.00
41
920281177
ref: 41
BUSHING,2ND GEAR
€ 10.00
