CLUTCH ('81 B2)
KZ440B1 1980 USA / MPH

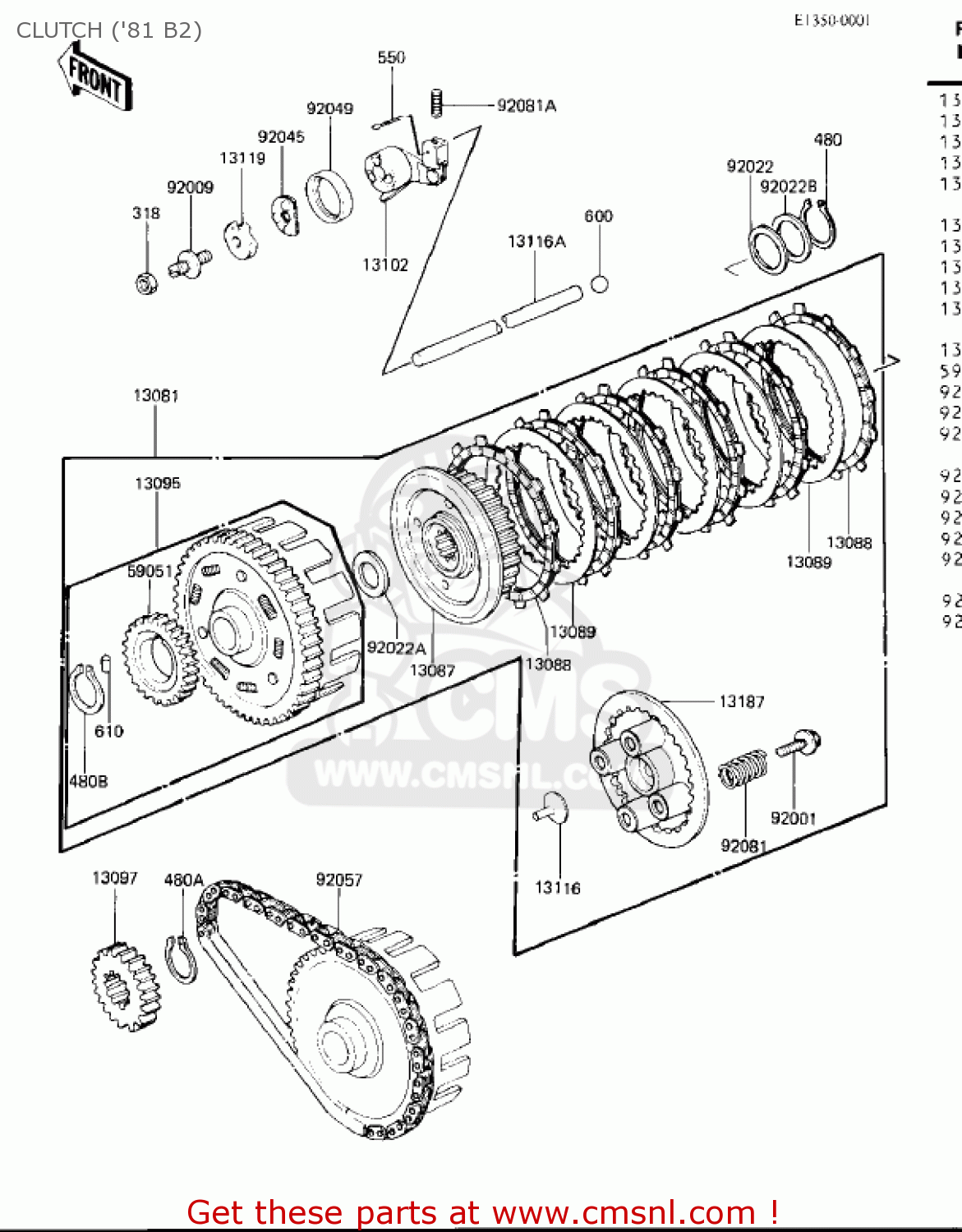

Clutch ('81 b2) diagram KZ440B1 1980 USA / MPH
CLUTCH ('81 B2) KZ440B1 1980 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
13081
130811019
ref: 13081
CLUTCH ASSY
€ 364.50
13087
13087040
ref: 13087
HUB,CLUTCH
€ 56.00
13088
130881001
ref: 13088
PLATE-FRICTION (NAS)
€ 11.50
13089
13089026
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 6.50
13095
130951008
ref: 13095
HOUSING-COMP-CLUTCH
€ 237.50
13097
13121030
ref: 13097
SPROCKET,PRIMARY
€ 38.50
13102
131021004
ref: 13102
RELEASE-COMP-CLUTCH
€ 46.00
13116
13116029
ref: 13116
ROD-PUSH,CLUTCH SPRIN
€ 18.00
13116A
131161017
ref: 13116A
ROD-PUSH,CLUTCH,7X250
€ 26.00
13119
131191003
ref: 13119
CAM-RELEASE,CLUTCH
€ 11.50
13187
131871003
ref: 13187
PLATE,CLUTCH OPERATNG
€ 35.50
59051
590511001
ref: 59051
GEAR OIL PUMP,34T
€ 32.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92009
920091009
ref: 92009
SCREW,SLOTTED,8M/M
€ 2.50
92022
92022225
ref: 92022
WASHER-THRUST
€ 3.50
92022A
92022288
ref: 92022A
WASHER,CLUTCH THRUST
€ 9.00
92022B
92022302
ref: 92022B
WASHER,CLUTCH THRUST
€ 3.50
92045
920451001
ref: 92045
BEARING,B.CLUTCH
€ 8.00
92049
920491003
ref: 92049
OIL SEAL,CLUTCH
€ 8.00
92057
13122005A
ref: 92057
CHAIN,63-139X74L(TUBA
€ 208.00
92081
920811033
ref: 92081
SPRING,CLUTCH
€ 6.50
92081A
920811058
ref: 92081A
SPRING,CLUTCH RETURN
€ 4.50
318
318B0800
ref: 318
NUT,8MM
€ 0.50
480
480J2400
ref: 480
CIRCLIP-TYPE-C,24MM
€ 3.50
480A
480J3000
ref: 480A
CIRCLIP-TYPE-C,30MM
€ 3.50
480B
480J3800
ref: 480B
CIRCLIP-TYPE-C,38MM
€ 3.50
550
550D1615
ref: 550
PIN-COTTER,1.6X15
€ 1.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
610
610A0606
ref: 610
PIN,DOWEL,6X6
€ 1.50
