CHASSIS ELECTRICAL EQUIPMENT ('8
KZ440B1 1980 USA / MPH

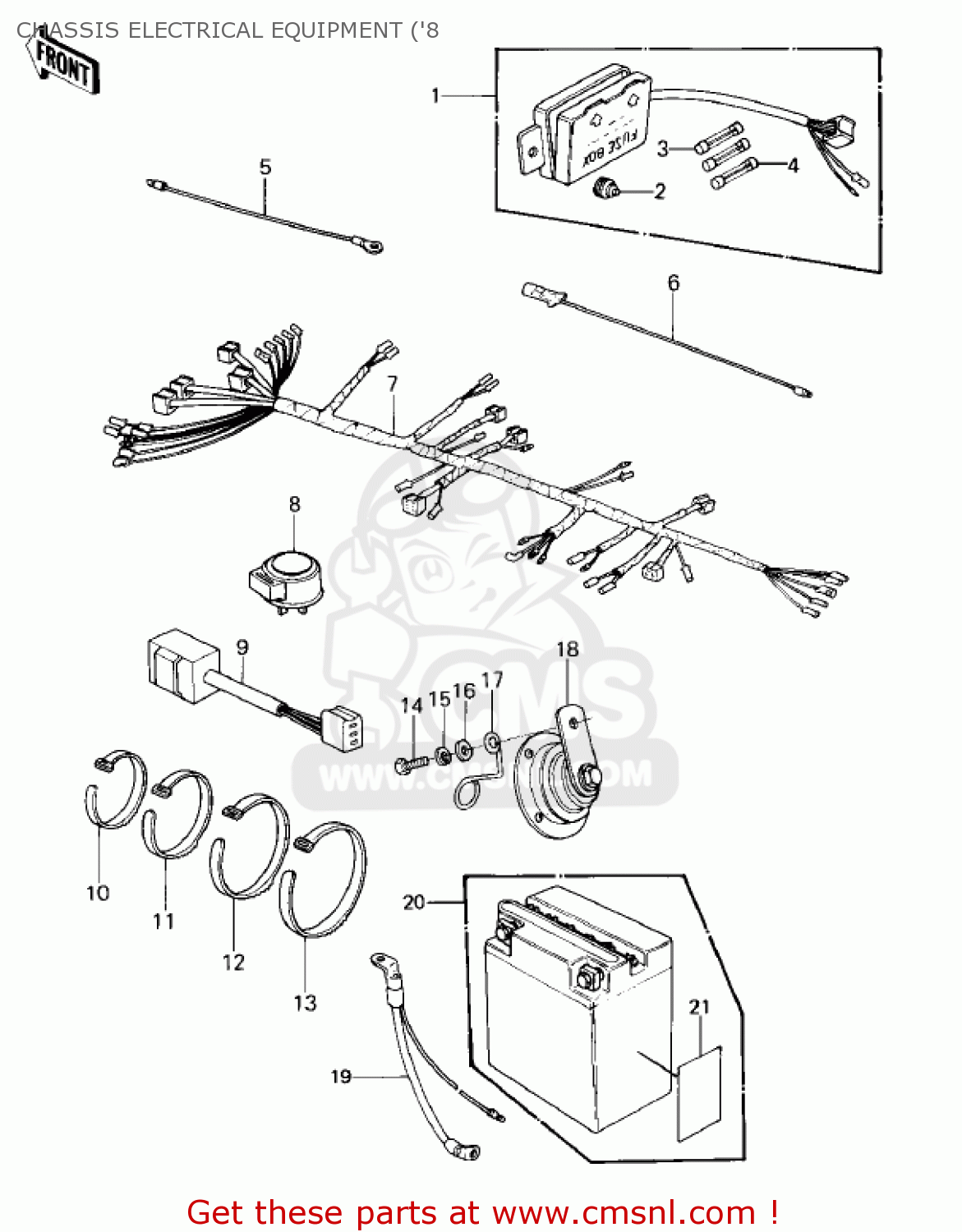

Chassis electrical equipment ('8 diagram KZ440B1 1980 USA / MPH
CHASSIS ELECTRICAL EQUIPMENT ('8 KZ440B1 1980 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
1
26004035
ref: 1
FUSE-ASSY
€ 53.50
2
92075279
ref: 2
DAMPER,FUSE
€ 3.50
3
26006005
ref: 3
FUSE 20A
€ 3.50
4
26006003
ref: 4
FUSE 10A
€ 3.00
5
26011063
ref: 5
WIRE-LEAD,L=185
€ 5.00
6
260111021
ref: 6
WIRE,LEAD,REAR SIGNAL
€ 1.50
7
260011128
ref: 7
HARNESS,MAIN
€ 227.00
8
27002011
ref: 8
RELAY-ASSY,TURN SIGNA
€ 69.50
9
28019002
ref: 9
SWITCH,BK LIGHT IND
€ 49.50
10
92072067
ref: 10
BAND,L=95
€ 2.50
11
92072030
ref: 11
BAND,SHORT
€ 3.00
12
92072031
ref: 12
BAND,MIDDLE
€ 3.00
13
92072032
ref: 13
BAND,LONG
€ 3.00
14
115G0820
ref: 14
BOLT,8X20
€ 2.00
15
461F0800
ref: 15
WASHER-SPRING,8MM
€ 0.50
16
410B0800
ref: 16
WASHER-PLAIN-SMALL,8M
€ 0.50
17
92037155
ref: 17
CLAMP,CABLE
€ 6.50
18
270031005
ref: 18
HORN
€ 44.00
19
260111022
ref: 19
WIRE-LEAD,BATTERY GRO
€ 16.00
20
260121004
ref: 20
BATTERY 12V 12AH
€ 97.00
21
560401036
ref: 21
WARNING, BATTERY
€ 2.00
